Winter Storage of Batteries

Battery companies are not responsible for battery
damage, either in winter storage or in dealer stock,
if the following instructions are not observed:
1. Remove battery from its installation as soon as
possible and remove all grease, sulfate and dirt
from top surface by running water over top of bat-
tery. Be sure, however, that vent caps are tight
beforehand, and blow off all excess water thor-
oughly with compressed air. Check water level,
making sure that plates are covered.
2. When adding distilled water to battery, be ex-
tremely careful not to fill more than 3/16" (4.8mm)
over plate inside battery. Battery solution or elec-
trolyte expands from heat caused by charging.
Overfilling battery will cause electrolyte to over-
flow (if filled beyond 3/16" (4.8 mm) over plate).
3. Grease terminal bolts well with Quicksilver 2-4-C
Marine Lubricant, and store battery in COOL-
DRY place. Remove battery from storage every
30-45 days, check water level (add water if nec-
essary), and put on charge for 5 or 6 hours at 6
amperes. DO NOT FAST CHARGE.
4. If specific gravity drops below 1.240, check bat-
tery for reason, and then recharge. When gravity
reaches 1.260, discontinue charging. To check
specific gravity, use a hydrometer, which can be
purchased locally.
5. Repeat preceding charging procedure every
30-45 days, as long as battery is in storage.
When ready to place battery back in service, re-
move excess grease from terminals (a small
amount is desirable on terminals at all times), re-
charge again as necessary and re-install battery.
WARNING
Hydrogen and oxygen gases are produced dur-
ing normal battery operation or charging. Sparks
or flame can cause this mixture to ignite and ex-
plode if they are brought near the battery. Sulfu-
ric acid in battery can cause serious burns, if
spilled on skin or in eyes. Flush or wash away im-
mediately with clear water.
2B-6 - ELECTRICAL
Battery Charging System
Troubleshooting
Description
The battery charging system components are the
stator, voltage regulator/rectifier and the battery.
Alternating current is generated in the stator alterna-
tor coils and flows to the regulator/rectifier. The recti-
fier changes the alternating current to direct current
for charging the battery and the regulator senses bat-
tery voltage and allows the correct amount of direct
current to charge the battery.
The charging system may be damaged by:
a. Reversed battery cables.
b. Running the engine with battery cables dis-
connected and stator leads connected to reg-
ulator/rectifier.
c. Open circuit, such as a broken wire or loose
connection.
a
b

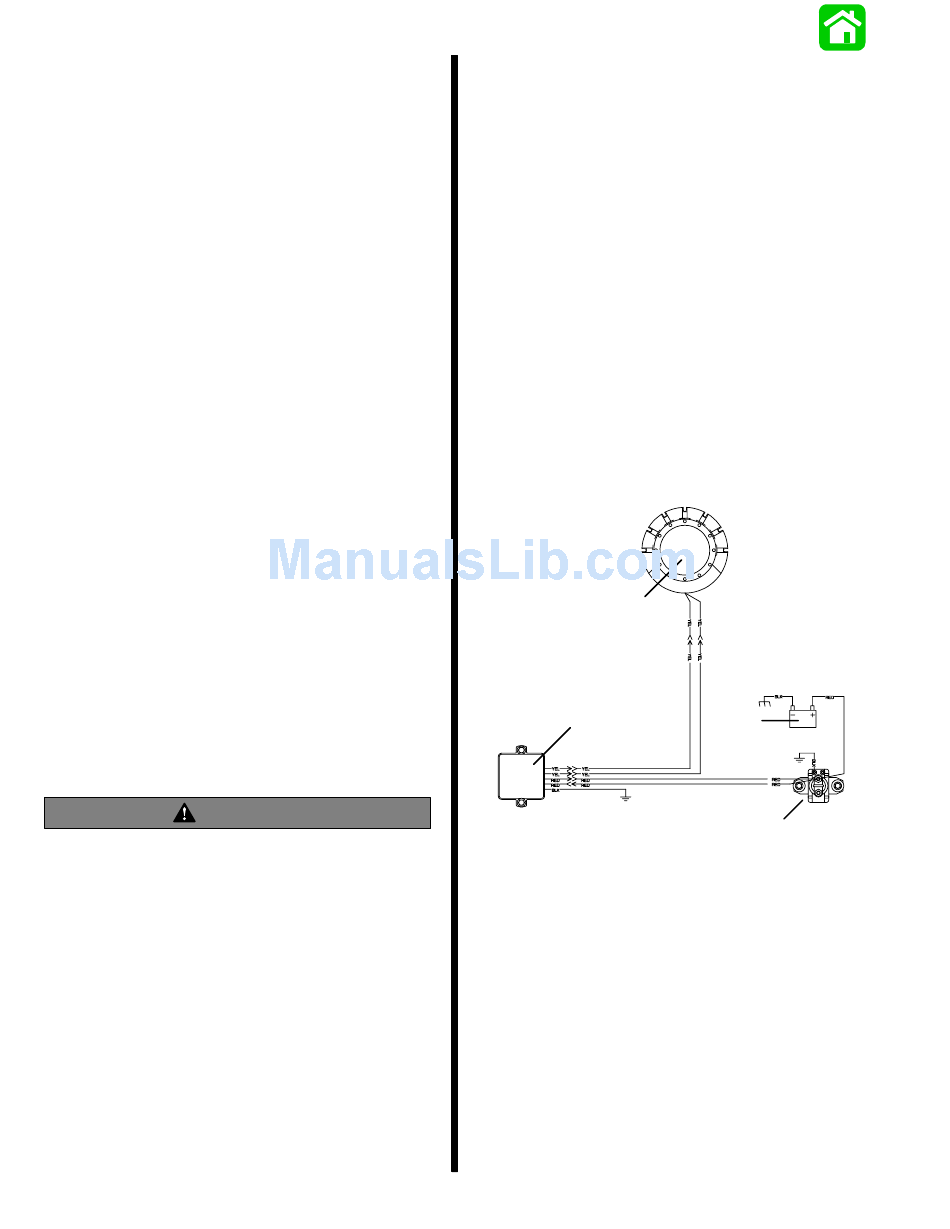

a - Stator
b - Voltage Regulator/Rectifier
c - Start Solenoid
d - 12V Battery
A fault in the battery charging system usually will
cause the battery to become undercharged. Check
battery electrolyte level, and charge battery. See
"Electrolyte Level", and "Charging a Discharged Bat-
tery".
If battery will not accept a satisfactory charge, re-
place battery.
If battery accepts a satisfactory charge, determine
the cause of the charging system problem as follows.
d
c
90-852572R1 JANUARY 1998
