3. THE AMP AT A GLANCE

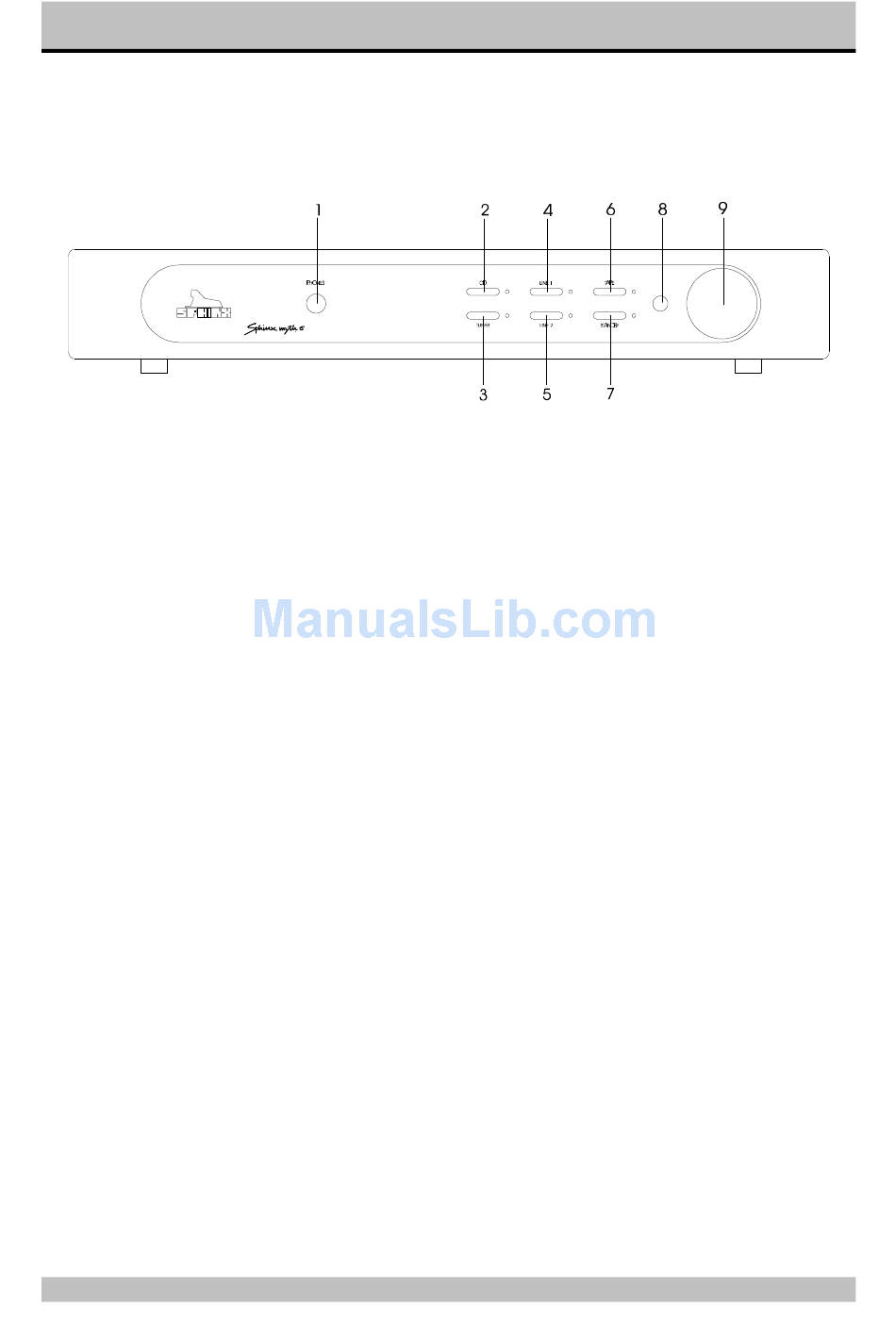

Front panel

1. PHONES: To connect dynamic stereo
headphones.
2. CD: To select the CD input.
3. TUNER: To select the TUNER input.
4. LINE 1: To select the LINE 1 input.
5. LINE 2: To select the LINE 2 input.
6. TAPE: To select the TAPE IN input.
As soon as you have pressed one of the buttons
2. to 6. the corresponding red LED next to it will
light.
Service Manual
7. STANDBY: To switch the component on and off.
When the component is 'off' (standby) this is
indicated by the red LED.
8. Sensor window for the IR signal from the
Remote Control.
9. VOLUME: With this motor-controlled knob you
may adjust the volume of the loudspeakers.
The volume can be controlled manually or via the
Remote Control.
