3. THE PRE-AMP AT A GLANCE

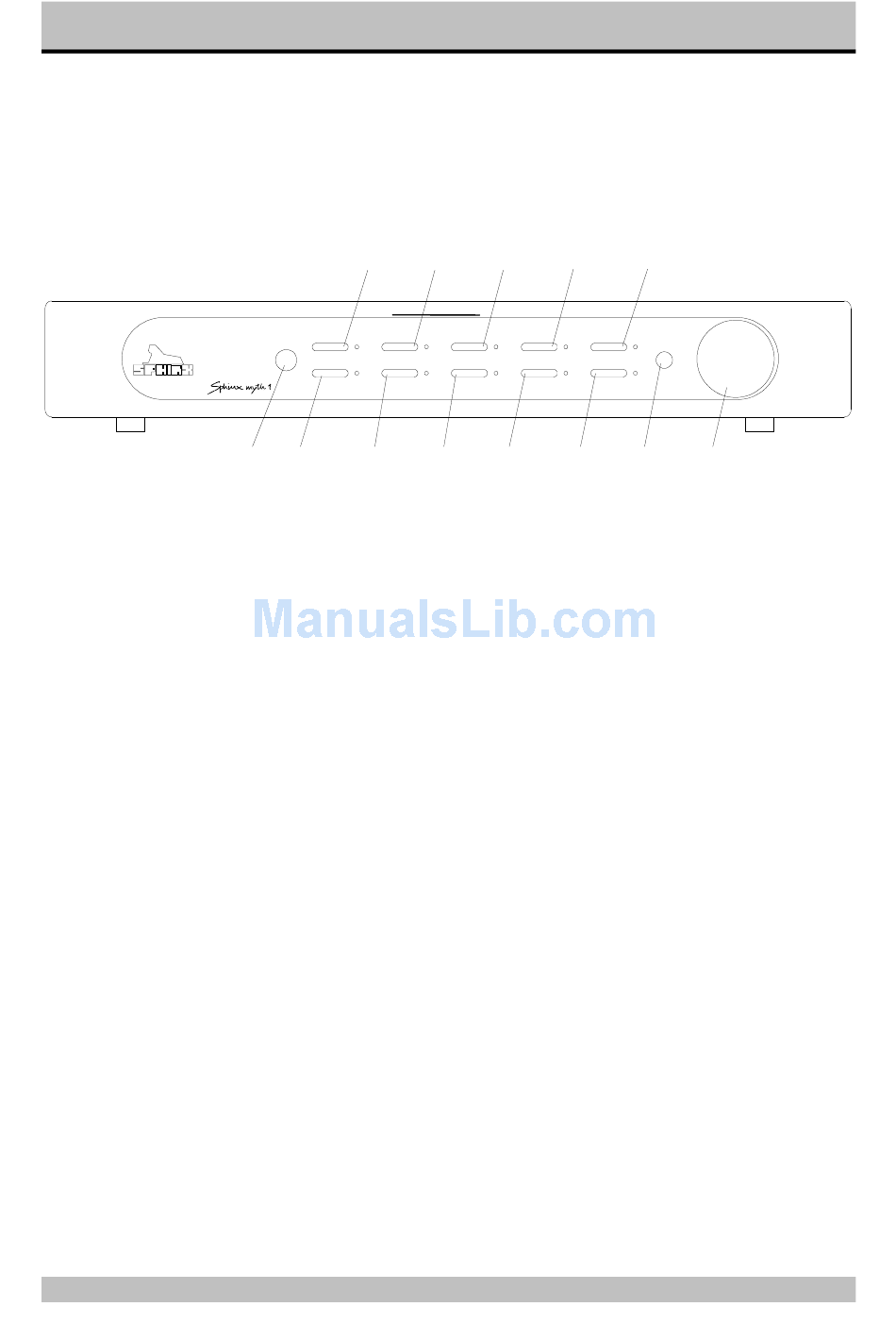

Front panel

1. CD: To select the CD input. The red LED will
light.
2. LINE 1: To select the Line 1 input. The red LED
will light.
3. LINE 3: To select the Line 3 input. The red LED
will light.
4. VIDEO: To select the Video line input. The red
LED will light.
5. MUTE: Press this button to temporarily mute
the sound. The red LED will light.
6. PHONES: To connect dynamic stereo
headphones.
7. TUNER: To select the Tuner input. The red
LED will light.
1
PHONES CD LINE 1
TUNER LINE 2
6 7 8
SPHINX
2 3 4
LINE 3 VIDEO MUTE
LINE 4 TAPE / MON STANDBY
9 10 11
8. LINE 2: To select the Line 2 input. The red LED
will light.
9. LINE 4: To select the Line 4 input. The red LED
will light.
10. TAPE / MON: To select the TAPE IN input. The
red LED will light.
11. STANDBY: To switch the component on and
off:
on
off
12. Receptor window for the IR signals from the
Remote Control.
13. VOLUME: This rotary knob adjusts the volume
level.
Myth 1
5
13
12
LED is off
LED is red
4
