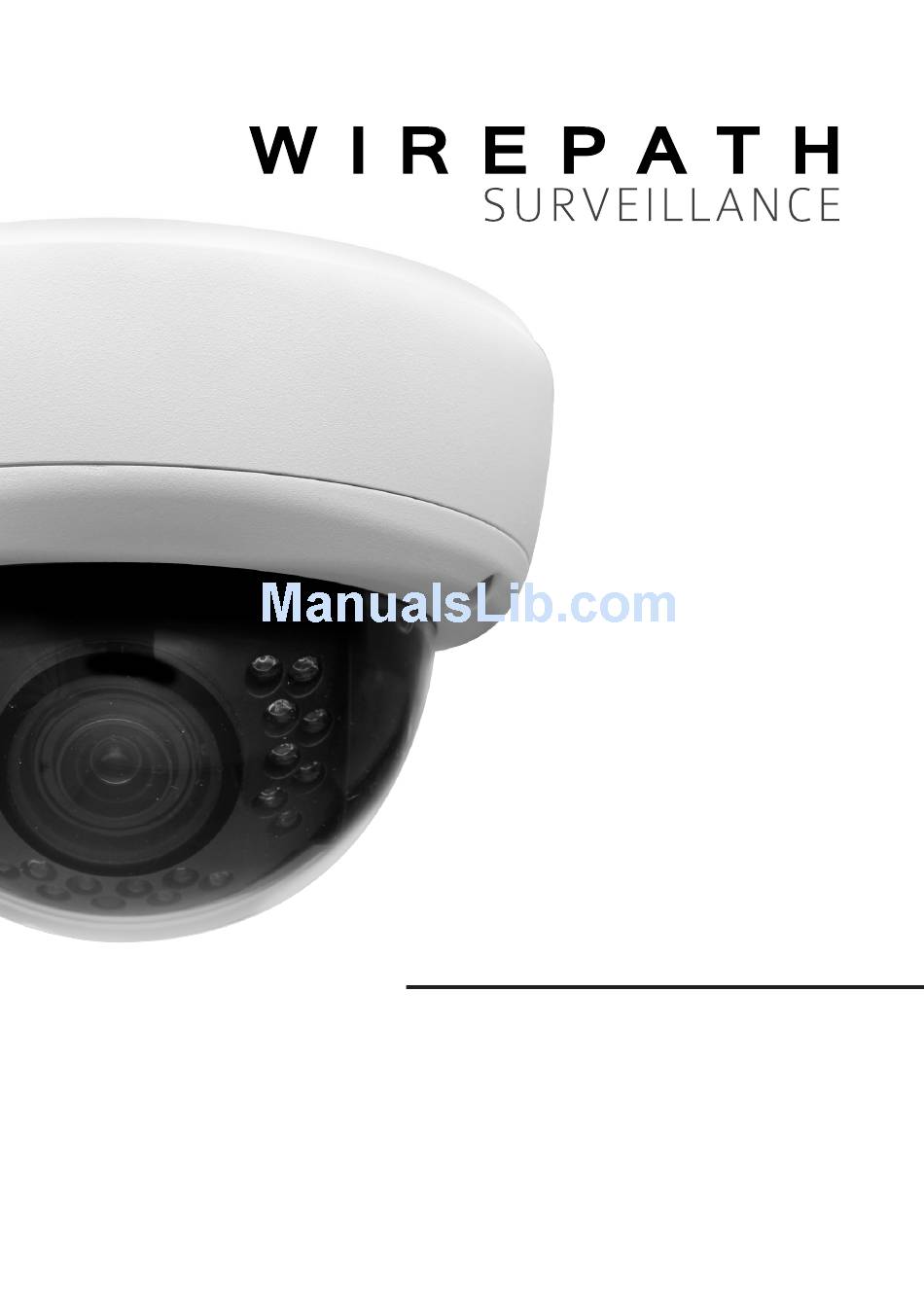

- Page 1 WPS-750-DOM-AH-WH WPS-750-DOM-AH-BL DOME CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 3: Table Of Contents
3.3 Exposure............... 16 3.4 Day/Night.............17 3.5 WDR/BLC/ECLPS..........18 3.6 White Balance............. 19 3.7 3D-DNR..............20 3.8 Effects..............21 3.9 Special..............22 3.10 Exit............... 25 RS485 System Diagram............... 26 Warranty....................26 Troubleshooting................. 27 Specifications.................. 3 0 Dimensions................... 31 © 2013 Wirepath Surveillance... -
Page 4: Safety Instructions
WPS-750-DOM-AH Installation Manual SAFETY INSTRUCTIONS This information is provided to ensure your safety and to prevent physical or financial loss. Please read this document carefully before installing and operating the camera. 1. Handle with care. Use caution when handling to avoid damage to sensitive internal components. 2. Do not install camera under extreme temperatures. This camera only operates under temperature conditions between -40˚F ~ 140˚F. *Operates to -40˚ when continually powered 3. -
Page 5: Features
A 3-axis gimbal provides a wide range of camera positioning angles through mechanical adjustment. • Weatherproof Housing The IP66-rated weatherproof housing makes this camera ideal for outdoor surveillance. • Video Test Port Adjust angle, zoom, and focus at the camera for fast and easy installation. © 2013 Wirepath Surveillance... -
Page 6: Package Contents
NOTE 2 : A Silica Gel package is mounted inside the dome housing. This package should remain inside the housing after installation. OPTIONAL ACCESSORIES Wirepath Surveillance offers a wide range of accessories that provide power to the cameras, allow for various mounting options, and make connection to the head end quick and easy. - Page 7 • WPS-BAL-VP Passive Video and Power Balun with RJ45 • WPS-ACC-GND-ISO Ground Loop Isolator Male to Female BNCs • WPS-BAL-VPA Passive Video, Power, Audio Balun with RJ45 • WPS-BAL-VPD Passive Video, Power, PTZ Balun with RJ45 © 2013 Wirepath Surveillance...
-
Page 8: Installation Instructions
WPS-750-DOM-AH Installation Manual INSTALLATION 1. Prepare Camera for Mounting Prior to mounting to the Camera, we recommend that the position and angles be preset in order to speed installation. These settings can be fine-tuned once the Camera is mounted. Important Note: To avoid damaging the dome surface during installation, keep the dome surface away from walls and other objects. - Page 9 B. Mounting to a Single gang Junction Box If using one of the optional Wirepath Mounts (see Optional Accessories). Follow the instructions in the manual that is supplied with the mount and then proceed to step 4. © 2013 Wirepath Surveillance...
- Page 10 WPS-750-DOM-AH Installation Manual 4. Fine-Tuning Camera Adjustments The camera is supplied with a OSD Joystick / BNC Test Adapter that allows for viewing the output of the camera on a monitor or the WPS- CCTV-TESTER (not included). Use this connection to adjust the camera directly from the installed location.
-
Page 11: Set-Up
AUTO, OFF, A. FLK, 1/160, 1/250, 1/500, 1/700, 1/1000, 1/1600/ 1/2500, 1/5000, 1/7000, 1/10000, 1/30000, 1/50000, 1/90000, X2, X3, X4, X5, X6, X8, X10, X12, X14, X16, X24, X32, X64, X128, X256, X512 SENSE-UP Auto, X2~X512 (Auto X8) INITIAL SET PREVIOUS © 2013 Wirepath Surveillance... - Page 12 WPS-750-DOM-AH Installation Manual OSD Menu Structure cont. (bold indicates factory preset) DAY/NIGHT HIGH, MIDDLE, LOW AUTO D/N LEVEL 1, 3, 5, 10, 15, 30 and 60SEC FILTER DLY NIGHT BURST ON, OFF INITIAL SET PREVIOUS IR MODE ON, OFF IR DEST 1~100 (32) PREVIOUS NIGHT...
- Page 13 ON, OFF OFF, MIRROR, V-FLIP, ROTATE D-EFFECT CONTRAST 0~100 (50) SHARPNESS 0~100 (50) COLOR COLOR ON, OFF ADJUST COLOR LEVEL 100 200 (100) 100 100 (0) COLOR HUE 100 100 (0) RED GAIN 100 100 (0) BLUE GAIN PREVIOUS INITIAL SET PREVIOUS © 2013 Wirepath Surveillance...
- Page 14 WPS-750-DOM-AH Installation Manual 1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000, SPECIAL ITS MODE SHUTTER 1/90,000, OFF, A.FLK, 1/160, 1/250, 1/500, 1/700, 1/1000 OFF, LOW, MIDDLE, HIGH LICENSE PLATE CONTRAST 0 ~100 (50) PREVIOUS OUTPUT LEVEL 64 ~64 (0) TONE 1 ~64 (0) PREVIOUS SHUTTER 1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000, NIGHT 1/90,000, OFF, A.FLK, 1/160, 1/250, 1/500, 1/700, 1/1000 OFF, LOW, MIDDLE, HIGH...
-
Page 15: Osd Menu Settings
Reaction speed determines the speed of the Auto Iris feature. • In MANUAL mode, the aperture is set fully open. This setting is only recommended for an environment with consistent lighting conditions. © 2013 Wirepath Surveillance... -
Page 16: Exposure
WPS-750-DOM-AH Installation Manual EXPOSURE <EXPOSURE> AGC (Auto Gain Control) Setup AGC mode automatically amplifies the HIGH SHUTTER AUTO video signal during low light conditions. SENSE-UP AUTO X8 INITIAL SET • Adjust the AGC by selecting OFF, LOW, PREVIOUS MIDDLE, or HIGH. Please note that signal noise is slightly higher when AGC is enabled. -
Page 17: Day/Night
- ON: The B/W image is actually a gray image and contains the color signal. - OFF: This is a true B/W image containing no color signal. • INITIAL SET: Returns the Day/Night Auto settings to factory default settings. • PREVIOUS: Return to the previous page. © 2013 Wirepath Surveillance... -
Page 18: Wdr/Blc/Eclps
WPS-750-DOM-AH Installation Manual EXT Setting <D/N EXT MENU> By selecting the EXT value in the Day/Night IR MODE Mode and pressing MENU, you can enter into IR DEST 32 -------|-------- PREVIOUS a subdirectory to adjust the IR WDR LEVEL and IR WDR DEST. •... -
Page 19: White Balance
• ATW (Auto Tracking White Balance): ATW analyzes the color temperature of the scene and automatically compensates to provide accurate white balance. • COL-ROLL: This feature is used when the scene includes fluorescent lighting and the camera has a moiré of colors in the image near the lights. © 2013 Wirepath Surveillance... -
Page 20: 3D-Dnr
WPS-750-DOM-AH Installation Manual • PUSH: This function is ideal for an environment with the predominance of a single color. For example, when used in a casino and the camera is pointed to a green table, the color would be inaccurate and the overall tone of the picture would be too red. -
Page 21: Effects
When increasing the contrast value, dark colors become darker and light colors become lighter. The value ranges from 0 to 100. SHARPNESS When increasing the sharpness value, the picture outline becomes stronger and clearer. The value ranges from 0 to 100. © 2013 Wirepath Surveillance... -
Page 22: Special
WPS-750-DOM-AH Installation Manual COLOR ADJUST Adjust the color of the image. INITIAL SET Return to factory default setting. PREVIOUS Return to previous page. SPECIAL ITS MODE Intelligent Traffic System Mode allows for setup of the camera in DAY and NIGHT modes to better see license plates in bright light conditions typically caused by car head lamps. - Page 23 Note: The Image Stabalizer function uses the digital zoom and will decrease the resolution of the camera. It is not recommend in low light or monochromatic settings. • ON: Enables the Image Stabilizer. •OFF: Disables the Image Stabilizer. © 2013 Wirepath Surveillance...
- Page 24 WPS-750-DOM-AH Installation Manual L/L SYNC Line Lock Sync is used to reduce picture “roll” when the camera is connected to an AC power supply and its picture is switched with other cameras on a monitor. MONITOR TYPE Select CRT or LCD based upon the type of monitor being used to view the camera.
-
Page 25: Exit
A. Replace the dome cover to the dome base, and make sure the Lens Rubber Gasket screws on the dome cover are tightened securely. Doing so seals the dome from the elements, and creates a tight fit around the rubber lens gasket to prevent the IR LEDs from reflecting into the lens. © 2013 Wirepath Surveillance... -
Page 26: Rs485 System Diagram
WPS-750-DOM-AH Installation Manual SYSTEM DIAGRAM RS485 Cable ID 1 Controller ID 2 ID 3 ID 4 ID 255 ID 0 WARRANTY 5-Year Limited Warranty This camera has a 5-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. -
Page 27: Troubleshooting
– 75 Ohm. • Reset the camera to factory default settings. Image appears blurry on the display • Check the focus of the lens. • Check the lens. If necessary, clean with a soft, clean cloth. • Check the camera iris and shutter settings. • Reset the camera to factory default settings. The camera is not working properly and the camera housing is hot • Check if camera is connected to the correct power source. © 2013 Wirepath Surveillance... - Page 28 WPS-750-DOM-AH Installation Manual The SENSE-UP function cannot be activated • Check if SHUTTER is set to OFF or other value. SENSE-UP function is only available when SHUTTER is set to AUTO. The DAY/NIGHT menu cannot be set to AUTO • Check if AGC is set to OFF. When AGC is OFF, AUTO cannot be activated. The 3D-DNR function cannot be set to ON • Check if AGC is set to OFF. When AGC is OFF, 3D-DNR cannot be activated.
- Page 29 • If the blue crystals have turned pink indicating that the pack has absorbed moisture, replace the pack with the spare provided with the camera. Camera Power Cycles Intermittently • C heck voltage at camera for proper voltage level. • Connect camera locally with a different power supply to test. © 2013 Wirepath Surveillance...
-
Page 30: Specifications
WPS-750-DOM-AH Installation Manual SPECIFICATIONS Imaging Image Sensor 1/3" Color Sony Super HAD II Lens 2.8 - 10mm Estimated Horizontal Viewing Angle 93.9° (3.7mm) ~ 33.4° (12mm) Resolution (TVLs) Effective Pixels NTSC: 768(H) x 494(V) Gamma 0.45 S/N Ratio More than 52dB (AGC Off) Sync Mode Internal Scanning System 2:1 Interlace... -
Page 31: Dimensions
WPS-750-DOM-AH Installation Manual DIMENSIONS 5.91" Maximum Camera Angle 4.04" Side View 67.0° 67.0° Top View © 2013 Wirepath Surveillance... - Page 32 130424-1555 © 2013 Wirepath Surveillance...
