Summary of Contents for Wirepath Surveillance WPS-700-BUL-A-GR

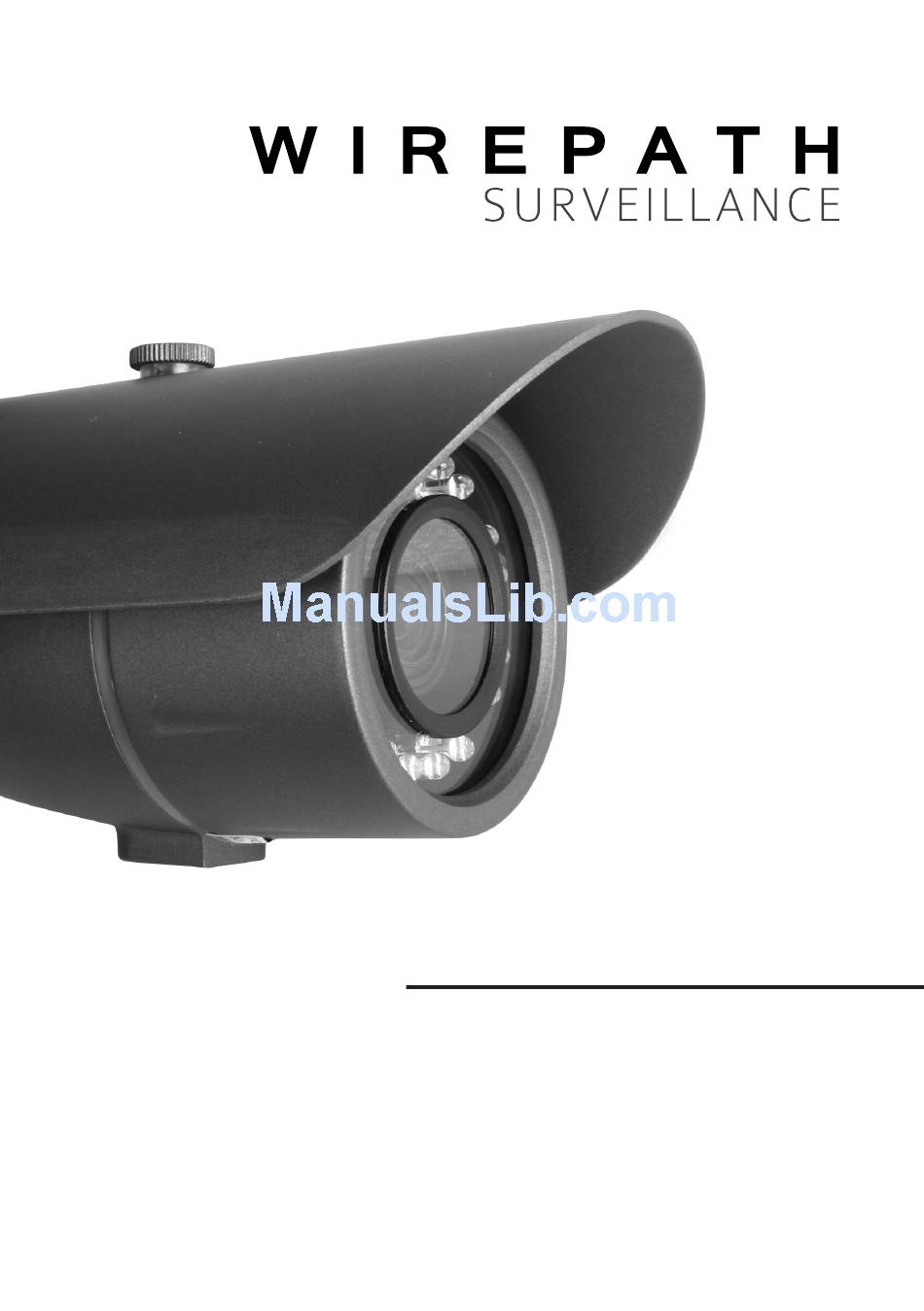

- Page 1 WPS-700-BUL-A-GR BULLET CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 3: Table Of Contents
WPS-700-BUL-A-GR Installation Manual CONTENTS Safety Instructions................4 Features....................5 Package Contents................6 Installation Instructions............... 6 Set-Up....................8 1. Operating The OSD Menu............. 8 2. OSD Menu Structure............... 8 3. OSD Menu Settings..............12 3.1 Camera Name Setting........12 3.2 Lens............... 12 3.3 Exposure............... -
Page 4: Safety Instructions
WPS-700-BUL-A-GR Installation Manual SAFETY INSTRUCTIONS This information is provided to ensure your safety and to prevent physical or financial loss. Please read this document carefully before installing and operating the camera. 1. Handle with care. Use caution when handling to avoid damage to sensitive internal components. 2. Do not install camera under extreme temperatures. -
Page 5: Features
WPS-700-BUL-A-GR Installation Manual FEATURES • 1/3” Sony Super-HAD II CCD The Sony Super HAD II CCD is ideal for low lux illumination resulting in a clear and crisp image. • Varifocal Auto-Iris Lens This camera features a varifocal lens with a focal length of 3.7-12 mm. -
Page 6: Package Contents
WPS-700-BUL-A-GR Installation Manual PACKAGE CONTENTS (1) Camera (1) AC/DC plug (3) Screws (3) Wall fasteners (1) 2.5mm Allen Key (1) Foam gasket Manual NOTE: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA. The PS-12DC-1A is recommended. INSTALLATION INSTRUCTIONS 1. Recommended cabling includes solid copper RG59 or RG6 for video, 18AWG two-conductor for power, and a CAT5 for RS485 control of the OSD. - Page 7 WPS-700-BUL-A-GR Installation Manual 3. Use the provided template on page 27 to pre-mark mounting hole locations. Position the camera base at the desired location and use the provided screws to attach the camera base to the wall or ceiling. 4. Using the supplied AC/DC plug,...
-
Page 8: Set-Up
WPS-700-BUL-A-GR Installation Manual SET-UP Operating the OSD Menu • To view the OSD, the camera must be connected to a display monitor. • The button found on the pigtail provides five OSD Menu separate actions: Button UP, DOWN, EXIT, ENTER and MENU. • Press the button to enter into the OSD MENU page. • Press UP, DOWN, EXIT (Left) or ENTER (Right) to select items on the menu and begin configuration. - Page 9 WPS-700-BUL-A-GR Installation Manual OSD Menu Structure cont. (bold indicates factory preset) DAY/NIGHT HIGH, MIDDLE, LOW AUTO D/N LEVEL 1, 3, 5, 10, 15, 30 and 60SEC FILTER DLY ON, OFF NIGHT BURST INITIAL SET PREVIOUS IR MODE ON, OFF IR DEST...
- Page 10 WPS-700-BUL-A-GR Installation Manual OSD Menu Structure cont. (bold indicates factory preset) WHITE BAL COL-ROLL PUSH MANUAL INDOOR, OUTDOOR COLOR TEMP -100~100 (0) BLUE -100~100 (0) INITIAL SET PREVIOUS ON, OFF DNR LEVEL 3D-DNR 1~100 (24) 0-63 (47) DESTINATION ON, OFF GLOBAL MOVEMENT PREVIOUS...
- Page 11 WPS-700-BUL-A-GR Installation Manual 1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000, SPECIAL ITS MODE SHUTTER 1/90,000, OFF, A.FLK, 1/160, 1/250, 1/500, 1/700, 1/1000 OFF, LOW, MIDDLE, HIGH LICENSE PLATE CONTRAST 0 ~100 (50) PREVIOUS OUTPUT LEVEL 64 ~64 (0) TONE 1 ~64 (0) PREVIOUS 1/1600, 1/2500, 1/5000, 1/7000, 1/10,000, 1/30,000, 1/50,000,...
-
Page 12: Osd Menu Settings
WPS-700-BUL-A-GR Installation Manual OSD MENU SETTINGS The camera menu allows for <MAIN MENU> the adjustment of settings to 1. CAM NAME obtain optimal image clarity 2. LENS DC IRIS and color realism. 3. EXPOSURE 4. DAY/NIGHT 5. WDR/BLC/ECLPS Note : If there is a “... -
Page 13: Exposure
WPS-700-BUL-A-GR Installation Manual EXPOSURE <EXPOSURE> AGC (Auto Gain Control) Setup AGC mode automatically amplifies the HIGH SHUTTER AUTO video signal during low light conditions. SENSE-UP AUTO X8 INITIAL SET • Adjust the AGC by selecting OFF, LOW, PREVIOUS MIDDLE, or HIGH. Please note that signal noise is slightly higher when AGC is enabled. -
Page 14: Day/Night
WPS-700-BUL-A-GR Installation Manual <MAIN MENU> DAY/NIGHT 1. CAM NAME 2. LENS DC IRIS 3. EXPOSURE • Set the DAY/NIGHT value to AUTO, 4. DAY/NIGHT 5. WDR/BLC/ECLPS DAY, NIGHT, or EXT based on the 6. WHITE BAL 7. 3D-DNR installation application. 8. EFFECTS 9.SPECIAL • DAY: The camera remains in color 0. -
Page 15: Wdr/Blc/Eclps
WPS-700-BUL-A-GR Installation Manual EXT Setting <D/N EXT MENU> By selecting the EXT value in the Day/Night IR MODE Mode and pressing MENU, you can enter into IR DEST 32 -------|-------- PREVIOUS a subdirectory to adjust the IR WDR LEVEL and IR WDR DEST. -
Page 16: White Balance
WPS-700-BUL-A-GR Installation Manual ECLIPSE Setting The ECLIPSE function is used to cut off exceptionally bright light, such as headlights of a vehicle. Zones and sensitivity can be < ECLIPSE MENU> adjusted based on the scene. AREA SETTING ALL AREA SET... -
Page 17: 3D-Dnr
WPS-700-BUL-A-GR Installation Manual • PUSH: This function is ideal for an environment with the predominance of a single color. For example, when used in a casino and the camera is pointed to a green table, the color would be inaccurate and the overall tone of the picture would be too red. -
Page 18: Effects
WPS-700-BUL-A-GR Installation Manual <3D-DNR MENU> DNR LEVEL 24 -----|----------- • DNR LEVEL: User-selectable from 1 to 100. DESTINATION 47 -----------|----- The higher the value, the more obvious GLOBAL MOVEMENT PREVIOUS DNR performance. • DESTINATION: User-selectable from 0 to 63. The higher the value, the brighter the image. -
Page 19: Special
WPS-700-BUL-A-GR Installation Manual COLOR ADJUST Adjust the color of the image. INITIAL SET Return to factory default setting. PREVIOUS Return to previous page. SPECIAL ITS MODE Intelligent Traffic System Mode allows for setup of the camera in DAY and NIGHT modes to better see license plates in bright light conditions ypically caused by car head lamps. - Page 20 WPS-700-BUL-A-GR Installation Manual PRIVACY MASK Setting <PRIVACY MASK MENU> Privacy Mask configuration allows for masking MASK NUMBER MASK 1 of up to 8 “surveillance-free” zones in the picture. MASK STATE MASK COLOR WIDTH 20 ---|---------- For example, this may be used for a camera HEIGHT 30 ------|------- that has a neighbor’s window in part of the...
- Page 21 WPS-700-BUL-A-GR Installation Manual L/L SYNC Line Lock Sync is used to reduce picture “roll” when the camera is connected to an AC power supply and its picture is switched with other cameras on a monitor. MONITOR TYPE Select CRT or LCD based upon the type of monitor being used to view the camera.
-
Page 22: Exit
WPS-700-BUL-A-GR Installation Manual - DISPLAY ID: Set DISPLAY ID to ON to display the CAMERA ID on the screen. This feature is useful when needing to know the ID of a camera simply by viewing a picture. - ID POSITION: Select the position for the CAMERA ID on the display screen by using the left and right arrows “”, “”... -
Page 23: Rs485 System Diagram
WPS-700-BUL-A-GR Installation Manual SYSTEM DIAGRAM RS485 Cable ID 1 ID 2 ID 3 ID 4 ID 255 Controller ID 0 WARRANTY 5-Year Limited Warranty This camera has a 5-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. -
Page 24: Troubleshooting
WPS-700-BUL-A-GR Installation Manual TROUBLESHOOTING If you have trouble operating the camera, first refer to the following guidelines. If the problem persists, contact Technical Support at 866.838.5052. Nothing appears on the display • Check if the power for camera and monitor is ON. • Check if the VIDEO cable is connected to the camera BNC video output jack. • Check if the VIDEO cable is connected to the monitor VIDEO input jack. Image appears dim on the display • Check the monitor contrast setting. • Check the monitor and camera brightness setting. • Check the camera exposure and shutter settings. • Check the lens. If necessary, clean with a soft, clean cloth. - Page 25 WPS-700-BUL-A-GR Installation Manual The SENSE-UP function cannot be activated • Check if SHUTTER is set to OFF or other value. SENSE-UP function is only available when SHUTTER is set to AUTO. The DAY/NIGHT menu cannot be set to AUTO • Check if AGC is set to OFF. When AGC is OFF, AUTO cannot be activated. The 3D-DNR function cannot be set to ON • Check if AGC is set to OFF. When AGC is OFF, 3D-DNR cannot be activated. The color of the picture is not correct • Check White Balance and Color (Red / Blue) settings. • Reset the camera to factory default settings. Screen flickers continuously • Check the camera location to make sure it is not pointing directly towards the sun or bright light source.
-
Page 26: Specifications
WPS-700-BUL-A-GR Installation Manual SPECIFICATIONS WPS-700-BUL-A-GR — True Day/Night Outdoor Varifocal Bullet Camera (650 TVL, SWDR) Image Sensor 1/3” Sony Super-HAD II CCD Effective Number of Pixels NTSC: 768(H) * 494(V) PAL: 752(H) * 582(V) Resolution Color: 650 TVL; B/W: 670 TVL Color: 0.03 Lux (50IRE, F1.2),... -
Page 27: Dimensions
WPS-700-BUL-A-GR Installation Manual DIMENSIONS 8.85” 1.52” 4.43” 10.48” 3.07” 2.68” 3.56” FRONT VIEW BOTTOM VIEW (ACTUAL SIZE) © 2012 Wirepath Surveillance... - Page 28 111002 © 2012 Wirepath Surveillance...
