Quick Start Guide

WPS-300-BUL-IP
IP Surveillance Cameras
IMPORTANT! BEFORE GOING TO JOB SITE:
Visit the Support Tab on the product page for this
camera at www.SnapAV.com. Download the latest
support files to your PC:
• Installation Manual
• IP Installer utility software
• Latest firmware (if available)
Contact the Tech Support team from the job site for help
with any part of setup:
Call: 866-838-5052
Email: TechSupport@SnapAV.com
Internet
Router
Gigabit Switch
HDMI
HDMI OUTPUT
RS-485 ALARM IN RELAY
VGA
1 2 3 4 5 6 7 8 NC C OM NO
12V DC 6A
INPUT
GND GND ETHERNET VGA OUTPUT
An NVR may be connected to the network for
recording and playback of camera footage
© 2014 Wirepath™ Surveillance Ver. 140718-1740

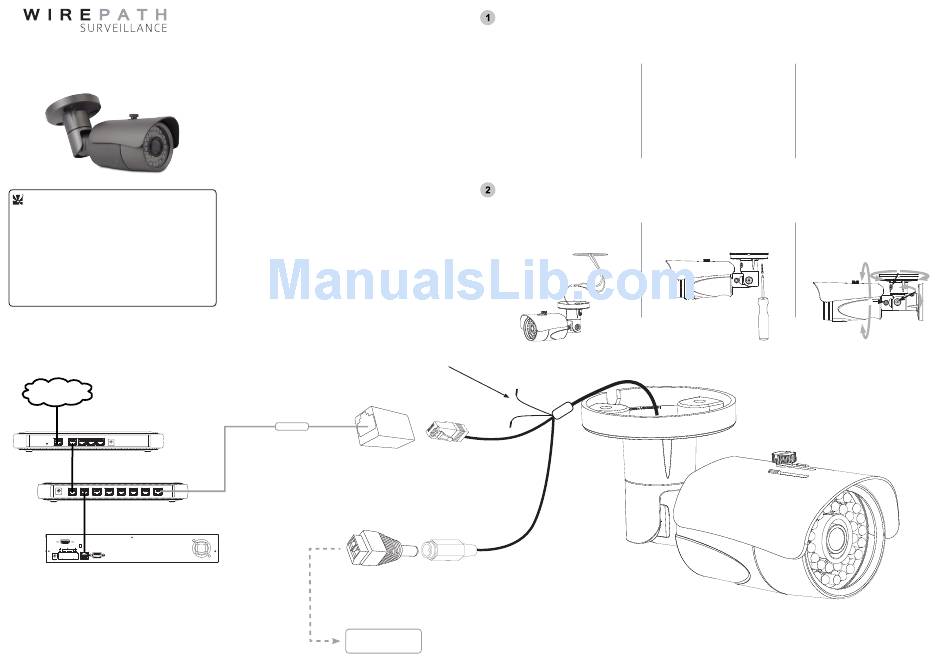

I. Hardware Setup
(See other side for software and network setup)
Thank you for purchasing a Wirepath™ IP Surveillance Camera. This
Quick Start Guide page shows the basics of installing the camera and
connecting to it from the local network.
Package Contents
• (1) WPS-300-BUL-IP Camera
• (1) WPS-ACC-PWR-M Power Adapter
• (1) Female-Female RJ45 Adapter
• (1) 3mm Allen key
• (4) Screws & Wall Anchors
• (1) Quick Start Guide
IMPORTANT! The reset wires must remain
separately insulated to avoid accidental resets.
See the manual for camera reset instructions.
Cat5e/6+
Female-to-Female
RJ45 Adapter
WPS-ACC-PWR-M
Power Adapter
12V DC Power Supply
(if PoE is not used)
Camera Cabling and Power
Install cabling between the camera and the LAN connection (and power source if not PoE powered)
Needed for this step: Cables and connectors as indicated below, tools and connectors for terminations
Cable recommendations:
Network Connection - The camera must PoE Power - If the network equipment
be connected to a LAN port using cable supports PoE standard IEEE 802.3af then
that meets TIA/EIA Category 5e standards. power can be provided on the Cat5e/6
Test the cable after termination if possible. connection.
Requirements for Network Cable: Requirements for PoE Equipped Port:
• •
Type: Cat5e/6+ ONLY Voltage: 44V DC
• Terminations: 568B recommended • Wattage: 15.4W
• •
Max Length: 100 meters (328 feet) Amperage: 350mA
Mounting and Adjustments
Needed for this step: 3mm Allen Wrench, Phillips screwdriver for mounting screws, or tools for accessory mount screws (if used)
a. Install an accessory mount over the b. Mount the camera using 3 of the 4
wiring (if applicable). Then connect included screws and anchors, or install
the camera to the wiring as seen in the the camera on the accessory mount.
diagram below. Make adjustments last.
12V DC Power - If PoE is not used, power
must be supplied using the external power
connector. The correct cable size must be
used to prevent voltage drop.
Requirements for Power Supply:
•
Voltage: 12V DC
• Wattage: 12W
•
Amperage: 1A
Aiming Adjustments
A. Horizontal rotation
B. Swivel left or right
C. Tilt viewing angle
B
C
A
