ECO REFERENCE MANUAL
Fitting of Accessory Filter (Frame Size 7,
IP56)
The installation procedure is as follows:-
1. Remove and discard the inverter input
terminal connector plate.
2. Remove the eight screws securing the
input terminal divider to the printed circuit
board.
3. Remove and discard the input terminal
divider.
4. Refit the eight screws in the board.
5. Fit the filter to the mounting studs.
6. Connect the output of the filter to the input
terminals of the inverter using the bus-bars
supplied with the drive.

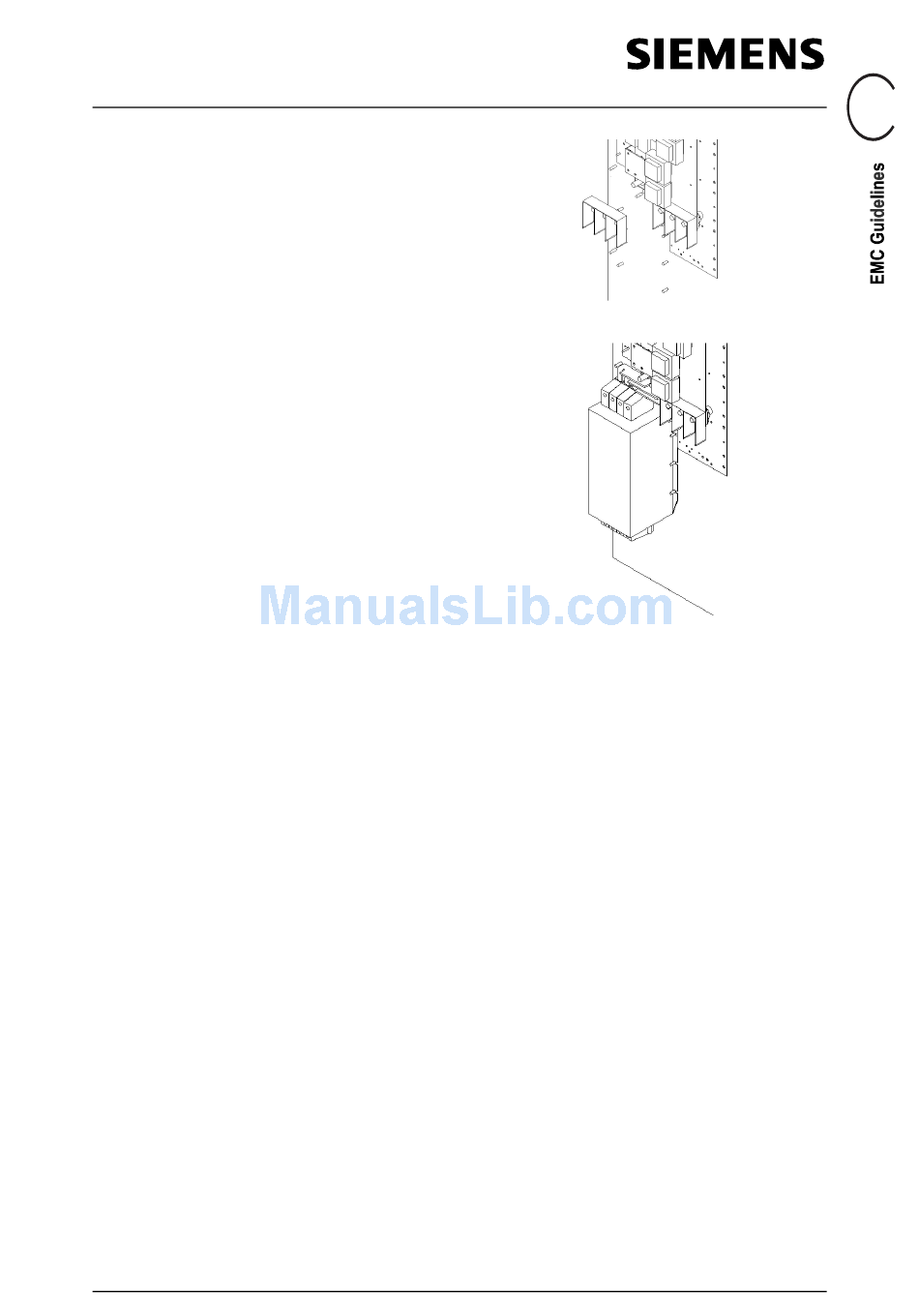

Filter mounted within the Frame Size 7 IP56
MIDIMASTER Eco
EMC
12-11
