Operating Instructions
Power On
1) Ensure that good batteries are installed.
2) Simultaneously press and hold the AUDIO
and FREQ buttons until the Power On Boot
Sequence is initiated (3 seconds).
Power Off
1) Simultaneously press and hold the AUDIO and
FREQ buttons while observing that the word
"Off" appears in the LCD along with a counter.
2) When the counter reaches "0", the unit turns off.
Note: If the AUDIO and FREQ buttons are
released before the end of the countdown, the unit will not turn off.
Standby Mode
From the "OFF" position, quickly press and release
both the AUDIO and FREQ buttons simultaneously
to enter and exit this mode. Allows the user to verify
or change the transmitter's operating frequency or
audio input level without transmitting any signals.
Selecting the Compatibility Mode and Power
SM Series transmitters will work with all Digital
Hybrid Wireless
orless mode. They are also capable of working with
200 Series, 100 Series and IFB analog receivers,
plus some other brands of analog wireless receiv-
ers (contact the factory for details).
Note: RF transmission is prevented while selecting Compatibility
Modes. Also, the SM exits the Compatibility Mode screen to Standby
Mode. (See Standby Mode, this section.)
Note: The unit comes from the factory configured as a 400 Series
transmitter.
1)
Set the receiver's audio controls to minimum.
2)
Power up the SM unit and observe the Boot Sequence. If the Compat-
ibility Mode for the SM unit does not match the corresponding receiver,
then power off the SM transmitter.
3)
From a power off condition, press and hold the Up arrow, then press the
AUDIO and FREQ buttons simultaneously.
4)
The LCD will display the current Compatibility Mode. Use the Up or
Down arrow buttons to set the Compatibility Mode to match the corre-
sponding receiver.
www.lectrosonics.com
receivers in the native, compand-
®

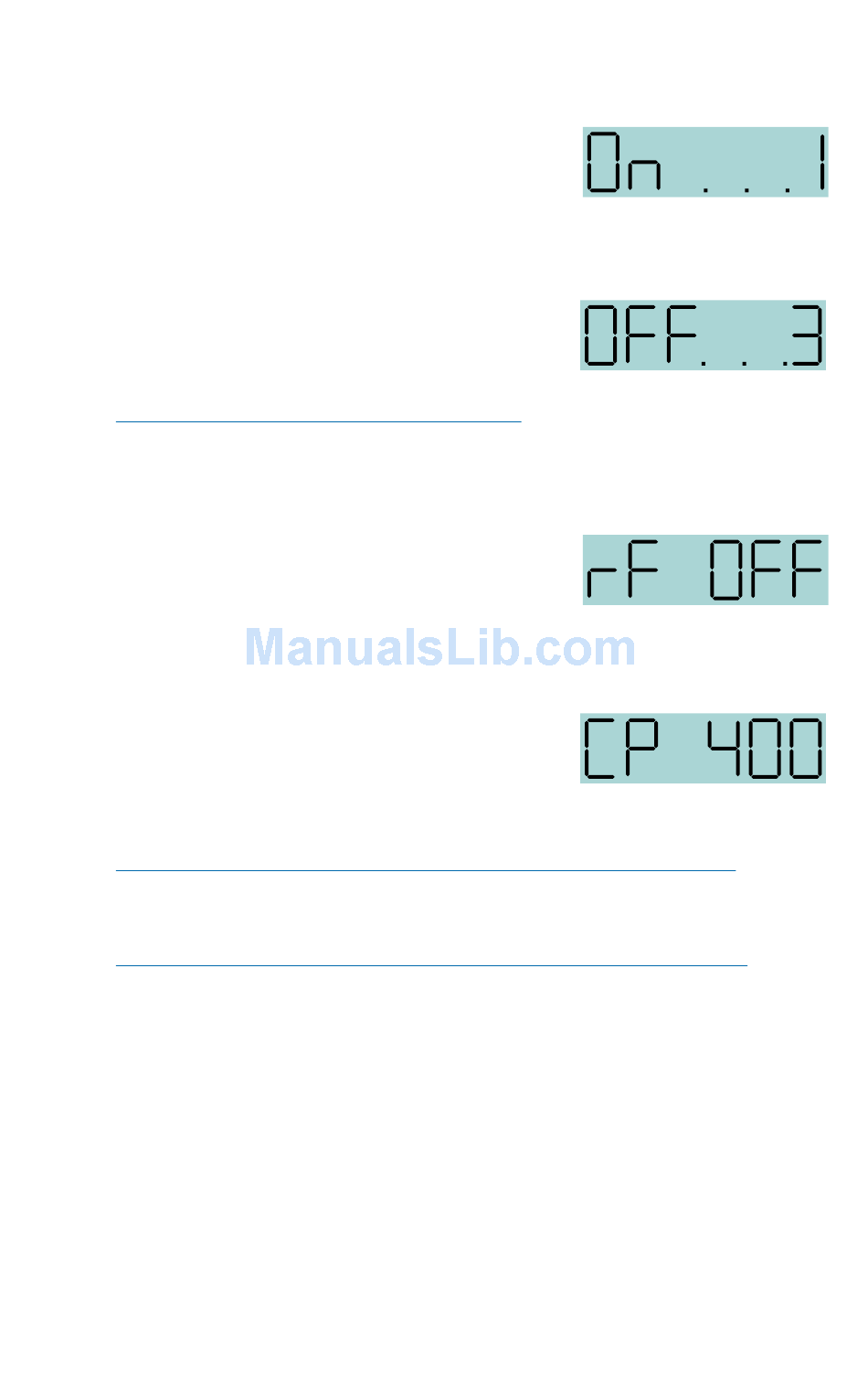

Initial Power On
