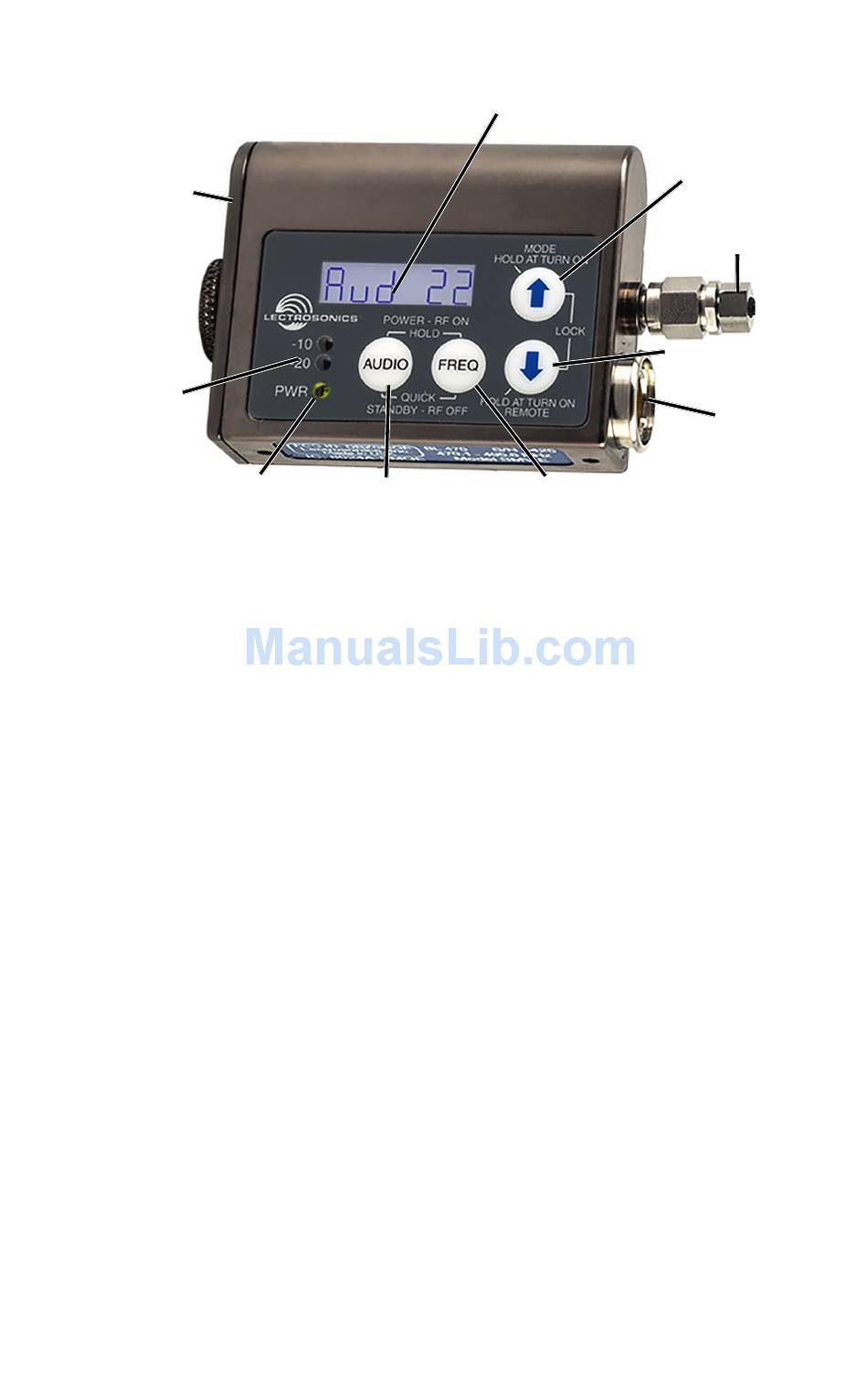

Controls and Functions

Battery
Compartment
Cover Plate
Battery
Compartment
Opener
Modulation
LEDs
LCD Screen
Used to display the status of the selected function.
Power LED
Indicates power status and battery strength.
Power LED Off Feature: In normal operating mode, the DOWN and UP
Arrow buttons may be used to turn the PWR LED indicators off and on.
This setting does not persist through a power cycle nor does it affect the
LCD backlight.
Audio Input Jack
Accommodates most lavaliere and dynamic microphones, and line level
signals.
Modulation LEDs
Provides a visual indication of the audio input signal level - either red or green
to indicate modulation levels.
Audio Button
Used to display the audio level setting (0 dB to 44 dB) on the LCD and used
with the Up and Down arrows to adjust the audio level input from the micro-
phone.
FREQ Button
Used to set the operating frequency and toggle the LCD between the operating
frequency in MHz and a two-digit hexadecimal frequency code.
Up/Down Arrows
Used to adjust the selected function or parameter.
Battery Compartment, Cover Plate and Opener
Used to install or remove battery/batteries.
2
Power LED AUDIO Button
LCD Screen
FREQ Button
(Tuning)
LECTROSONICS, INC.
UP Arrow
Antenna
DOWN Arrow
Audio
Input Jack
