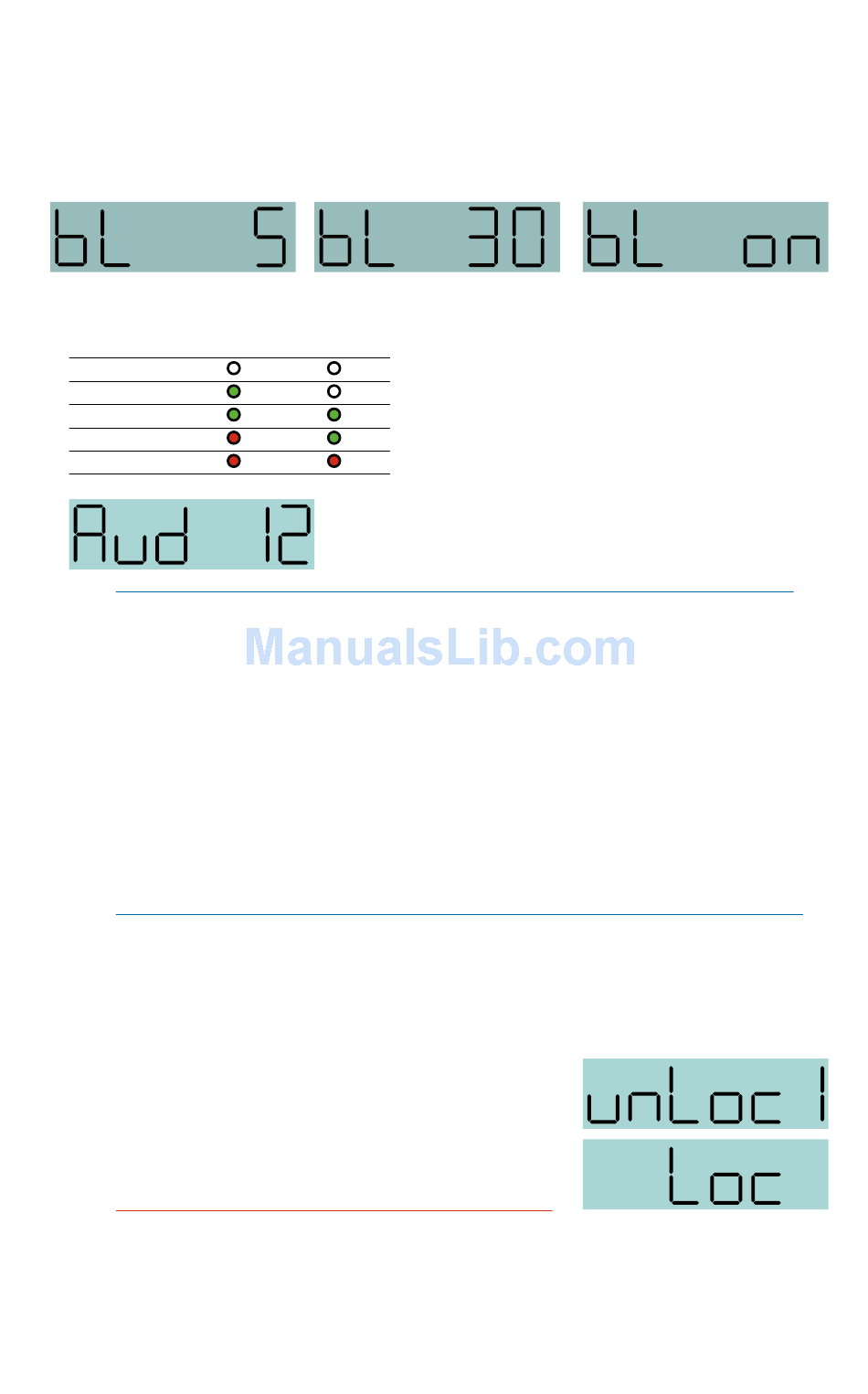

LCD Backlight Settings

The LCD backlight can be set to turn off after either 5 minutes or 30 seconds
or stay on continuously. Hold the UP arrow in while powering up the unit to
enter the setup screen. Press the AUDIO button repeatedly to step through
the setup items to reach the backlight settings screen. Use the UP or DOWN
arrow button to select the desired setting.
Adjusting Gain for Microphone and User
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
Note: If several different people will be using the transmitter and there
is not time to make the adjustment for each individual, adjust it for the
loudest voice.
1)
Attach the microphone and turn on the transmitter.
2) Position the microphone in the location where it will be used in actual
operation.
3)
Observe the audio level LEDs while speaking or singing into the micro-
phone at the same voice level that will be used during use. While holding
the AUDIO button, press the Up or Down arrow buttons until the both the
-20 and -10 LEDs glow green, with the -20 LED occasionally flickering
red (+0 dB to +10 dB range during peaks).
Note: Setting the audio level too high reduces the dynamic range of the
audio signal. Setting the audio level too low may cause hiss and noise
in the audio.

Locking or Unlocking the Control Panel

The Lock mode disables the buttons to prevent
accidental changes to the settings. After the setup
is complete, press and hold the UP and DOWN ar-
rows and observe the countdown timer on the LCD.
When the timer reaches zero, "Loc" is displayed
and the controls are locked.
Important: The only ways to unlock a locked
transmitter are to remove the battery or unlock it via the remote
control. The remote control function must be enable. The unit will
always power up in "unlocked" mode.
