Operating Instructions

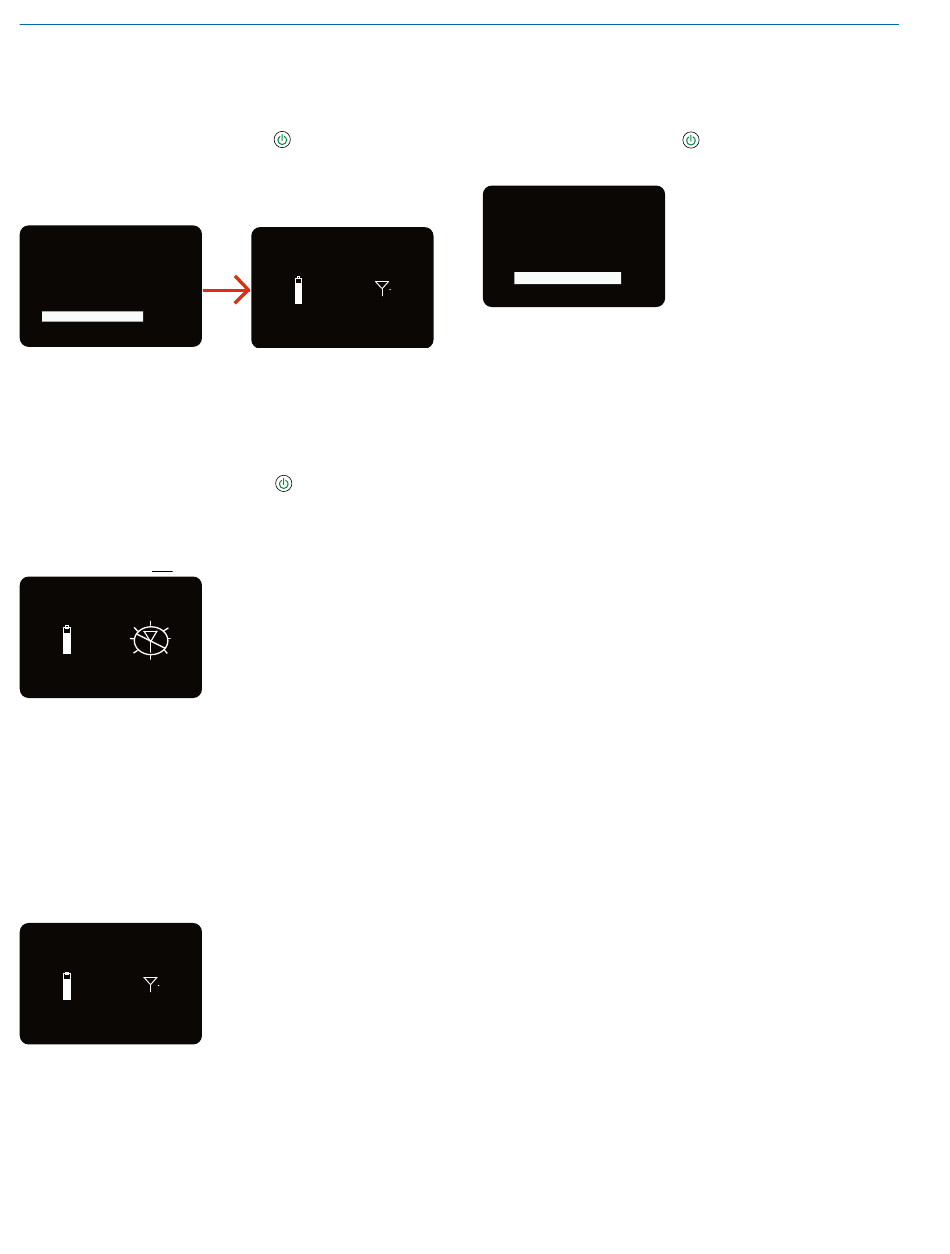

Powering On in Operating Mode

Press and hold the Power Button
while"Hold for RF" appears and a bar indicator on the
LCD progresses across the screen, returning to the Main
Screen.
Hold
for RF
When you release the button, the unit will be operational
with the RF output turned on and the Main Window
displayed.

Powering On in Standby Mode

A brief press of the Power Button
the progress bar is complete, will turn the unit on with
the RF output turned off. The LCD will display a reminder
that the RF output of the transmitter is turned off. Stand-
by Mode means no transmission.
564.800
|| | |
-40 -20 +0
In this Standby Mode the frequency can be browsed
to make adjustments without the risk of interfering with
other wireless systems nearby.
After adjustments are made, press the Power Button
again to turn the unit off.

Encryption Key Missing

A blinking <-KEY?-> below next to the Operating Mode
Indicator shows that the Encryption Key is missing. Refer
to page 14 for instructions on setting the Encryption Key.
564.800
u
)
)
<-KEY?->
8
for several seconds
564.800
)
)
|| |
-40 -20 +0
, releasing it before
The DSSM ships with the key
type set as "Universal" and will
work right away with any
receiver also set to Universal
Key Type.

Powering Off

Holding the Power Button
counter to decrease fully will turn the power off.
Powering
Off...
|
If the power button is released before the countdown is
completed, the unit will remain turned on and the LCD
will return to the same screen or menu that was dis-
played previously.

Setup Steps

The top level menus are accessed by powering the
unit on, then pressing MENU/SEL. Refer to the Setup
Screens section for details of each setup parameter.
The following list outlines the steps necessary to set up
the transmitter for normal use.
1) Install a charged Lectrosonics LB-50 battery or
retrieve the charged unit from the charging dock.
2) Set the compatibility mode to match the receiver
to be used by pressing MENU/SEL, then scroll-
ing to COMPAT and pressing MENU/SEL again to
choose either D2 or HDM.
3) Adjust the frequency to match the receiver by
using IR sync or pressing MENU/SEL, then
XMIT, then FREQ. Use the arrow buttons to scroll
through the first set of digits, then pressing MENU/
SEL to choose and go to the next set of digits.
Press MENU/SEL choose.
The frequency is normally determined using the
receiver to identify one within clear operating spec-
trum. Refer to the receiver instructions for details
on using features such as scanning.
4) Connect the microphone or audio source to be
used. Select the correct input configuration.
5) Adjust the input gain. Refer to the Adjusting the
Input Gain section on the following page for in-
structions.
6) Turn on the receiver and verify that solid RF and
audio signals are present (see receiver manual).
in and waiting for the bar
