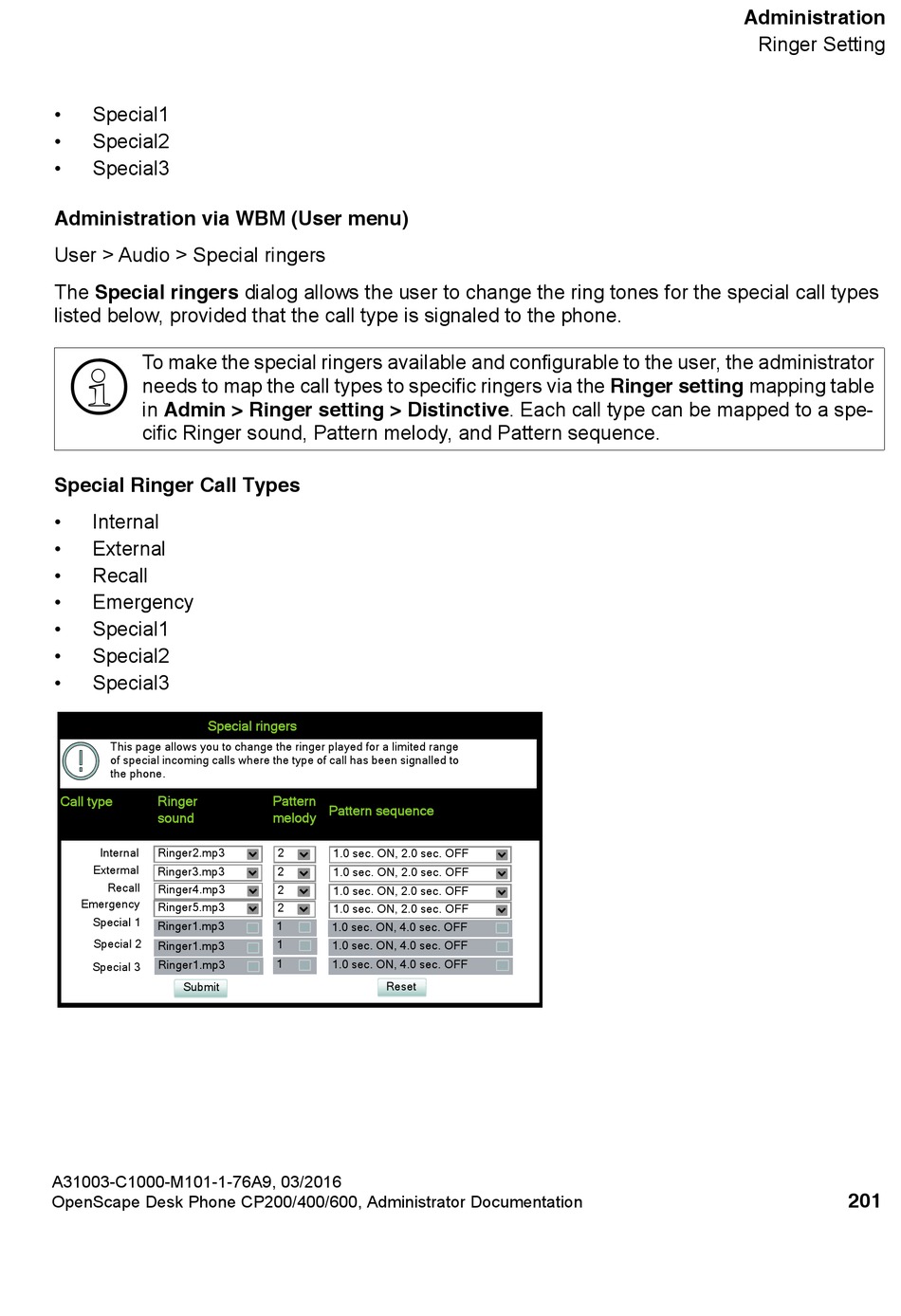

Unify CP200 Administrator Documentation page 201

• Special1
• Special2
• Special3
Administration via WBM (User menu)
User > Audio > Special ringers
The Special ringers dialog allows the user to change the ring tones for the special call types
listed below, provided that the call type is signaled to the phone.
To make the special ringers available and configurable to the user, the administrator
>
needs to map the call types to specific ringers via the Ringer setting mapping table
in Admin > Ringer setting > Distinctive. Each call type can be mapped to a spe-
cific Ringer sound, Pattern melody, and Pattern sequence.
Special Ringer Call Types
• Internal
• External
• Recall
• Emergency
• Special1
• Special2
• Special3
Special ringers
This page allows you to change the ringer played for a limited range
of special incoming calls where the type of call has been signalled to
the phone.
Ringer
Call type
sound
Internal Ringer2.mp3
Extermal
Ringer3.mp3
Recall
Ringer4.mp3
Emergency
Ringer5.mp3
Special 1
Ringer1.mp3
Special 2
Ringer1.mp3
Ringer1.mp3
Special 3
Submit
A31003-C1000-M101-1-76A9, 03/2016
OpenScape Desk Phone CP200/400/600, Administrator Documentation
Pattern
Pattern sequence
melody
2
1.0 sec. ON, 2.0 sec. OFF
2
1.0 sec. ON, 2.0 sec. OFF
2
1.0 sec. ON, 2.0 sec. OFF
2
1.0 sec. ON, 2.0 sec. OFF
1
1.0 sec. ON, 4.0 sec. OFF
1
1.0 sec. ON, 4.0 sec. OFF
1 1.0 sec. ON, 4.0 sec. OFF
Reset
