3.11.7

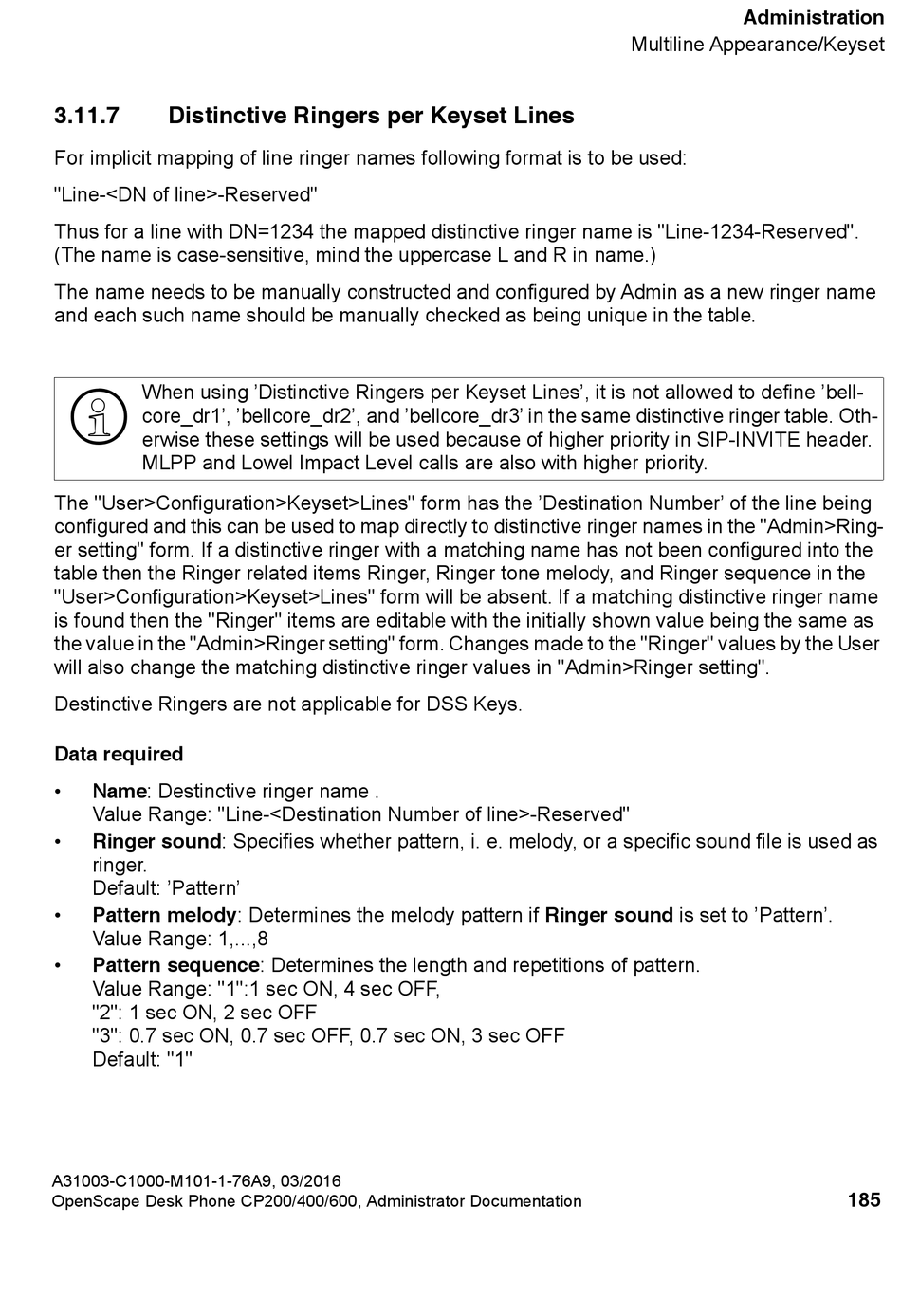

Distinctive Ringers per Keyset Lines

For implicit mapping of line ringer names following format is to be used:
"Line-<DN of line>-Reserved"
Thus for a line with DN=1234 the mapped distinctive ringer name is "Line-1234-Reserved".
(The name is case-sensitive, mind the uppercase L and R in name.)
The name needs to be manually constructed and configured by Admin as a new ringer name
and each such name should be manually checked as being unique in the table.
When using 'Distinctive Ringers per Keyset Lines', it is not allowed to define 'bell-
>
core_dr1', 'bellcore_dr2', and 'bellcore_dr3' in the same distinctive ringer table. Oth-
erwise these settings will be used because of higher priority in SIP-INVITE header.
MLPP and Lowel Impact Level calls are also with higher priority.
The "User>Configuration>Keyset>Lines" form has the 'Destination Number' of the line being
configured and this can be used to map directly to distinctive ringer names in the "Admin>Ring-
er setting" form. If a distinctive ringer with a matching name has not been configured into the
table then the Ringer related items Ringer, Ringer tone melody, and Ringer sequence in the
"User>Configuration>Keyset>Lines" form will be absent. If a matching distinctive ringer name
is found then the "Ringer" items are editable with the initially shown value being the same as
the value in the "Admin>Ringer setting" form. Changes made to the "Ringer" values by the User
will also change the matching distinctive ringer values in "Admin>Ringer setting".
Destinctive Ringers are not applicable for DSS Keys.
Data required
Name: Destinctive ringer name .
•
Value Range: "Line-<Destination Number of line>-Reserved"
Ringer sound: Specifies whether pattern, i. e. melody, or a specific sound file is used as
•
ringer.
Default: 'Pattern'
• Pattern melody: Determines the melody pattern if Ringer sound is set to 'Pattern'.
Value Range: 1,...,8
• Pattern sequence: Determines the length and repetitions of pattern.
Value Range: "1":1 sec ON, 4 sec OFF,
"2": 1 sec ON, 2 sec OFF
"3": 0.7 sec ON, 0.7 sec OFF, 0.7 sec ON, 3 sec OFF
Default: "1"
