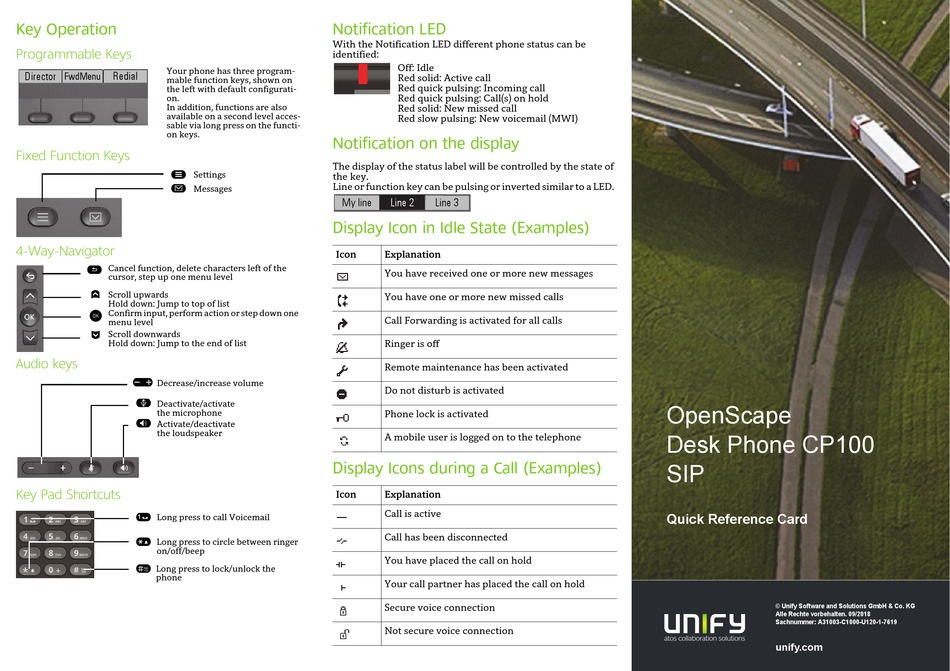

Unify OpenScape CP100 Quick Reference Card

Key Operation

Programmable Keys

Director Redial Your phone has three program-
FwdMenu
mable function keys, shown on
the left with default configurati-
on.
In addition, functions are also
available on a second level acces-
sable via long press on the functi-
on keys.

Fixed Function Keys

@
Settings
Â
Messages

4-Way-Navigator

^
Cancel function, delete characters left of the
cursor, step up one menu level
μ
Scroll upwards
Hold down: Jump to top of list
Z
Confirm input, perform action or step down one
menu level
€
Scroll downwards
Hold down: Jump to the end of list

Audio keys

"
Decrease/increase volume
;
Deactivate/activate
the microphone
:
Activate/deactivate
the loudspeaker

Key Pad Shortcuts

1
Long press to call Voicemail
*
Long press to circle between ringer
on/off/beep
#
Long press to lock/unlock the
phone

Notification LED

With the Notification LED different phone status can be
identified:
Off: Idle
Red solid: Active call
Red quick pulsing: Incoming call
Red quick pulsing: Call(s) on hold
Red solid: New missed call
Red slow pulsing: New voicemail (MWI)

Notification on the display

The display of the status label will be controlled by the state of
the key.
Line or function key can be pulsing or inverted similar to a LED.
My line Line 2 Line 3

Display Icon in Idle State (Examples)

Icon Explanation
You have received one or more new messages
You have one or more new missed calls
Call Forwarding is activated for all calls
Ringer is off
Remote maintenance has been activated
Do not disturb is activated
Phone lock is activated
A mobile user is logged on to the telephone

Display Icons during a Call (Examples)

Icon Explanation
Call is active
Call has been disconnected
You have placed the call on hold
Your call partner has placed the call on hold
Secure voice connection
Not secure voice connection

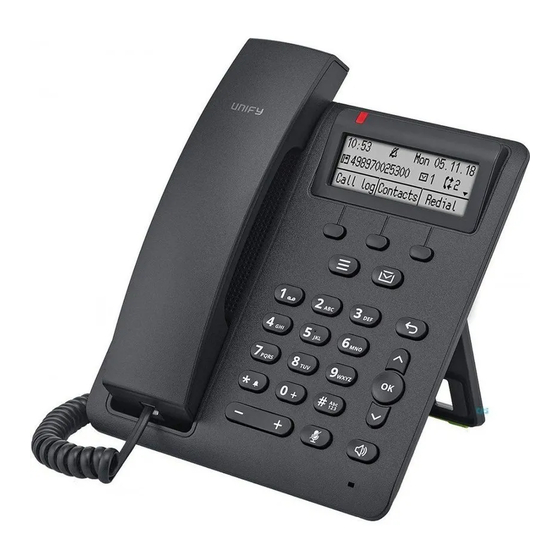

OpenScape
Desk Phone CP100
SIP
Quick Reference Card
© Unify Software and Solutions GmbH & Co. KG
Alle Rechte vorbehalten. 09/2018
Sachnummer: A31003-C1000-U120-1-7619
