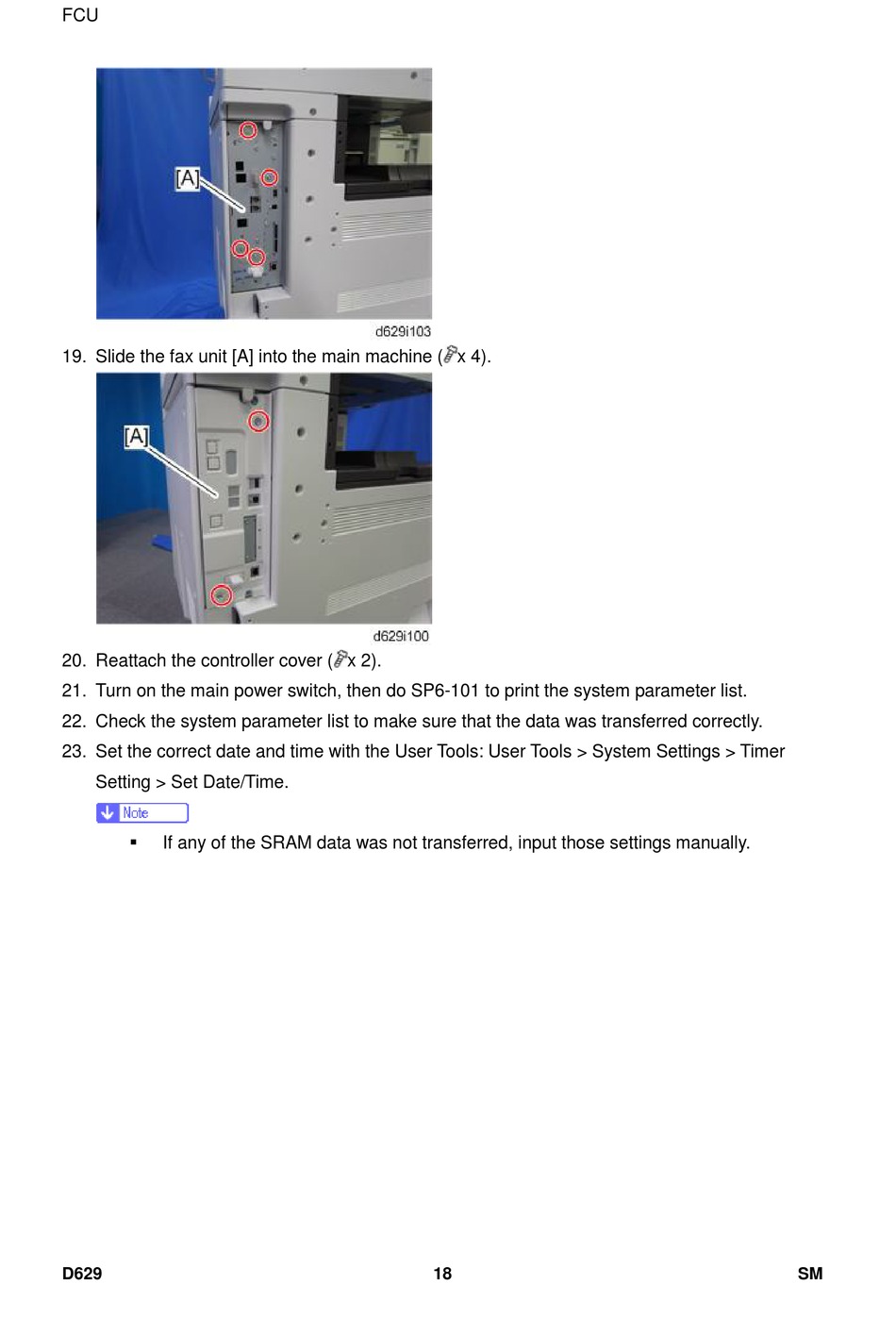

Ricoh D129 Service Manual page 1036

FCU
19. Slide the fax unit [A] into the main machine ( x 4).
20. Reattach the controller cover ( x 2).
21. Turn on the main power switch, then do SP6-101 to print the system parameter list.
22. Check the system parameter list to make sure that the data was transferred correctly.
23. Set the correct date and time with the User Tools: User Tools > System Settings > Timer
Setting > Set Date/Time.

If any of the SRAM data was not transferred, input those settings manually.
D629 18 SM
