an auto route from the headset to the chosen destination the key on the Base
station front panel should be used.
7) From the MAIN menu, select 'PORTS'. A menu of the available audio ports
is displayed.
8) Select the head set for which the call destination is to be set. The menu
for the selected headset will be displayed.
9) Select 'KEY' from the menu. The audio destination menu will be displayed.
10) Use the setup/enter encoder to scroll through the available ports and
select the required destination port. It is possible to select the source port
as the call destination to create an audio loopback system. This may be
used for audio testing purposes.
11) The port destination can be cleared by repeating the process and selecting
the 'NONE' entry.

6.15 Configuring a wired partyline

Before enabling a partyline from the Base station's front panel the type of
partyline must be set on the Base station so that it can set the proper
termination, gain level, and call signaling for that system.
Page 75
User Guide | FreeSpeak II™ Base station version

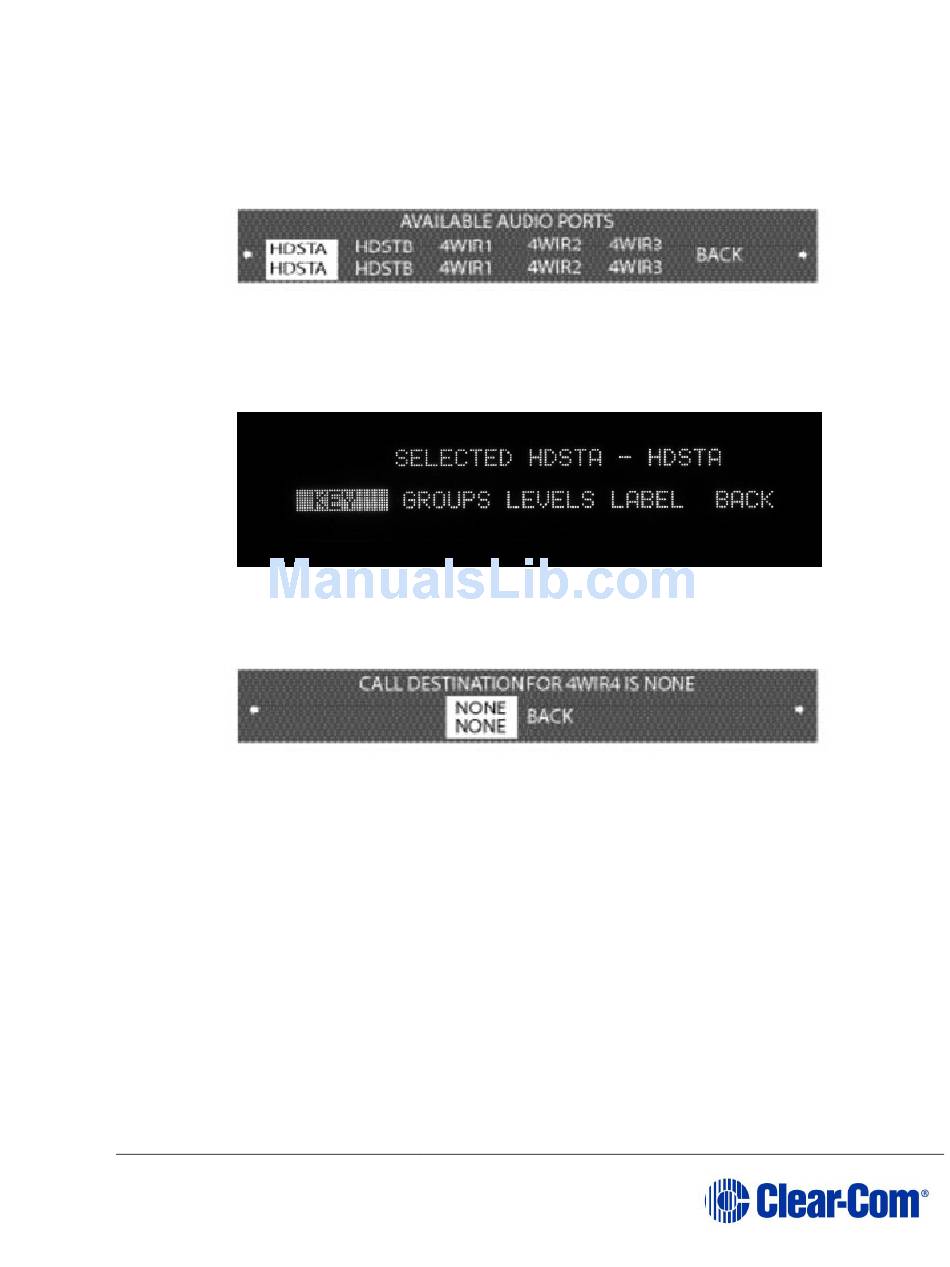

Figure 6-33 Available audio ports menu
Figure 6-34 Selected port menu for calls
Figure 6-35 Port call menu
