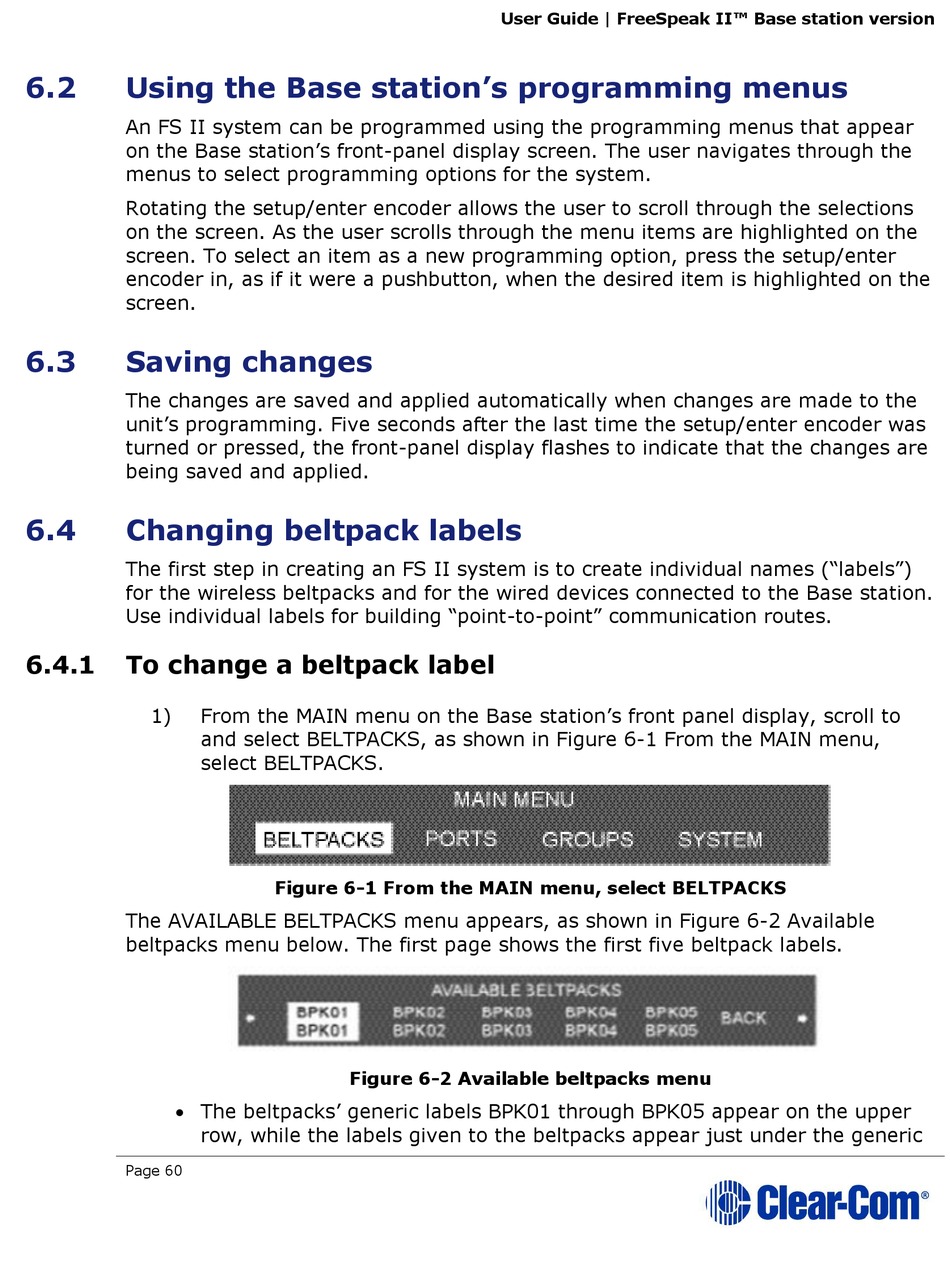

6.2

Using the Base station's programming menus

An FS II system can be programmed using the programming menus that appear
on the Base station's front-panel display screen. The user navigates through the
menus to select programming options for the system.
Rotating the setup/enter encoder allows the user to scroll through the selections
on the screen. As the user scrolls through the menu items are highlighted on the
screen. To select an item as a new programming option, press the setup/enter
encoder in, as if it were a pushbutton, when the desired item is highlighted on the
screen.
6.3

Saving changes

The changes are saved and applied automatically when changes are made to the
unit's programming. Five seconds after the last time the setup/enter encoder was
turned or pressed, the front-panel display flashes to indicate that the changes are
being saved and applied.
6.4

Changing beltpack labels

The first step in creating an FS II system is to create individual names ("labels")
for the wireless beltpacks and for the wired devices connected to the Base station.
Use individual labels for building "point-to-point" communication routes.
6.4.1

To change a beltpack label

1) From the MAIN menu on the Base station's front panel display, scroll to
and select BELTPACKS, as shown in Figure 6-1 From the MAIN menu,
select BELTPACKS.
The AVAILABLE BELTPACKS menu appears, as shown in Figure 6-2 Available
beltpacks menu below. The first page shows the first five beltpack labels.
 The beltpacks' generic labels BPK01 through BPK05 appear on the upper
row, while the labels given to the beltpacks appear just under the generic
Page 60
Figure 6-1 From the MAIN menu, select BELTPACKS
Figure 6-2 Available beltpacks menu
