proceeding to lower-case characters, then to digits, and finally to
punctuation characters.
7) When the desired new character appears, press the setup/enter encoder
to select it. The box disappears, and is replaced by the solid highlight.
8) Repeat steps 4 through 6 for all the characters in the label that are to be
changed.
9) When editing the label has been completed, select BACK to return to the
PROGRAMMING OPTIONS menu.
10) The changes are saved and applied automatically five seconds after the
last time the setup/enter encoder was pressed or turned. The front-panel
display flashes to indicate that the changes are being saved and applied.
11) The beltpack that has had a new label assigned to it should be power
cycled to ensure it is updated with the new label.
To edit another beltpack label, scroll clockwise to the BACK command and select
the beltpack. The AVAILABLE BELTPACKS screen appears. Select a new beltpack
label to edit, and repeat steps 2 through 9.
6.5

Setting and changing port labels

Port labels are created to identify the audio devices wired to the Base station's
rear panel ports, such as partyline beltpacks, 4-wire devices, program sources,
and stage-announce outputs and relays.
6.5.1

To create a port label

1) From the Base station's MAIN menu, scroll to and select PORTS (see
Figure 6-6 Select "Ports" from the main menu).
The first AVAILABLE AUDIO PORTS menu is displayed, as shown in Figure 6-7
First available ports menu.
Page 62

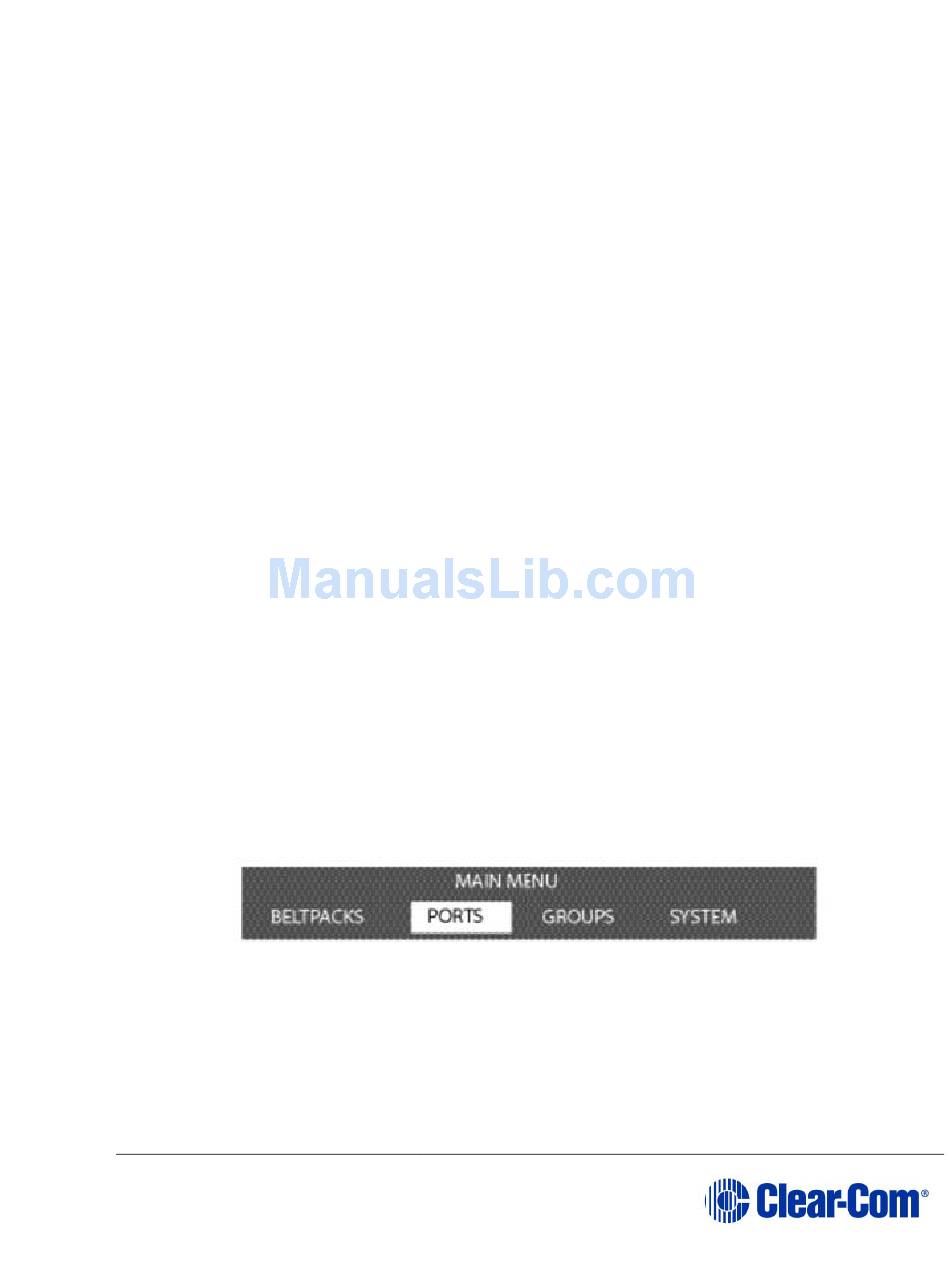

Figure 6-6 Select "Ports" from the main menu
