This facility allows conferencing over a large area between a mix of beltpacks,
partyline stations and Eclipse system panels through an FS II Base station.
FS II beltpacks can only connect to a wired partyline via a wireless partyline.
Therefore in order to allow beltpacks to talk to each other and a wired partyline a
wireless partyline must be set up that includes the wired partyline (PLCHA or
PLCHB) and the beltpacks (see Figure 4-5 Connecting beltpacks to a wired
partyline). This ensures that the audio on the beltpacks is the talk audio and not
the sidetone audio.
4.4

Connecting to 4-Wire and digital matrix intercom

Up to four channels of 4-wire/digital matrix intercom can be connected to the FS
II Base station. The descriptions below will discuss connections with Clear-Com
Matrix Plus digital matrix, Clear-Com Eclipse digital matrix, other brands of digital
Page 42
BP1
Audio from
BP1
Audio to BP1
Audio from
Party Line A

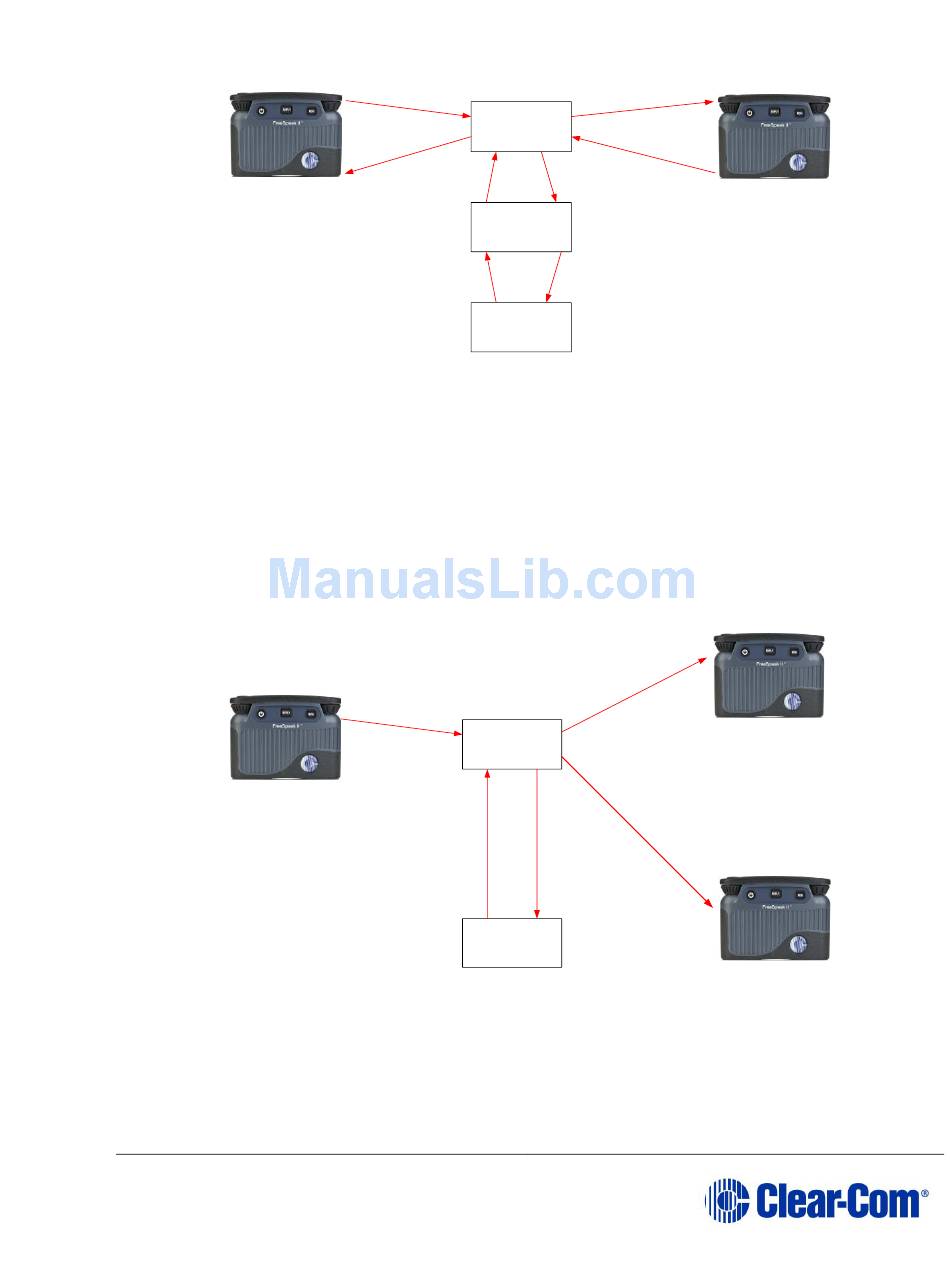

Figure 4-4 Wireless partyline Audio Flow
BP1
Audio from
BP1
Audio from
Party Line A
Figure 4-5 Connecting beltpacks to a wired partyline
User Guide | FreeSpeak II™ Base station version
Audio to BP2
Wireless Party Line
Group
(WPLG)
Auto
Nulling
Audio to
Party Line A
Party Line
Channel A
(PLCHA)
Audio to BP2
Wireless Party Line
Group
(WPLG)
Audio to BP3
Audio to
Party Line A
Party Line
Channel A
(PLCHA)
BP2
Audio from
BP2
BP2
BP3
