10.5.5 Setting the input, output and VOX levels

The input level determines the level at which other users will hear a port, and the
output level determines the level at which the port hears other users.
If VOX is enabled, the VOX level specifies the audio level at which a VOX triggered
audio path is set. The VOX trigger level can be set in the range -70dB to -10dB.
To set an input, output or VOX level,
 From the Input, Output or VOX list, select an input value. The values
run from 6dB to -20dB for input and output levels. For VOX level, the
values run from -10dB to -70dB.

10.6 Configuring groups and wireless partylines

From the Configuration Editor, you can use the Groups/WPL tab to:
 Select and name groups*
 Populate groups
Page 146
User Guide | FreeSpeak II™ Base station version

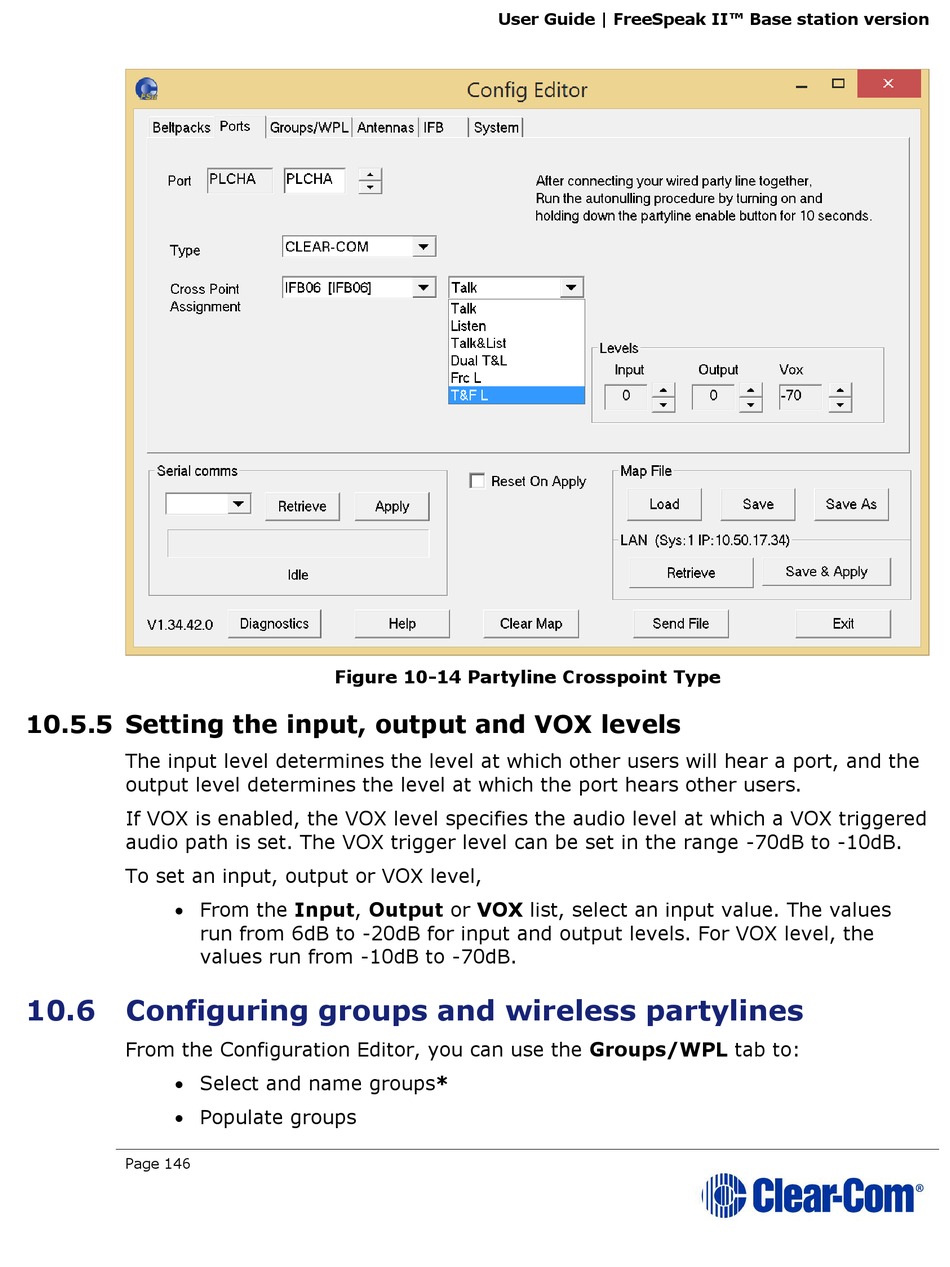

Figure 10-14 Partyline Crosspoint Type
