ClearCom FreeSpeak II Quick Manual

Linking
People
Together
Key Features and Benefits
• Provides 5 FSII transceiver
antenna feeds on 1 antenna port on
FSII-BASE-II station or E-QUE-HX
card
• SFP fiber slot for fiber link to
FSII-BASE-II or for connecting
FSII-BASE-II
• Supports both multi-mode and
single-mode fiber
• Configure settings using DIP
switches
• LED status indicator on front and
back
• Mic stand or wall mount orientation
(metric and imperial threads)
FreeSpeak II is a high performance wireless solution
®
operating in the 1.9 and 2.4 GHz frequency bands designed
for extensive communication in large-scale operations.
Description

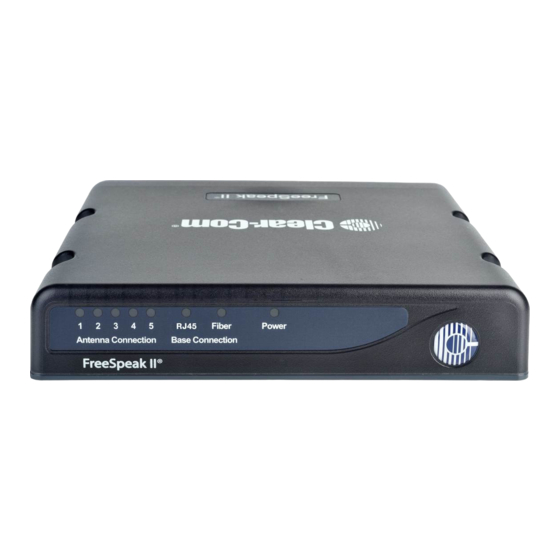

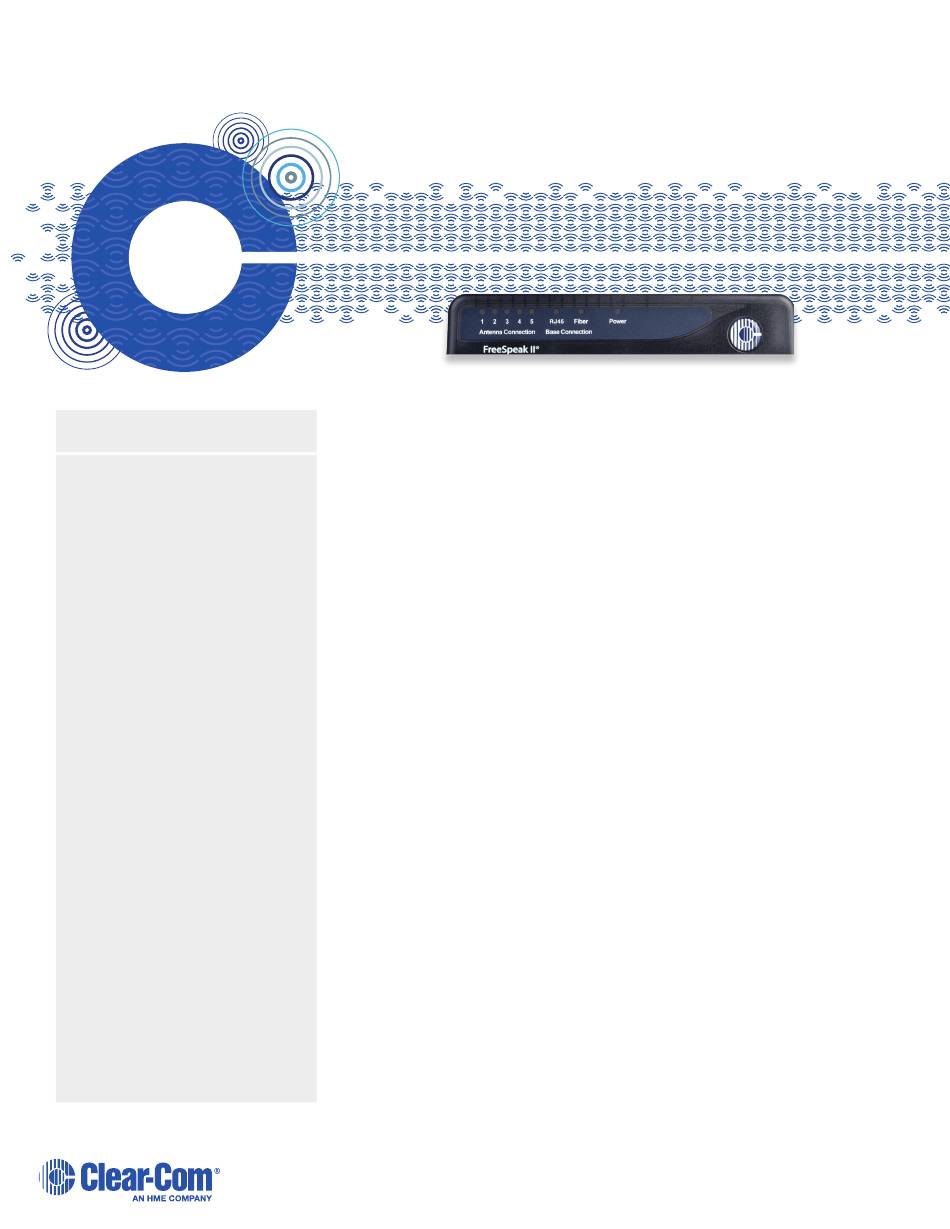

The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an
Eclipse HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides
®
up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber
connectivity.
Fiber Connectivity
Using the SFP fiber slot, the FSII-SPL provides a fiber link between the FSII-BASE-II base
station and splitter (base-to-splitter) or it can be used to connect on legacy FreeSpeak II
base stations and the Eclipse HX frames over fiber via the E-QUE-HX interface card
(splitter-to-splitter).
Mounting Options
The splitter can be mounted on a flat surface or on a microphone stand. LED indicators are
located on the front and back of the unit to show status in any mounted position. Requires
an external power supply (included).
FreeSpeak II Splitter
FreeSpeak II Wireless Solutions
FreeSpeak II Splitter
