User interfaces on Vacon®100 FLOW
2.2.1.6 Help texts
The graphical keypad features instant help and information displays for various items. All
parameters offer an instant help display. Select Help and press the
Text information is also available for faults, alarms and the startup wizard.
STOP READY

Digital Inputs
ID:403 M3.5.1.1
Ctrl Signal 1 A
Ctrl Signal 2 A
Ctrl Signal 1 B
( 6 )
NOTE! Help texts are always in English.
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
I/O STOP READY

Ctrl signal 1 A
ID:403
Edit
Help
Add to favorites
( 6 )

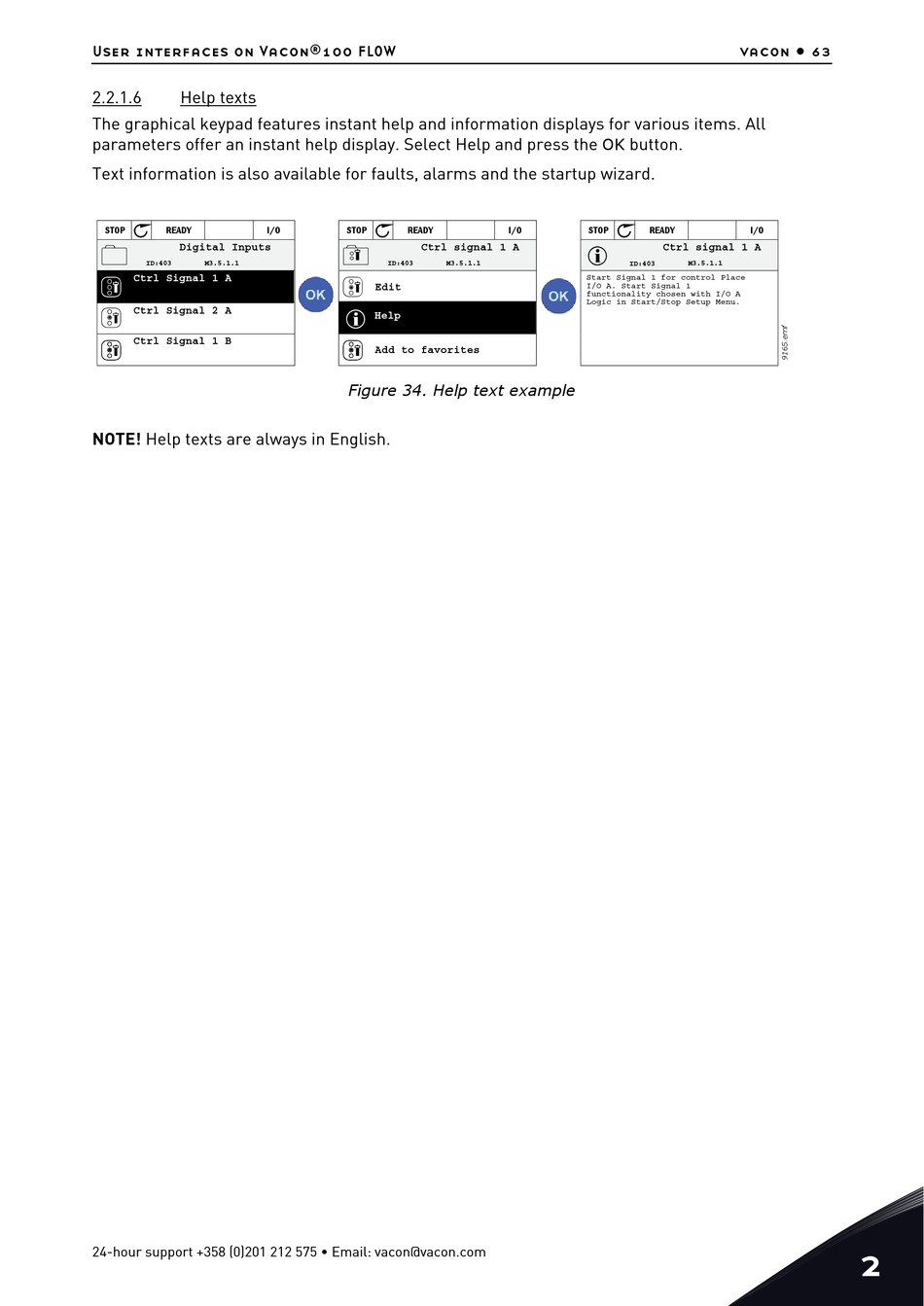

Figure 34. Help text example
OK
I/O STOP
M3.5.1.1
Start Signal 1 for control Place
I/O A. Start Signal 1
functionality chosen with I/O A
Logic in Start/Stop Setup Menu.
vacon • 63
button.
READY I/O
Ctrl signal 1 A
ID:403 M3.5.1.1
