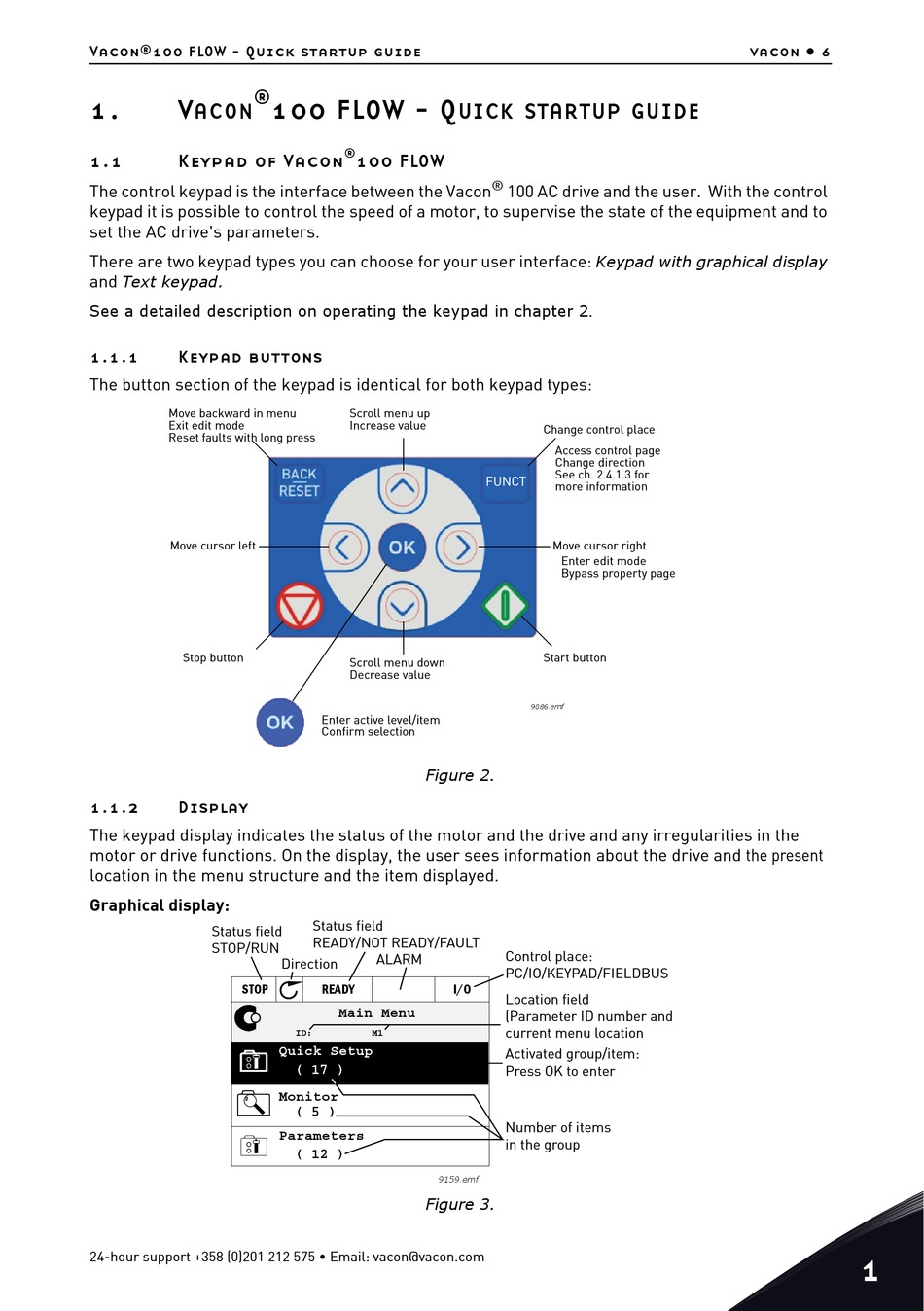

Vacon®100 FLOW - Quick startup guide
®
1. V
ACON
1.1 Keypad of Vacon
The control keypad is the interface between the Vacon
keypad it is possible to control the speed of a motor, to supervise the state of the equipment and to
set the AC drive's parameters.
There are two keypad types you can choose for your user interface:
Text keypad.
and
See a detailed description on operating the keypad in chapter 2
1.1.1

Keypad buttons

The button section of the keypad is identical for both keypad types:
Move backward in menu
Exit edit mode
Reset faults with long press
Move cursor left
Stop button
1.1.2

Display

The keypad display indicates the status of the motor and the drive and any irregularities in the
motor or drive functions. On the display, the user sees information about the drive and the present
location in the menu structure and the item displayed.
Graphical display:
Status field
STOP/RUN
STOP


24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
100 FLOW - Q
®
100 FLOW
Scroll menu up
Increase value
Scroll menu down
Decrease value
Enter active level/item
Confirm selection
Figure 2.
Status field
READY/NOT READY/FAULT
ALARM
Direction
READY
Main Menu
ID: M1
Quick Setup
( 17 )
Monitor
( 5 )
Parameters
( 12 )
9159.emf
Figure 3.
UICK STARTUP GUIDE
®
100 AC drive and the user. With the control
Keypad with graphical display
.
Change control place
Access control page
Change direction
See ch. 2.4.1.3 for
FUNCT
more information
Move cursor right
Enter edit mode
Bypass property page
Start button
9086.emf
Control place:
PC/IO/KEYPAD/FIELDBUS
I/O
Location field
(Parameter ID number and
current menu location
Activated group/item:
Press OK to enter
Number of items
in the group
vacon • 6
