Blower Motor Replacement - Matrix T7X-01 Service Manual

CHaPTer 9: ParT rePlaCemeNT GUide

9.19 bloWer moTor rePlaCemeNT

1) Turn off the power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.13.
3) Lay the console face down and remove the four screws using a Phillips screwdriver (Figure A).
4) The console shell will now separate. Unplug the wire connections from the main circuit board to completely split the front and rear sections
(Figure B).
5) Use a Phillips screwdriver to remove two screws and washers holding the blower motor in place (Figure C).
6) Carefully separate the blower motor from the duct and connect the new blower motor. (Figure D).
7) Reinstall the screws and washers, connect the wires to the main board, and reassemble the console halves.
8) Be sure to test the blower motor once the console is reinstalled.

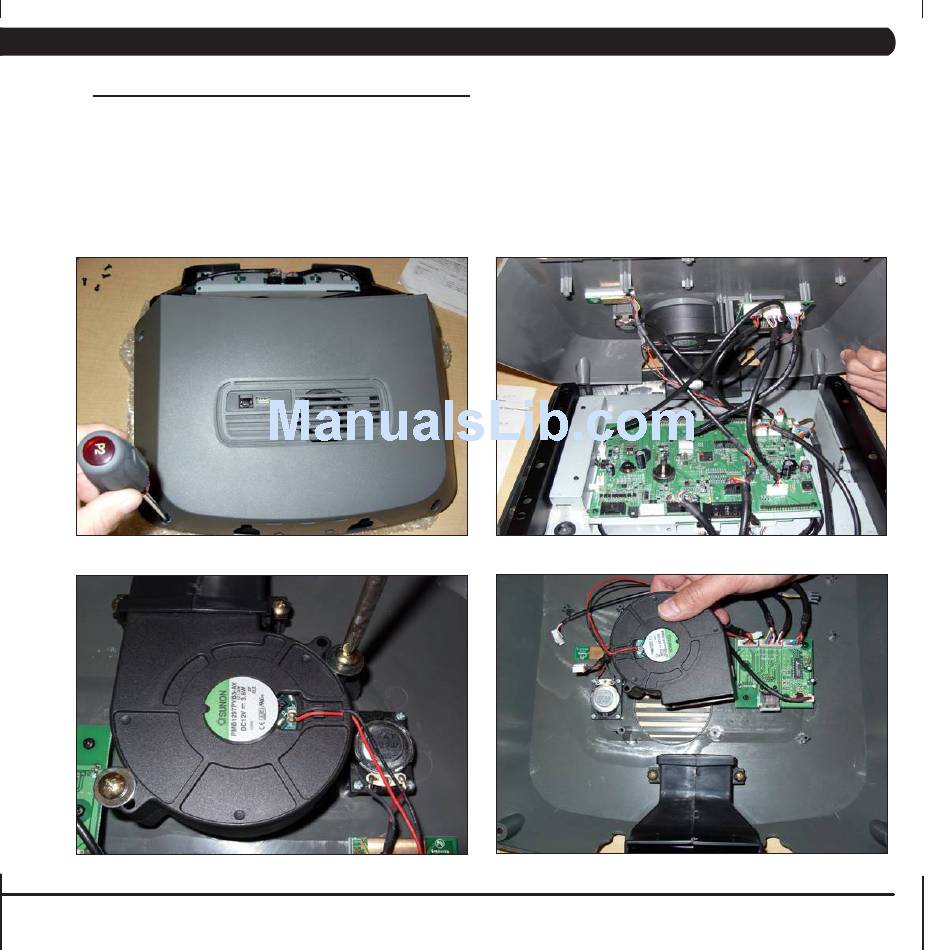

fiGUre a fiGUre b
fiGUre d
fiGUre C
75
