- Page 1 08'_Treadmills_081124.indd 1 11/24/08 1:48:27 PM...
-
Page 2: Table Of Contents
1.1 Before Getting Started ....................1.2 Proper Usage ......................... 1.3 Read and Save These Instructions ................... 1.4 Electrical Requirements ....................1.5 Grounding Instructions ....................CHAPTER 2: PREvENTATIvE MAINTENANCE 2.1 Recommended Cleaning Tips ..................2.2 Deck and Belt Replacement ................... 2.3 Check for Damaged Parts ....................2.4 Adjusting the Belt ......................CHAPTER 3: SERIAL NUMBER LOCATION T5x, T7x, T7xe 3.1 Treadmill ......................CHAPTER 4: T5x, T7x, T7xe OvERLAY AND WORKOUT DESCRIPTION 4.1 T5x, T7x, T7xe Console Description ................... 4.2 Manual Workout Operation......................4.3 Operating Level Based Programs ....................4.4 Heart Rate Control ........................4.5 Fit Test ........................... CHAPTER 5: T5x, T7x, T7xe TREADMILL SPECIFICATIONS, PARTS & ASSEMBLY GUIDES 5.1 Model Specifications ......................... 5.2 Fasteners and Assembly Tools ....................5.3 Assembly Steps ........................ -
Page 3: Before Getting Started
. BEFORE GETTING STARTED When using an electrical product, basic precautions should always be It is the sole responsibility of the purchaser of Matrix Fitness Systems followed including the following: products to instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. DANGER: To reduce the risk of electric shock: Always unplug this equipment from the electrical outlet immediately after using and It is recommended that all users of Matrix Fitness Systems exercise before cleaning. equipment be informed of the following information prior to its use. WARNING: To reduce the risk of burns, fire, electrical shock or injury to .2 PROPER USAGE persons that may be associated with using this product: • Do not use the equipment in any way other than designed or intended by • An appliance should never be left unattended when plugged in. Unplug from the manufacturer. It is imperative that all Matrix Fitness Systems outlet when not in use and before putting on or taking off parts equipment is used properly to avoid injury. • This product must be used for its intended purpose described in this • Keep hands and feet clear of moving parts at all times to avoid injury. owner’s manual. Do not use other attachments that are not recommend by the manufacturer. Attachments may cause injury • Unsupervised children must be kept away from this equipment. • To prevent electrical shock, never drop or insert any object into any opening • Do not wear loose clothing while on equipment. • Do not remove the console covers. Service should only be done by an .3 BEFORE GETTING STARTED authorized service technician This Treadmill is intended for commercial use. To ensure your safety and •... -
Page 4: Electrical Requirements
The deck can be flipped and reinstalled or replaced by an authorized service technician. Please contact Matrix Fitness Systems for more information. DANGER: Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician 2.3 CHECK FOR DAMAGED PARTS or serviceman if the user is in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit DO NOT use any equipment that is damaged or has worn or broken parts. the outlet; have a proper outlet installed by a qualified technician. Use only replacement parts supplied by Matrix Fitness Systems. 20v UNITS MAINTAIN LABELS AND NAMEPLATES. Do not remove labels for any reason. They contain important information. If unreadable or missing, The Matrix T5x, T7x and T7xe 120 treadmill is for use on a nominal contact Matrix Fitness Systems for a replacement or an authorized 120-volt circuit and has a non-looped grounding plug. Make sure that the service provider. 110-volt treadmill is connected to an outlet, NEMA 5-20R, having the same configuration as the plug. No adapter should be used with this product. MAINTAIN ALL EqUIPMENT Preventative maintenance is the key to smooth operating equipment, as well as keeping the users liability to a 220v UNITS minimum. Equipment needs to be inspected at regular intervals. Defective components must be replaced immediately. Improperly working equipment The Matrix T5x, T7x and T7xe 220 treadmill is for use on a nominal 220-volt must be kept out of use until it is repaired. Ensure that any person(s) circuit and has a non-looped grounding plug. Make sure that the 220-volt making adjustments or performing maintenance or repair of any kind is treadmill is connected to an outlet, NEMA 6-20R, having the same qualified to do so. Matrix Fitness Systems will provide service and configuration as the plug. No adapter should be used with this product. maintenance training at our corporate facility upon request or in the field if proper arrangements are made. -
Page 5: Adjusting The Belt
CHAPTER 2: P CHAPTER 3: S reventative aintenance erial umber ocation 2.4 ADJUSTING THE BELT T5x, T7x, T7xe TREADMILL After placing the treadmill in the position it will be used, the belt must be checked for proper tension and centering. The belt might need to be adjusted after the first two hours of use. Temperature, humidity, and use cause the belt to stretch at different rates. If the belt starts to slip when a user is on it, be sure to follow the directions below. Locate the two hex head bolts on the rear of the treadmill. STEP The bolts are located at each end of the frame at the back of the treadmill. These bolts adjust the rear belt roller. Do not adjust until the treadmill is on. This will prevent over tightening of one side. STEP 2 The belt should have equal distance on either side between the frame. If the belt is touching one side, do not start the treadmill. Turn the bolts counter clockwise approximately one full turn on each side. Manually center the belt by pushing the belt from side to side. Tighten the bolts the same amount as when the user loosened them, approximately one full turn. Inspect the belt for damage. STEP 3 While the treadmill is running at 3 mph, observe the belt position. If it is moving to the right, tighten the right bolt by turning it clockwise ¼ turn, and loosen the left bolt ¼ turn. If it is moving to the left, tighten the left bolt by turning it clockwise ¼ turn and loosen the right ¼ turn. Repeat Step 3 until the belt remains centered for several minutes. STEP 4 Check the tension of the belt. The belt should be very snug. When a person walks or runs on the belt, it should not hesitate or slip. If this occurs, tighten the belt by turning both bolts clockwise ¼ turn. Repeat if necessary. - Page 6 CHAPTER 4: t5 verlay orkout escription 4. T5x CONSOLE DESCRIPTION The MATRIX treadmill is inspected before it is packaged. It is shipped in four pieces: the base, the upright console supports, the handlebar and the console. Carefully unpack the unit and dispose of the box material. WORKOUT KEYS: Simple program view and selection buttons. Press Fitness Test button to cycle through available tests. qUICK START/GO: One touch Start and Quick Start. ENTER: To confirm each program setting. UP/DOWN INCLINE: Easy information and incline selection. UP/DOWN SPEED: Easy information and speed selection. UP/DOWN TIME: Easy information and time adjustment. EMERGENCY STOP / IMMOBILIzATION: To stop all functions and immobilize the unit. The emergency stop on this treadmill must be returned to its original position in order to allow normal operation of the unit. STOP: Ends workout and shows workout summary data. PAUSE: Pauses workout. Pause duration can be set in manager mode. NUMBER KEYPAD: Workout data input for workout setup. Speed adjustment during workout. COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length of the workout. Workouts 19 minutes and shorter will have a cool down length of 2 minutes. Workouts 20 minutes and longer will have a cool down length of 5 minutes. FAN: Allows for fan speed selection (fan has three operating speeds.) 08'_Treadmills_081124.indd 5 11/24/08 1:48:32 PM...
- Page 7 CHAPTER 4: t7 verlay orkout escription T7x CONSOLE DESCRIPTION The MATRIX treadmill is inspected before it is packaged. It is shipped in four pieces: the base, the upright console supports, the handlebar and the console. Carefully unpack the unit and dispose of the box material. MULTI-PURPOSE KEYS: Keys have different functions depending on T7x ENTERTAINMENT zONE each screen. POWER: If add-on TV is present, acts as the power control button. If add-on qUICK START/GO: One touch Start and Quick Start. TV is not present, acts as a display toggle button. ENTER: To confirm each program setting. iPOD ® : Will take the user directly to the iPod screen to allow for iPod control and playlist selection. UP/DOWN INCLINE: Easy information and incline selection. vOLUME UP/DOWN: Adjusts the volume output through the headphone jack UP/DOWN SPEED: Easy information and speed selection. of either add-on TV, integrated console TV or iPod output. UP/DOWN TIME: Easy information and time adjustment. NUMBER KEYPAD: Allows for easy TV channel selections. These buttons work for either the add-on TV or the integrated console TV. EMERGENCY STOP / IMMOBILIzATION: To stop all functions and immobilize the unit. The emergency stop on this treadmill must be returned to its original CHANNEL UP/DOWN: Allows for channel selection on either the add-on TV or position in order to allow normal operation of the unit. the integrated console TV. STOP: Ends workout and shows workout summary data. DISPLAY MODE: Allows user to cycle through console display options, iPod, TV or profile display. PAUSE: Pauses workout. Pause duration can be set in manager mode. LAST CHANNEL: Allows the user to cycle between the current channel and NUMBER KEYPAD: Workout data input for workout setup. Speed adjustment the previous channel they were viewing. during workout. COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length of the workout. Workouts 19 minutes and shorter...

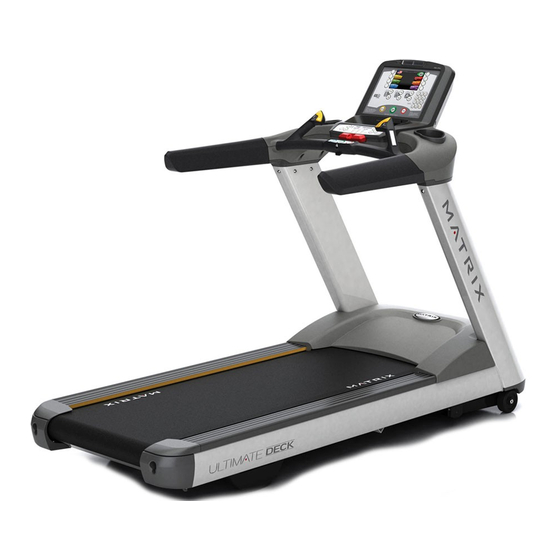

- Page 8 CHAPTER 4: t7 verlay orkout escription T7xe CONSOLE DESCRIPTION The MATRIX treadmill is inspected before it is packaged. It is shipped in four pieces: the base, the upright console supports, the handlebar and the console. Carefully unpack the unit and dispose of the box material. The T7xe has a full integrated touch screen display. All information required for workouts is explained on screen. Exploration of the interface is highly encouraged. The information explaining how to program for various workouts will give an explanation about the contents of each screen on the T7xe. qUICK START/GO: One touch Start and Quick Start. STOP: Ends workout and shows workout summary data. COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length of the workout. Workouts 19 minutes and shorter will have a cool down length of 2 minutes. Workouts 20 minutes and longer will have a cool down length of 5 minutes. EMERGENCY STOP / IMMOBILIzATION: To stop all functions and immobilize the unit. The emergency stop on this treadmill must be returned to its original position in order to allow normal operation of the unit. T7xe ENTERTAINMENT zONE POWER: If add-on TV is present, acts as the power control button. If add-on TV is not present, acts as a display toggle button. iPOD : Will take the user directly to the iPod screen to allow for iPod control and playlist selection. ® vOLUME UP/DOWN: Adjusts the volume output through the headphone jack of either add-on TV, integrated console TV or iPod output. NUMBER KEYPAD: Allows for easy TV channel selections. These buttons work for either the add-on TV or the integrated console TV. CHANNEL UP/DOWN: Allows for channel selection on either the add-on TV or the integrated console TV. DISPLAY MODE: Allows user to cycle through console display options, iPod, TV or profile display. LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel they were viewing. 08'_Treadmills_081124.indd 7 11/24/08 1:48:33 PM...
-
Page 9: Manual Workout Operation
Choose FAT BURN by selecting the fat burn workout button and press ENTER. Press the GO or qUICK START button(s) and the treadmill will enter into a Enter the desired intensity level using the ARROW KEYS or the NUMBER manual mode of operation. All energy expenditure values will be calculated KEYPAD and press ENTER. using the default wight measurement. Enter the desired workout length using the ARROW KEYS or the NUMBER KEYPAD and press ENTER. MANUAL WORKOUT OPERATION Enter user weight (user weight is used to calculate the caloric expenditure value, providing an accurate weight helps to ensure an accurate caloric Manual is a workout that allows you to manually adjust the speed and expenditure rating for each user) using the ARROW KEYS or the NUMBER incline values at anytime. The manual workout also contains a setup screen KEYPAD and press ENTER. which allows you to input your weight to help calculate a more accurate Press GO or qUICK START to begin the workout. caloric burn rate. To enter into this workout on a T7x or T7xe, follow the onscreen prompts. To enter into this workout on a T5x, use the following guidelines: 4.4 HEART RATE CONTROL WORKOUT OPERATION Choose MANUAL by selecting the manual workout button and press ENTER. Enter the desired workout length using the ARROW KEYS or the NUMBER Your Matrix treadmill offers a heart rate control workout mode. The heart KEYPAD and press ENTER. rate control workout mode allows the user to program their desired heart Enter user weight (user weight is used to calculate the caloric expenditure rate zone and maximum allowable incline and the treadmill will automati- value-providing an accurate weight helps to ensure an accurate caloric cally adjust the incline based upon the user’s heart rate. The heart rate zone expenditure rating for each user) using the ARROW KEYS or the NUMBER is calculated using the following equation: (220-Age)*%=target heart rate KEYPAD and press ENTER. zone. The user must wear a telemetric heart rate monitor or continually hold Enter the desired initial incline value using the ARROW KEYS or the onto the contact heart rate grips for this workout. NUMBER KEYPAD and press ENTER. Enter the desired start speed using the ARROW KEYS or the NUMBER To enter into this workout on a T5x, use the following guidelines: KEYPAD and press ENTER. -
Page 10: Fit Test
6:15 57.7 not stabilized for 15 seconds. 6:30 58.8 Test completion: The test is completed when user heart rate 6:45 60.2 exceeds the target for more than 15 seconds or the user 7:00 61.2 completes all 11 stages, whichever occurs first. The treadmill 7:15 62.3 will enter a cool down cycle for 3 minutes at 3.0 mph (4.8 kph), 7:30 63.3 0% incline. 7:45 8:00 To enter into this workout on a T5x, use the following guidelines: 8:15 66.5 8:30 68.2 Choose the Gerkin test by pressing the FITNESS TEST WORKOUT 8:45 button until Gerkin is shown in the message window and 9:00 70.7 press ENTER 10.1 9:15 72.1 Enter age using the or the and ARROW KEYS NUMBER KEYPAD 10.2... - Page 11 Males: vO2 max (ml/kg/min) ous branches of the Military with the objective of each test to complete the distance as quickly as possible. At the completion of the test, a time-based 20-29 30-39 40-49 50-59 score as defined by the respective Military branch will be shown on the con- sole. >58.8 >58.9 >55.4 >52.5 SUPERIOR 54.0 52.5 50.4 47.1 To enter into this workout on the T5x, use the following guidelines: Choose your desired Military test by pressing the FITNESS TEST 51.4 50.3 48.2 45.3 EXCELLENT WORKOUT button until your desired branch test is shown in the message 48.2 46.8 44.1 41.0 window and press enter. Enter age using the ARROW KEYS or the NUMBER KEYPAD and 46.8 44.6 41.8 38.5 GOOD press ENTER 44.2...
-
Page 12: Model Specifications
CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5. T5x, T7x, T7xe MODEL SPECIFICATIONS T7xe Features Deck Type Ultimate Hard-Wax reversible 1” deck Ultimate Hard-Wax reversible 1” deck Ultimate Hard-Wax reversible 1” deck Belt Type Habisat - 2-ply commercial grade Habisat - 2-ply commercial grade Habisat - 2-ply commercial grade Running area 60” x 22” 60” x 22” 60” x 22” Deck Step Height 9.5” 9.5” 9.5” Cushion System Ultimate Deck Cushioning System Ultimate Deck Cushioning System Ultimate Deck Cushioning System Incline Range 0-15% (1,300 lb thrust incline motor) 0-15% (1,300 lb thrust incline motor) 0-15% (1,300 lb thrust incline motor) Speed Range 0.5 - 12 mph / 0 - 19 km/h 0.5 - 15* mph / 0 - 24 km/h 0.5 - 15* mph / 0 - 24 km/h Contact HR sensors Telemetric HR receiver... -
Page 13: Fasteners And Assembly Tools
CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.2 T5x, T7x, T7xe MODEL REqUIRED FASTENERS & ASSEMBLEY TOOLS Part #: Part Name: Outline: Dimensions: Quantity: Bag Color: 020090-00 Socket head cap screw M8 x 20mm Black 0000086571 Flat Washer 6.2 x 12 x 1.6 Black 0000084935 Left Connection Bracket SPHC 4.0T 0000084936 Right Connection Bracket SPHC 4.0T 004541-AC Socket Head Cap Screw M8 x 1.25P x 45 mm White 035882-AB Socket Head Cap Screw M8 x 1.25P x 75 mm White 0000086571 Flat Washer 6.2 x 12 x 1.6T White... -
Page 14: Assembly Steps
CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS ATTENTION • After assembly and installation is complete the treadmill will need to be calibrated using the auto-calibration feature found in the manager mode screen. Please refer to the Matrix treadmill service manual for instructions on how to enter management mode. DO NOT stand on the belt while the auto-calibration sequence is in progress. Prior to assembling the treadmill, unpack all of the contents of the box and make sure that all necessary components are present. Review the contents of the hardware package for completeness. Contact Matrix customer service at 866.693.4863 to report any missing items. ASSEMBLY INSTRUCTIONS • Please make sure that the power plug is not plugged into the wall outlet while completing the following procedure. To ensure correct assembly of the treadmill, carefully read and follow these steps: *Assembly steps are shown using a T5x. Assembly steps for T7x and T7xe are identical to what is shown below. STEP STEP 2 Remove the motor cover(s) and set aside. The motor cover(s) need to be Open Black Assembly Bag. Assemble both the left and right console masts to removed to gain access to the motor compartment so that wire harness the treadmill base using item 10-socket head cap screw and item connections can occur. - Page 15 CHAPTER : T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS STEP 3 STEP 4 Open White Assembly Bag. Assemble the left and right bracket-items 20 and Open Blue Assembly Bag. Slide the urethane arms over the steel tubes on the 21 to the console base using item 12-socket head cap screw, item console base. Fasten the urethane arms to the steel tubes using item 14-flat washer and item 11-socket head cap screw. 17-socket head cap screw and item 19-spacer. Assembly tip: It is much easier to accomplish this task if the console base is left inside it’s shipping container. 08'_Treadmills_081124.indd 14 11/24/08 1:48:52 PM...
- Page 16 CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS STEP 5 STEP Open Red Assembly Bag. Assemble the console base to the console masts Open Yellow Assembly Bag. Make appropriate wire connections to the using item 15-button head cap screw and item 14-flat washer. Be sure to faceplate and then assemble to the console base using item 13-socket head route the console cables down the console mast through the larger opening cap screw, item 23-lock washer, item 16-socket head cap screw and item in the mast which is closest to the running belt. Make all appropriate wire 23-lock washer. Item 16 is a shorter socket head cap screw and gets connections within the motor compartment. assembled into the holes closest to the running surface. All holes applicable to this assembly step can be noted by the embossed arrow next to the hole. 08'_Treadmills_081124.indd 15 11/24/08 1:48:58 PM...
- Page 17 CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS STEP STEP 0 Open Green Assembly Bag. Install the power cord and assemble item Replace the motor cover(s) and power the treadmill unit on. The power 18-power cord holder with item 22-button head screw. If your hardware pack button is located next to the power cord inlet. is missing item 22, check to see if the screws are already assembled on the treadmill. ASSEMBLY COMPLETE Assembly is complete and the auto-calibration sequence must be run at this time. 08'_Treadmills_081124.indd 16 11/24/08 1:49:09 PM...
-
Page 18: Optional Leveling Assembly Techniques
CHAPTER 5: T5x, T7x, T7xe T readmill pecifications arts ssembly uides 5.4 T5x, T7x, T7xe MODEL ASSEMBLY STEPS OPTIONAL LEvELING ASSEMBLY TECHNIqUES: Use of shim or adding leveling foot. NOTE: It is extremely important that the levelers are correctly adjusted for proper operation. An unbalanced unit may cause belt misalignment or other issues. Use of all level is recommended. Remove the leveling shim provided on the underside of the treadmill. The shim can be found mounted on the underside of the right hand side rail. Remove the rear foot on the side of the treadmill that is resting low. Install the shim as shown above and return the rear foot. When installing the optional rear leveling foot accessory, remove the existing rear foot. Replace with new leveling foot and fasten to the frame using the existing fasteners that held in the half-moon foot. 08'_Treadmills_081124.indd 17 11/24/08 1:49:13 PM... - Page 19 M AT r i x F iTn ess sysT e Ms | 1 610 L An dM Ark d ri v e CoT TAg e grov e w i 53527 UsA To l l Fre e m a t r i x f i t n e ss . co m Fa x 8 6 6 .693.48 63 60 8 .
