7. Set main switch to the OFF position (Fig. 1-4, pgs. 4-5).
8. Connect devices to terminals marked [1P - 1N through 4P - 4N] on PD4/PD4CB board, carefully observing
correct polarity (Fig. 1-4, pgs. 4-5).
9. Set main switch to the "RESET" (ON) position (Fig. 1-4, pgs. 4-5).
10. Green LED will illuminate when unit is powered.
11. Upon completion of the wiring, secure enclosure door with screws (supplied).
CAUTION: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to the National
Electrical Code and all local codes.
PD4/PD4CB - Distribution Module

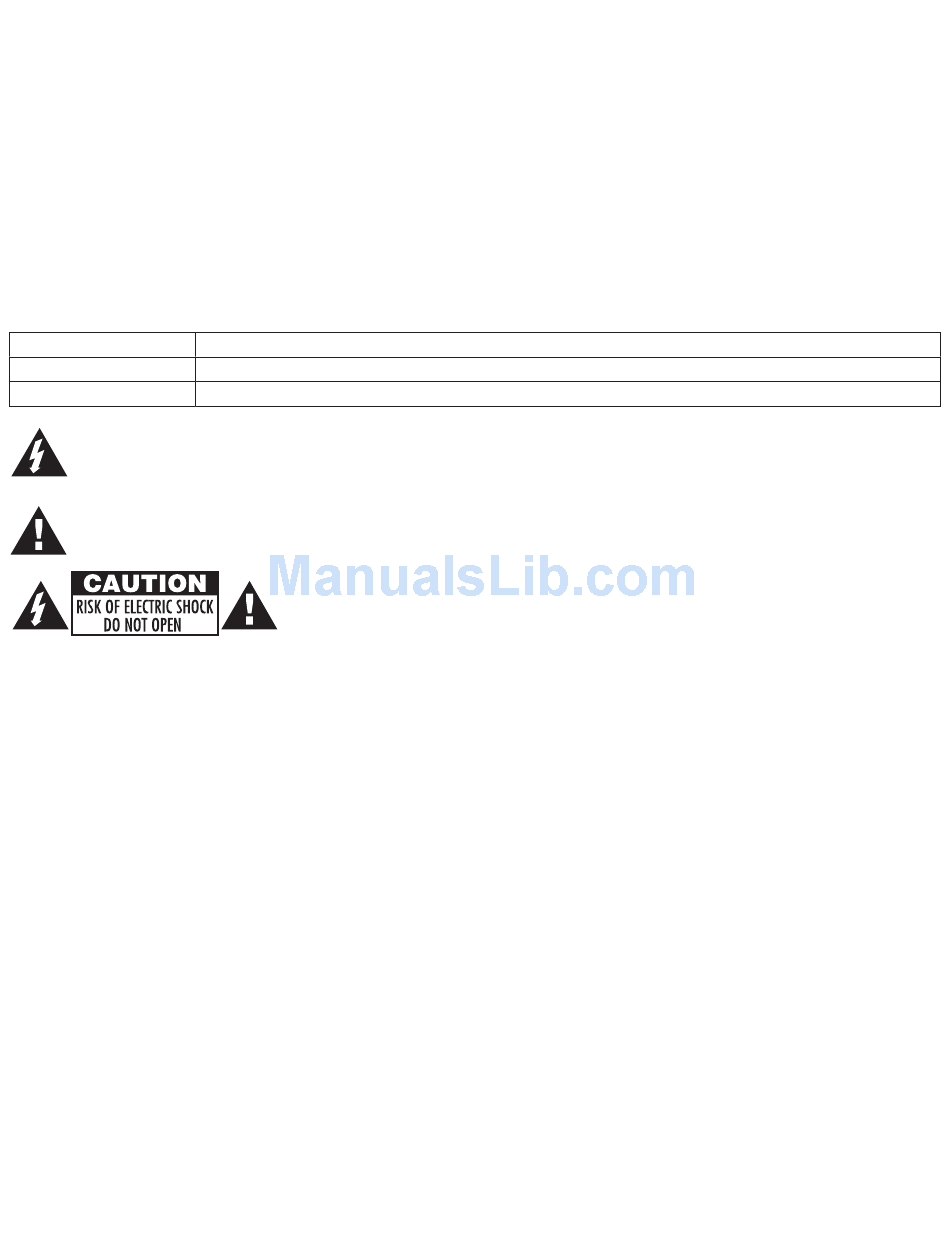

Terminal Legend
1P - 4P
1N - 4N
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ALTV244220series

Terminal Identification:

Function/Description
Positive AC output.
Negative AC output.
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside. Refer servicing to qualified
service personnel.
