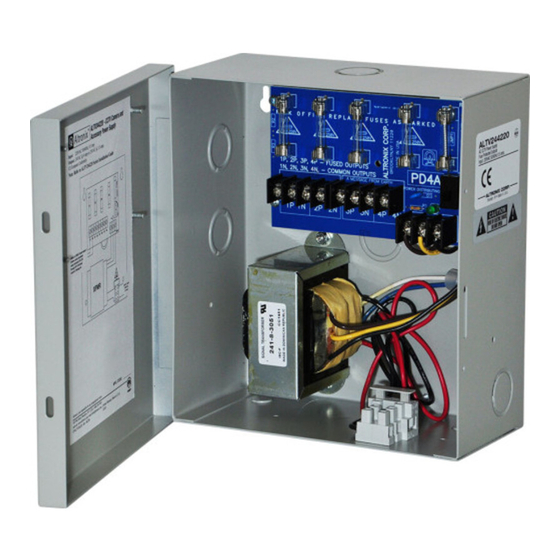

ALTV244220 Series
CCTV Power Supplies
Installation Guide
Models Include:
• ALTV244220
- 24VAC @ 4A (100VA)
or 28VAC @ 3.5A.
- Four (4) Fuse Protected Outputs.
• ALTV244175220
- 24VAC @ 7.25A (175VA)
or 28VAC @ 6.25A.
- Four (4) Fuse Protected Outputs.
• ALTV244300220
- 24VAC @ 12.5A (300VA).
or 28VAC @ 10A.
- Four (4) Fuse Protected Outputs.
• ALTV244CB220
- 24VAC @ 4A (100VA)
or 28VAC @ 3.5A.
- Four (4) PTC Protected Outputs.
• ALTV244175CB220
- 24VAC @ 7.25A (175VA)
or 28VAC @ 6.25A.
- Four (4) PTC Protected Outputs.
• ALTV244300CB220
- 24VAC @ 12.5A (300VA).
or 28VAC @ 10A.
- Four (4) PTC Protected Outputs.
Rev. 020705

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALTV244220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix ALTV244220 Series

Summary of Contents for Altronix ALTV244220 Series

  • Page 1 ALTV244220 Series CCTV Power Supplies Installation Guide Models Include: • ALTV244220 • ALTV244CB220 - 24VAC @ 4A (100VA) - 24VAC @ 4A (100VA) or 28VAC @ 3.5A. or 28VAC @ 3.5A. - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs.
  • Page 2 Overview: ALTV244220 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories. Four (4) Output ALTV244220 Reference Chart: Output Total Current 220VAC Output Fuse...

  • Page 3: Troubleshooting

    1. Blown fuse (ALTV244220, ALTV244175220, ALTV244300220) - Set ON/OFF switch to the OFF position. Replace the blown fuse(s) with fuse(s) rated @ 3.5A/250VA (Altronix model # Fuse1). 2. Tripped PTC (ALTV244CB220, ALTV244175CB220, ALTV244300CB220) - To reset PTC set ON/OFF switch to the OFF position.
  • Page 4 Fig. 1 ALTV244220 24VAC or 28VAC fused output 1 INPUT (Follow same procedure using terminals 2P & 2N through 4P & 4N fused outputs 2 through 4) Voltage Selection Configuration XFMR 250V 24VAC 220VAC input Output 50/60 Hz, 0.5A (Yellow) (Black) Fig.
  • Page 5 Fig. 3 ALTV244175220 1P, 2P, 3P, 4P = FUSED OUTPUTS 1N, 2N, 3N, 4N = COMMON OUTPUTS INPUT 24VAC or 28VAC fused output 1 (Follow same procedure using terminals 2P & N through 4P & N fused outputs 2 through 4) Power Switch Voltage Selection...
  • Page 6 Fig. 5 ALTV244300220 Power Switch Transformer underneath power supply board Voltage Selection 250V Configuration 24VAC Output 220VAC input (Yellow) (Black) 50/60 Hz, 1.8A Fig. 6 ALTV244300CB220 28VAC Power Output Switch (Black) (Yellow) Transformer underneath power supply board 250V 220VAC input 50/60 Hz, 1.8A - 6 -...
  • Page 7 Enclosure Dimensions for: • ALTV244220 • ALTV244CB220 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.15mm) 3.625” (184.15mm) 1.25” (31.75mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm) 2” (50.8mm) 2” (50.8mm) 8.125”...
  • Page 8 (25.4mm) (25.4mm) 7.25” (184.15mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER II1ALTV244220series A11P - 8 - ALTV244220series...
