Altronix ALTV244 Installation Instructions

Overview:
ALTV244 CCTV power supply is designed to power CCTV Cameras and accessories. It will provide 24VAC distributed
via four (4) fuse protected outputs with a total of 4 amp continuous supply current.
Specifications:
Input:
• Input 115VAC 50/60 Hz, .9 amp.
Output:
• 24VAC outputs.
• Four (4) individual fused outputs.
• 4 amp (100VA) supply current.
• Surge protection.
Fuse Ratings:
• Output fuses are rated at 3.5 amp / 250VAC (Fig. 1).
• Main fuse is rated at 5 amp / 250VAC (Fig. 1).
Visual Indicators:
• AC power LED indicator.
Additional Features:
• Power ON/OFF switch.
• Spare fuses included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
Enclosure Dimensions:
8.5"H x 7.5"W x 3.5"D
Optional available with 220VAC input order model # ALTV244/220.
Installation Instructions:
1. Mount ALTV244 in desired location.
2. Slide switch SW1 (Fig. 1) to OFF position.
3. Connect the AC (115VAC 50/60 Hz) to the black and
white flying leads of the transformer (Fig. 1).
4. Connect each camera to terminal pairs 1 to 4, marked
[1P-1N thru 4P - 4N] (Fig. 1).
Note: It is important to measure output voltage before
connecting devices. This helps avoid potential damage.
All terminals with common suffix P 1P, 2P..." are same
polarity.
5. Slide switch SW1 (Fig. 1) to ON position.
6. Green LED will illuminate when AC power is present.
7. Upon completion of wiring, secure enclosure door
with screws (supplied).
WARNING: To reduce the risk of fire or electric
shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service
personnel and should conform to all local codes and
in accordance with the National Electrical Codes.
ALTV244
CCTV Camera & Accessory Power Supply
F1 F2 F3
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
1P 1N 2P 2N 3P 3N
24 VAC fused output 1
(Follow same procedure
using terminals 2P & N
thru 4P & N fused
outputs 2 thru 4)
White Lead
115 VAC input
50/60 Hz,
.9 amps
Black Lead
F4
SW1
PD4A
POWER DISTRIBUTING UNIT
LED
N P
4P 4N
INPUT
XFMR

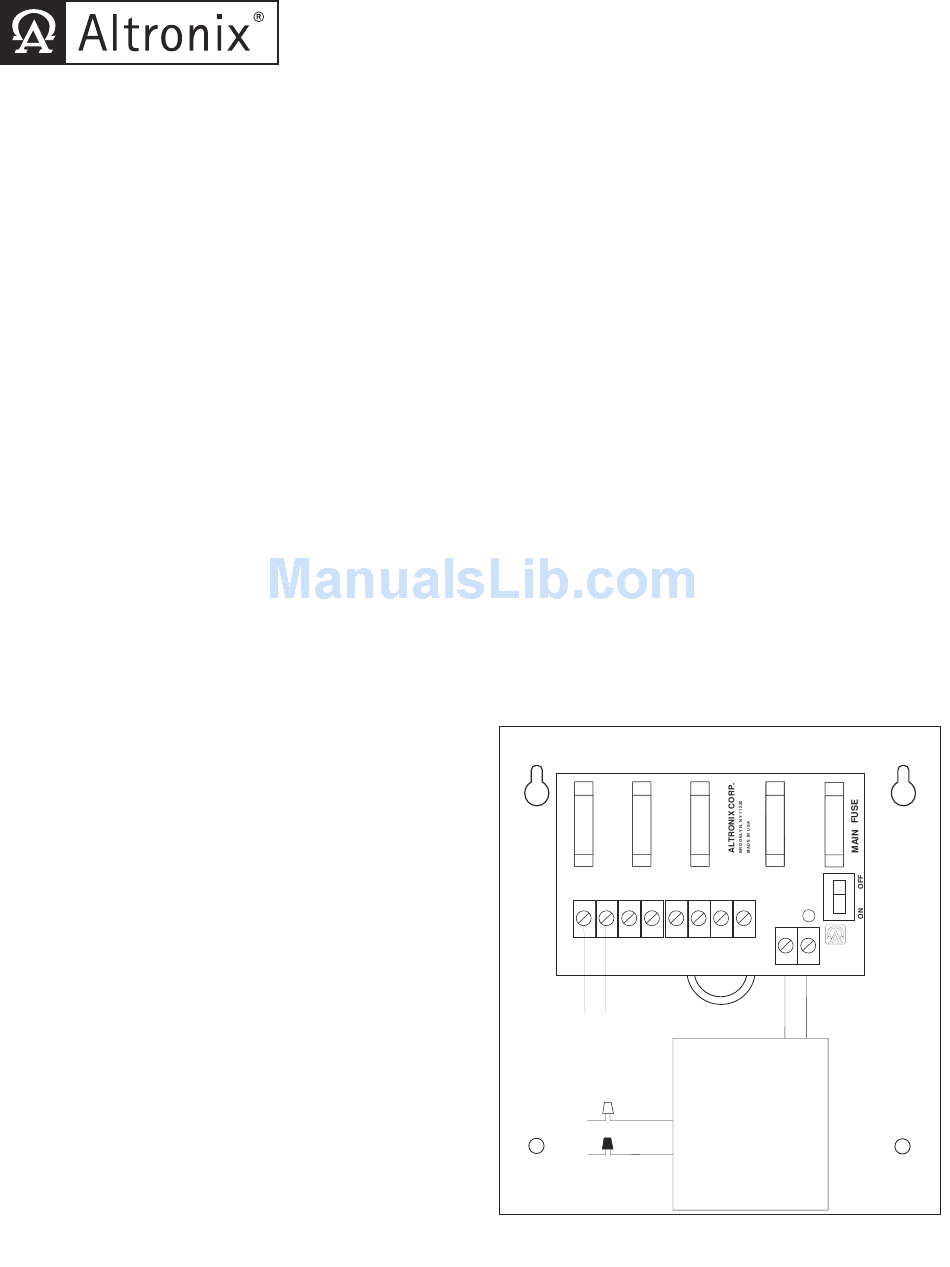

Fig. 1
