ALTV244220 Series
CCTV Power Supplies

Installation Guide

Models Include:
ALTV244220
- 24VAC @ 4A (100VA) or
28VAC @ 3.5A (100VA).
- Four (4) Fuse Protected Outputs.
ALTV244175220
- 24VAC @ 7.25A (175VA) or
or 28VAC @ 6.25A (175VA).
- Four (4) Fuse Protected Outputs.
ALTV244300220
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (300VA).
- Four (4) Fuse Protected Outputs.
Rev. 020705
ALTV244CB220
- 24VAC @ 4A (100VA) or
28VAC @ 3.5A (100VA).
- Four (4) PTC Protected Outputs.
ALTV244175CB220
- 24VAC @ 7.25A (175VA) or
28VAC @ 6.25A (175VA).
- Four (4) PTC Protected Outputs.
ALTV244300CB220
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (300VA).
- Four (4) PTC Protected Outputs.
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTV244220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix ALTV244220 Series

Summary of Contents for Altronix ALTV244220 Series

  • Page 1: Installation Guide

    ALTV244220 Series CCTV Power Supplies Installation Guide Models Include: ALTV244220 ALTV244CB220 - 24VAC @ 4A (100VA) or - 24VAC @ 4A (100VA) or 28VAC @ 3.5A (100VA). 28VAC @ 3.5A (100VA). - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs.

  • Page 2: Specifications

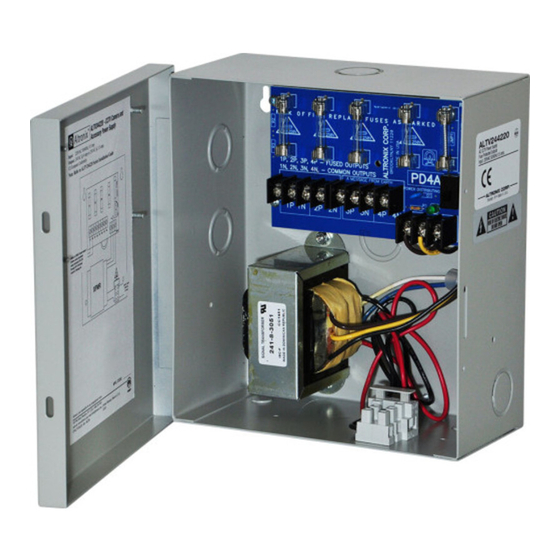

    Overview: Altronix ALTV244220 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Four (4) Output ALTV244 Reference Chart: Total Altronix Output Output Model Number...

  • Page 3: Troubleshooting

    Troubleshooting: 1. Blown fuse (ALTV244220, ALTV244175220, ALTV244300220) - Set ON/OFF switch to the OFF position. Replace the blown fuse(s) with fuse(s) rated @ 3.5A/250VA (Altronix model # Fuse1). 2. Tripped PTC (ALTV244CB220, ALTV244175CB220, ALTV244300CB220) - To reset PTC set ON/OFF switch to the OFF position.
  • Page 4 Fig. 1 - ALTV244220 and ALTV244CB220 PD4A POWER DISTRIBUTING UNIT INPUT 1P 1N 2P 2N 3P 3N 4P 4N used on ALTV244CB220 250V Input 220VAC 50/60Hz, 0.5A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 4 - ALTV244220 Series...
  • Page 5 Fig. 2 - ALTV244175220 and ALTV244175CB220 PD4A POWER DISTRIBUTING UNIT 1P 1N 2P 2N 3P 3N 4P 4N used on ALTV244175CB220 Illuminated Power Switch 250V Input 220VAC 50/60Hz, 0.8A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV244220 Series - 5 -...
  • Page 6 Fig. 3 - ALTV244300220 and ALTV244300CB220 Illuminated Power Switch 250V Input used on 220VAC ALTV244300CB220 50/60Hz, 1.8A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 6 - ALTV244220 Series...
  • Page 7 (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm) 2” (50.8mm) 2” (50.8mm) 8.125” (206.375mm) 1” 1” (25.4mm) (25.4mm) 6.05” 0.6” 0.6” 1.25” (153.67mm) (15.24mm) (15.24mm) (31.75mm) 3.5” (88.9mm) 1” (25.4mm) 1” 5.25” 1” (25.4mm) (133.35mm) (25.4mm) ALTV244220 Series - 7 -...
  • Page 8 7.25” (184.15mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIALTV244220 Series E08R...
