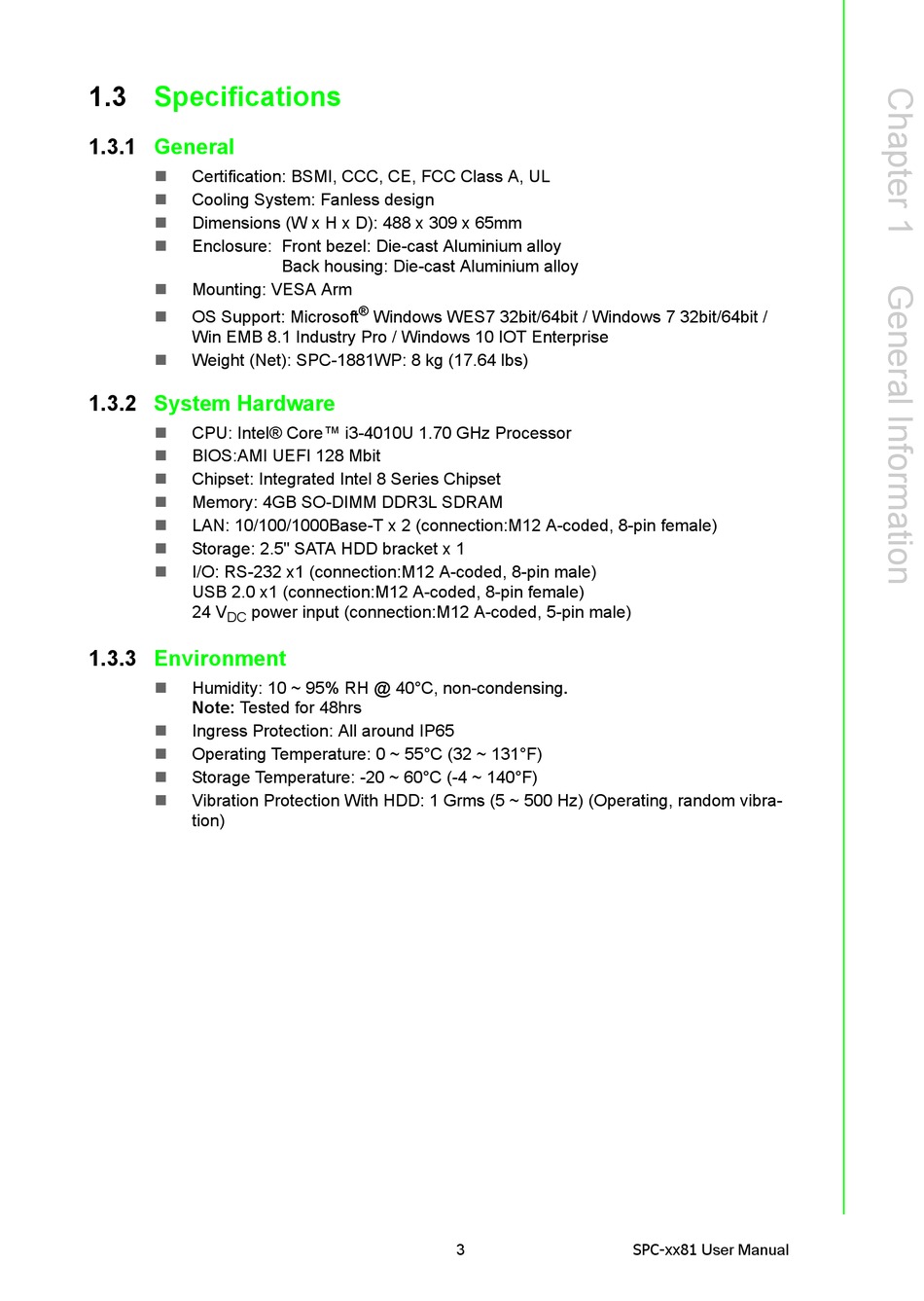

1.3

Specifications

1.3.1

General

 Certification: BSMI, CCC, CE, FCC Class A, UL
 Cooling System: Fanless design
 Dimensions (W x H x D): 488 x 309 x 65mm
 Enclosure: Front bezel: Die-cast Aluminium alloy
 Mounting: VESA Arm
 OS Support: Microsoft
Win EMB 8.1 Industry Pro / Windows 10 IOT Enterprise
 Weight (Net): SPC-1881WP: 8 kg (17.64 lbs)
1.3.2

System Hardware

 CPU: Intel® Core™ i3-4010U 1.70 GHz Processor
 BIOS:AMI UEFI 128 Mbit
 Chipset: Integrated Intel 8 Series Chipset
 Memory: 4GB SO-DIMM DDR3L SDRAM
 LAN: 10/100/1000Base-T x 2 (connection:M12 A-coded, 8-pin female)
 Storage: 2.5" SATA HDD bracket x 1
 I/O: RS-232 x1 (connection:M12 A-coded, 8-pin male)
USB 2.0 x1 (connection:M12 A-coded, 8-pin female)
24 V power input (connection:M12 A-coded, 5-pin male)
DC
1.3.3

Environment

 Humidity: 10 ~ 95% RH @ 40°C, non-condensing.
Note: Tested for 48hrs
 Ingress Protection: All around IP65
 Operating Temperature: 0 ~ 55°C (32 ~ 131°F)
 Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
 Vibration Protection With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibra-
tion)
Back housing: Die-cast Aluminium alloy
®
Windows WES7 32bit/64bit / Windows 7 32bit/64bit /
