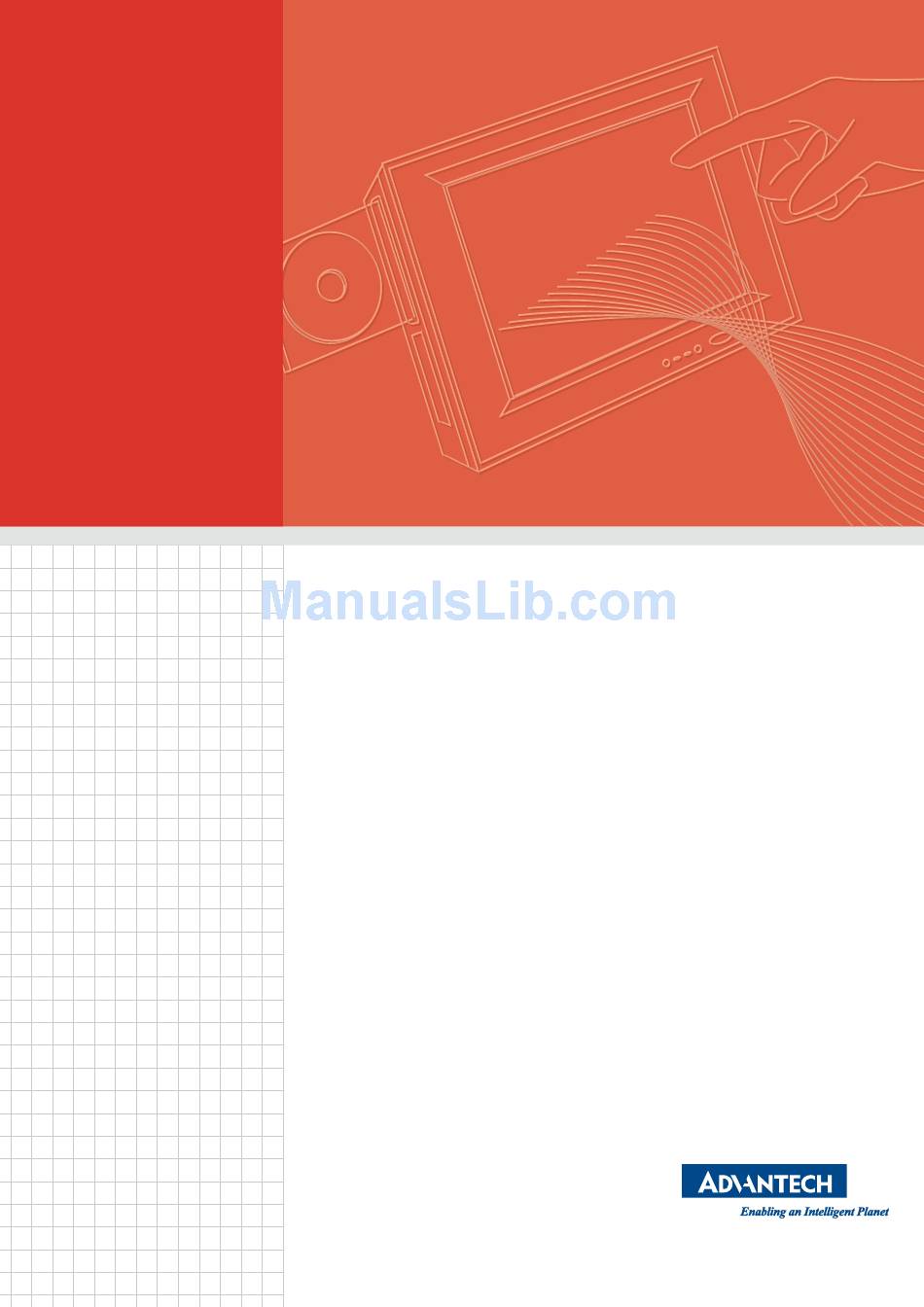

- Page 1 User Manual PPC-157T Intel® Core 2 Duo Processor- Based Panel PC with 15” Color TFT LCD Display...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. -
Page 4: Safety Instructions
70 dB (A). This product is only applicable in areas below 2,000 m. DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 5 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. PPC-157T User Manual...
- Page 6 PPC-157T User Manual...
-
Page 7: Table Of Contents
System Setup ........5 A Quick Tour of the Panel PC ..............6 Figure 2.1 Front Panel of PPC-157T ........... 6 Figure 2.2 Side View of the Panel PC ......... 6 Figure 2.3 I/O Peripheral Connectors Panel........ 7 Figure 2.4 Rear View of the Panel PC......... 7 Preparing for First-time Use .............. - Page 8 Setting Jumpers................28 5.1.2 Jumpers ..................29 5.1.3 Jumper and Connector Locations..........30 Figure 5.1 Jumpers & Connectors on PPC-157T Motherboard. 30 5.1.4 Connectors ................. 31 Table 5.1: CN1 (USB Port 6)............. 32 Table 5.2: CN2 (CPU FAN Connector) ........32 Table 5.3: CN3 (LVDS2 Connector)..........
- Page 9 Chapter Driver Installation ......43 Introduction ..................... 44 6.1.1 Driver Installation ................ 44 Updating Driver Search on the Advantech Website........ 44 Appendix A PCI Card and PCIe Size Limits ..45 PCIe Interface Card ................46 PCI Interface Card .................. 46 PPC-157T User Manual...
- Page 10 PPC-157T User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information This chapter gives background information on the PPC-157T. Sections include: Specifications Dimensions... -
Page 12: Introduction
Introduction Advantech PPC-157T is an Intel Core 2 Duo processor based Panel PC with a bright 15" LCD display. The powerful Core 2 Duo CPU and Intel 945GME chipsets bring the most dynamic applications to life without sacrifices to any industrial reliability. The... -
Page 13: Ethernet Interface
Temperature: 0 ~ 50° C (32 ~ 122° F) Relative humidity: 10 ~ 95% @ 40° C (non-condensing) Shock: 10 G peak acceleration (11 msec duration) 1.2.9 Certifications: EMC: CE, FCC, BSMI, CCC BSMI approved Safety: CE, UL, CB PPC-157T User Manual... -
Page 14: Dimensions
Dimensions Figure 1.1 Dimensions of PPC-157T PPC-157T User Manual... -
Page 15: Chapter 2 System Setup
Chapter System Setup This chapter gives system setup information for the PPC-157T. Sections include: A Quick Tour Installation Procedures Running the BIOS Setup Installing System software... -
Page 16: A Quick Tour Of The Panel Pc
When placed upright on the desktop, the front panel of the panel PC appears as shown in Figure 2.1. Figure 2.1 Front Panel of PPC-157T When viewed from the left side of the panel PC, the optical device drive, USB ports are visible, as shown in Figure 2.2. -
Page 17: Figure 2.3 I/O Peripheral Connectors Panel
VESA standard, both 100 x 100 mm and 75 x 75 mm mounting size. Recommended VESA Mount Screw : M4 x 8 – 12 (mm) Figure 2.4 Rear View of the Panel PC Caution! Use recommended mounting apparatus to avoid risk of injury. PPC-157T User Manual... -
Page 18: Preparing For First-Time Use
CMOS RAM and compares them to the equip- ment check conducted during the power on self-test (POST). If a problem occurs, an error message will be displayed on screen, and the computer prompts the user to run the setup program. PPC-157T User Manual... -
Page 19: Installing System Software
These files are a very useful supplement to the information in this manual. Note! The drivers and utilities used for the PPC-157T panel PCs are subject to change without notice. If in doubt, check Advantech's website or contact our application engineers for the latest information regarding drivers util- ities. - Page 20 PPC-157T User Manual...
-
Page 21: Chapter 3 Using The Panel Pc
Chapter Using the Panel PC This chapter explains onboard devices and peripheral I/O ports available on the PPC-157T. Sections include: CD-ROM Drive PS/2 Mouse and Keyboard PCI or PCIe Bus Expansion Serial COM Ports VGA Port ... -
Page 22: Introduction
To install a full-size desktop PS/2 keyboard and mouse with the panel PC, follow these instructions: Be sure the panel PC is turned off. Attach the keyboard to the purple colored 5-pin PS/2 port. Attach the PS/2 mouse to the green colored port. Turn on the panel PC. PPC-157T User Manual... -
Page 23: Pci Or Pcie Bus Expansion
Remove the metal plate by unscrewing the attaching screw. Insert the PCI or PCIe into the PCIe slot of the riser card. (See Figure 3.2) Run the setup program within the OS to configure the system. Figure 3.2 PCI & PCIe Bus Expansion PPC-157T User Manual... -
Page 24: Serial Com Ports
The panel PC simultaneously supports an external CRT monitor in addition to the built-in LCD display. Be sure the panel PC is turned off. Connect the external monitor to the system. (See Figure 3.3.) Turn on the panel PC and the external monitor. PPC-157T User Manual... -
Page 25: Usb Ports
Touchscreen (Optional) The touchscreen is connected to the internal USB port. Its function is similar to that of a mouse. There are 3 kinds of touchscreens that support the PPC-157T: Resistive, capacitive and SAW type. It is necessary to install the touchscreen driver before it will function. The touch- screen drivers for various operating systems are stored on the CD-ROM disc inside the accessory box. - Page 26 PPC-157T User Manual...
-
Page 27: Chapter 4 Hardware Installation
Chapter Hardware Installation This chapter gives instructions for installing hardware devices on the PPC-157T. Sections include: Jumpers and Connectors Disassembling the Panel PC Installing the Central Processing Unit (CPU) Installing the DDR2 SDRAM Memory Module... -
Page 28: Jumpers And Connectors
The following are standard procedures for disassembling the panel PC before upgrading the system. All procedures are illustrated in Figure 4.1, 4.2, 4.3. Unfasten the screws securing the rear plastic cover and remove it. Figure 4.1 Unfastening the Rear Cover PPC-157T User Manual... -
Page 29: Figure 4.2 Disconnecting The Fan Connector
Before removing the rear cover, disconnect the system fan connector. Figure 4.2 Disconnecting the Fan Connector Figure 4.3 The PPC without the Rear Cover PPC-157T User Manual... -
Page 30: Installing The 2.5" Hard Disk Drive
Remove the two screws on side cover first. (See Figure 4.4) Figure 4.4 The PPC Side Cover Remove the four screws on the metal plate on both sides of the HDD. (See Fig- ure 4.5) Figure 4.5 The PPC HDD PPC-157T User Manual... -
Page 31: Figure 4.6 Plugging In The Sata Cable
Connect SATA cable from main board. Figure 4.6 Plugging in the SATA Cable Figure 4.7 Placing the Heatsink and FAN on CPU, then Fastening PPC-157T User Manual... -
Page 32: Installing The Central Processing Unit (Cpu)
Only experienced electronics personnel should open the panel Follow these instructions to install a CPU: Place the CPU carefully into the socket, taking care to align it properly. Figure 4.8 Placing the CPU in the Socket PPC-157T User Manual... -
Page 33: Figure 4.9 Tightening The Screws On The Cpu
Figure 4.9 Tightening the Screws on the CPU Place the heatsink and fan on top of the CPU, and fasten them with the reten- tion bracket. Figure 4.10 Placing the Heatsink and Fan on the CPU, then Fastening PPC-157T User Manual... -
Page 34: Installing The Ddr2 Sdram Memory Module
Installing the DDR2 SDRAM Memory Module The panel PC system provides two 200-pin SODIMM sockets and it is possible to install from 512 MB to 4 GB of DDR2 SDRAM memory. Figure 4.11 Placing the Memory Module in the SODIMM Socket PPC-157T User Manual... -
Page 35: Installing The Optical Device Drive
Installing the Optical Device Drive Remove all the screws on the rear cover. Figure 4.12 Rear Cover Photo Loosen the screws on the CD-ROM module. Figure 4.13 Rear Cover Photo with ODD Bracket PPC-157T User Manual... -
Page 36: Figure 4.14I/O Shielding
Loosen the screws on the IO shielding. Figure 4.14 I/O Shielding Remove the SATA cable from CD-ROM. Figure 4.15 SATA CD-ROM Cable PPC-157T User Manual... -
Page 37: Chapter 5 Jumpers And Connectors
Chapter Jumpers and Connectors This chapter gives information on setting jumpers and using the connectors on the PPC-157T motherboard. Sections include: Setting Jumpers Jumpers and Connectors loca- tions Connectors... -
Page 38: Setting Jumpers
Jumpers and Connectors This chapter supplies more detailed information about the internal jumper settings and an outline of the I/O ports available on the PPC-157T. 5.1.1 Setting Jumpers The Panel PC can be configured to match the needs of each application by setting the jumpers. -
Page 39: Jumpers
It also has LED indicator lamps that display the system operation status. The table below lists the function of each jumper and LED. The motherboard of the PPC-157T has a number of jumpers that allow you to config- ure your system to suit your applications. -
Page 40: Jumper And Connector Locations
CN15 CN17 CN19 CN16 CN47 CN18 CN23 CN21 CN22 CN27 CN45 CN24 CN25 CN43 CN26 CN44 CN42 CN28 CN29 CN36 CN34 CN30 CN31 CN37 CN32 CN33 CN38 CN39 CN40CN35 Figure 5.1 Jumpers & Connectors on PPC-157T Motherboard PPC-157T User Manual... -
Page 41: Connectors
Line IN connector CN41 Clear CMOS connector ( Reserved) Note: S1, which is near CN25 can execute clear CMOS function. CN42 COM3 RI Function Selection connector CN43 COM4 RI Function Selection connector CN44 COM2 RI Function Selection connector PPC-157T User Manual... -
Page 42: Table 5.1: Cn1 (Usb Port 6)
FAN Speed Detection Table 5.3: CN3 (LVDS2 Connector) Signal Signal +5_LVDS0 +V5_LVDS0 +V5_LVDS0 +V5_LVDS0 LVDS2_D0- LVDS3_D0- LVDS2_D0+ LVDS3_D0+ LVDS2_D1- LVDS3_D1- LVDS2_D1+ LVDS3_D1+ LVDS2_D2- LVDS3_D2- LVDS2_D2+ LVDS3_D2+ LVDS2_CLK- LVDS3_CLK- LVDS2_CLK+ LVDS3_CLK+ LVDS2_DCLK LVDS2_DDAT LVDS2_D3- LVDS3_D3- LVDS2_D3+ LVDS3_D3+ LVDS2_BKLTEN PPC-157T User Manual... -
Page 43: Table 5.4: Cn4 (Lvds1 Connector)
LVDS0_D1+ LVDS0_DDAT LVDS0_D2- LVDS0_D2+ LVDS0_DCLK LVDS0_CLK- LVDS0_CLK+ +V3.3_LVDS +V3.3_LVDS Table 5.5: CN5 (System FAN Connector) Signal +V12 FAN Speed Detection Table 5.6: CN8 (SATA HDD Power Connector) Signal +V3.3 +V12 Table 5.7: CN9 (SATA HDD Connector) Signal PPC-157T User Manual... -
Page 44: Table 5.8: Cn10 (+V12 Power Connector)
Table 5.9: CN12 (ATX Power Input Connector) Signal Signal +V3.3 +V3.3 +V3.3 -V12 PS_ON# +V5SB +V12 Table 5.10: CN13 (USB Port 4/5) Signal Signal +V5_USB +V5_USB DAT- DAT- DAT+ DAT+ Table 5.11: CN15 (SPI Reflash Connector) Signal Signal +V3.3 MISO# MOSI PPC-157T User Manual... -
Page 45: Table 5.12: Cn17 (Sata Odd Connector)
+V3.3 +V12 Table 5.14: CN19 (Multi Function PCI Express by1 Connector) Signal Signal +V12 +V12 +V12 +V12 +V12 SATA1_TX+ SMB_CLK SATA1_TX- SMB_DATA SATA1_RX- SATA1_RX+ +V3.3 +V3.3 +V3.3 +V3.3SB PLTRST# PCIE_WAKE# -V12 CLK_PCIE+ CLK_PCIE- PCIE_TX+ PCIE_TX- PCIE_RX+ PCIE_RX- PPC-157T User Manual... -
Page 46: Table 5.15: Cn21 (Printer Port Connector)
SLIN# ACK# BUSY SLCT Table 5.16: CN22 (LCD Light Sense Connector) Signal SMB_CLK SMB_DATA Table 5.17: CN24 (COM4 Connector) Signal Signal DCD# DTR# DSR# RTS# CTS# Table 5.18: CN25 (Front Panel LED Connector) Signal HDD_LED LAN1_ACT# LAN2_ACT# PPC-157T User Manual... -
Page 47: Table 5.19: Cn26 (Com1 Ri Function Selection Connector)
Table 5.20: CN28 (LCD Back Light Connector) Signal +V12 +V12 LCD_BKLTEN LCD_VBR LCD_DET Table 5.21: CN29 (Power Button Connector) Signal PANSWIN Table 5.22: CN34A (COM3 RS-232 serial port) Signal Signal DCD# DTR# DSR# RTS# CTS# Table 5.23: CN34B (VGA) Standard Connect PPC-157T User Manual... -
Page 48: Table 5.24: Cn35 (Internal Speaker Connector)
OUTB+ OUTB- Table 5.25: CN36 A (COM1 RS232) Pin Name COM1_DCD COM1_RXD COM1_TXD COM1_DTR COM1_DSR COM1_RTS COM1_CTS Table 5.26: CN36 B (COM2 RS232/422/485 Select by BIOS) Pin Name RS232 RS422 RS485 422_TXD- 485_Data- 422_TXD+ 485_Data+ 422_RXD+ 422_RXD- PPC-157T User Manual... -
Page 49: Table 5.27: Cn37 (Mini Din Ps2 Connector)
Table 5.29: CN42 (COM3 RI Function Selection Connector) Signal COM3_RI COM3_RI_Selection COM3_RI_Selection +V12 Table 5.30: CN43 (COM4 RI Function Selection Connector) Signal COM4_RI COM4_RI_Selection COM4_RI_Selection +V12 Table 5.31: CN44 (COM2 RI Function Selection Connector) Signal COM2_RI COM2_RI_Selection COM2_RI_Selection +V12 PPC-157T User Manual... -
Page 50: Table 5.32: Cn45 (At Power Solution Connector)
Table 5.36: CN43 (COM4 RI Function Selection Connector) (1-2) Ring Function (default) (3-4) Ring output 5 V (4-5) Ring output 12 V Table 5.37: CN44 (COM2 RI Function Selection Connector) (1-2) Ring Function (default) (3-4) Ring output 5 V (4-5) Ring output 12 V PPC-157T User Manual... -
Page 51: Table 5.38: Cn45 (At Power Selection)
Table 5.38: CN45 (AT Power Selection) (1-2) ATX power supply (default) (2-3) AT power supply PPC-157T User Manual... - Page 52 PPC-157T User Manual...
-
Page 53: Chapter 6 Driver Installation
Chapter Driver Installation This chapter gives information on installing drivers for the PPC- 157T. Sections include: Driver Installation Updating Drivers... -
Page 54: Driver Installation
Before installing the Ethernet driver, note the procedures below. It is necessary to know which operating system is installed on the PPC-157T. Then refer to the corre- sponding installation flow chart. Follow the steps described in the flow chart to com- plete the installation quickly. - Page 55 Appendix PCI Card and PCIe Size Limits This chapter details the size limits for PCI and PCIe cards that may be installed on the Panel PC moth- erboard.
-
Page 56: A.1 Pcie Interface Card
PCIe Interface Card PCI Interface Card PPC-157T User Manual... - Page 57 PPC-157T User Manual...
- Page 58 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
