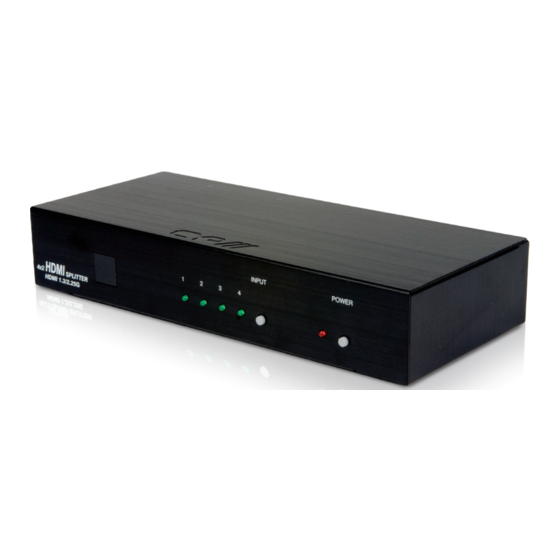

EL-42S
v1.3 HDMI 4 Way Switcher
with 2 Identical Outputs
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-42S and is the answer not in the manual?

Questions and answers

Related Manuals for CYP EL-42S

Summary of Contents for CYP EL-42S

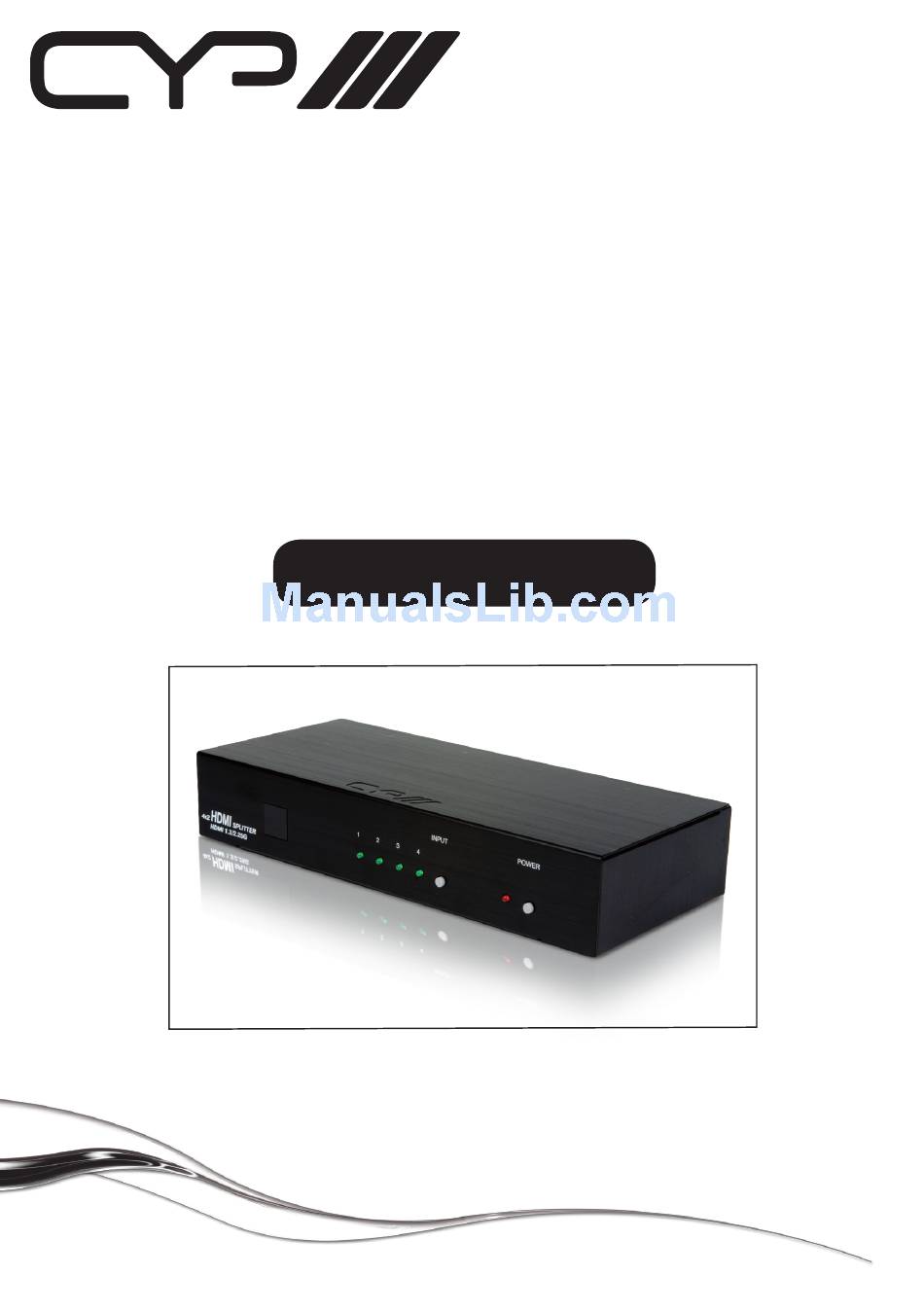

  • Page 1 EL-42S v1.3 HDMI 4 Way Switcher with 2 Identical Outputs OPERATION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications...

  • Page 3: Package Contents

    1. Introduction The EL-42S switcher allows the user to input four HDMI sources and switch between these sources to display HD content on 2 displays. This switcher can be controlled via the supplied remote control, RS-232, or by using the input switching button on the front of the device.

  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel INPUT POWER HDMI SPLITTER HDMI 1.3/2.25G 1. Remote control sensor. 2. HDMI input Select/Indicator: Press the “Input” button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which input source is selected.

  • Page 5: Remote Control

    1. HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. 2. RS232: 9-pin D-Sub connector for connecting to your PC or other control console for remote control.

  • Page 6: Rs232 Pinouts

    5. RS232 Pinouts EL-42S Remote Control Console Definition Definition EL-42S transmission format: • Baud Rate: 9600 bps • Data bit: 8 Bits Parity: None • Stop Bit: 1 bit 6. Command Sets RS 232 COMMAND Operation POWER 00 Select Power OFF...

  • Page 7: Connection Diagram

    7. Connection Diagram 7. Specifications Frequency bandwidth 2.25Gbps (single link) Input Ports 4 x HDMI female ports HDCP Version v1.1 Output Port 2 x HDMI female ports Remote Control Discrete IR remote 5V/2.6A DC (US/EU standards, CE/ Power Supply FCC/UL certified) Dimensions (mm) 240 (W) x 104 (D) x 50(H) Chassis Colour...
  • Page 8 www.cypeurope.com...
