EL-42S
v1.3 HDMI 4 Way Switcher with
2 Identical Outputs
OPERATION MANUAL
EL-42S_Manual-EN.indd 1
04/05/2011 16:23:33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-42S and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP EL-42S

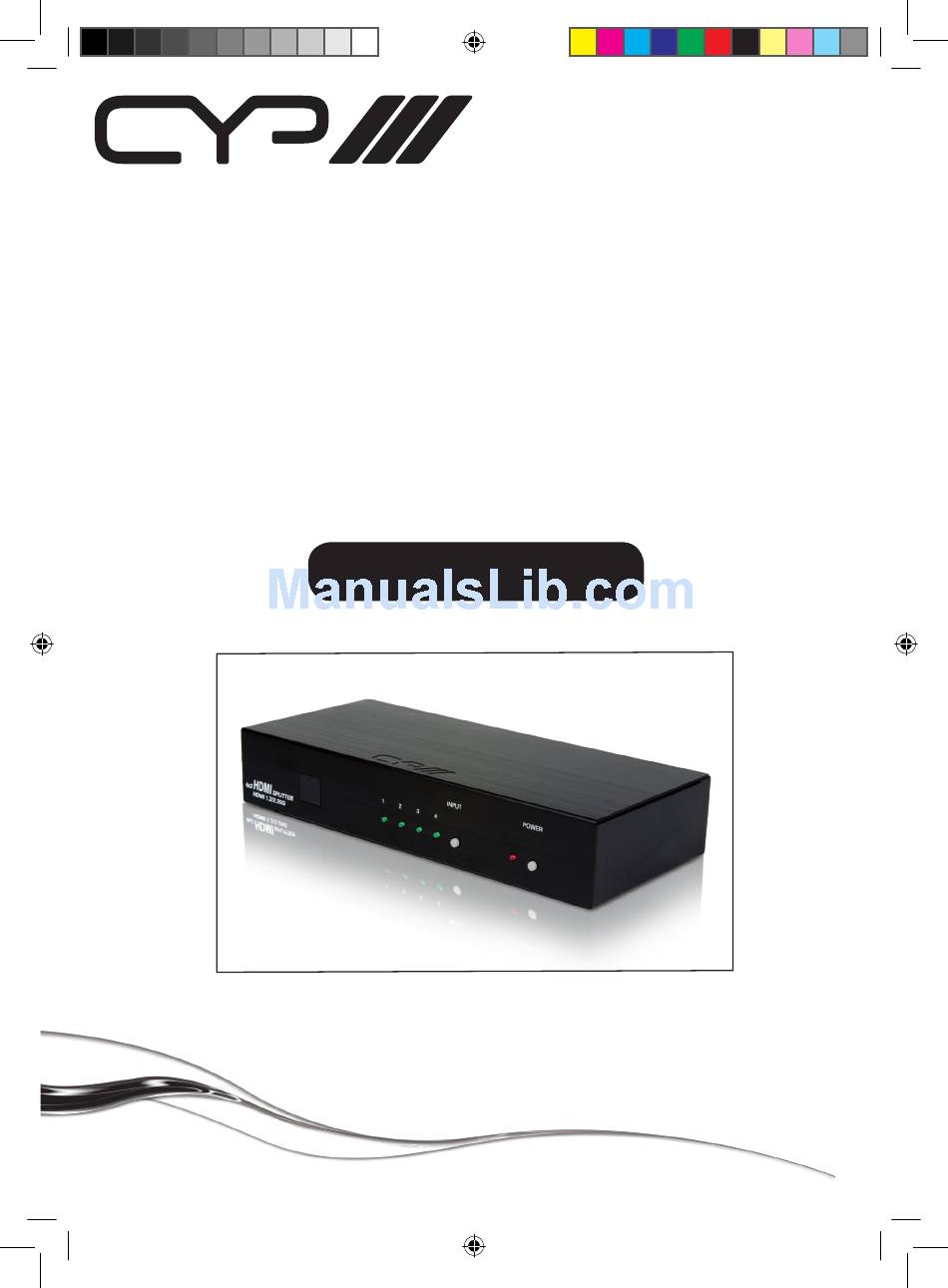

  • Page 1 EL-42S v1.3 HDMI 4 Way Switcher with 2 Identical Outputs OPERATION MANUAL EL-42S_Manual-EN.indd 1 04/05/2011 16:23:33...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications EL-42S_Manual-EN.indd 2 04/05/2011 16:23:47...
  • Page 3: Introduction

    1. Introduction The IR Extender and the Repeater set is perfect for controlling IR controlled source equipment over long distances. Up to five sources can be controlled using this extender set. Two sources can be controlled located locally to the repeater, whilst the remaining three sources can be controlled locally to the extender, which can be located up to 250m away via CAT5/6 cable.
  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel INPUT POWER HDMI SPLITTER HDMI 1.3/2.25G 1. Remote control sensor. 2. HDMI input Select/Indicator: Press the “Input” button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which input source is selected 3.
  • Page 5: Remote Control

    1. HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. 2. RS232: 9-pin D-Sub connector for connecting to your PC or other control console for remote control.
  • Page 6: Rs232 Pinouts

    5. RS232 Pinouts EL-42S Remote Control Console Definition Definition • EL-42S transmission format: • Baud Rate: 9600 bps • Data bit: 8 Bits Parity: None • Stop Bit: 1 bit 6. Commands Sets COMMAND ACTION “I” + “1” PORT 1 ON “I”...
  • Page 7: Connection Diagram

    7. Connection Diagram 7. Specifications Frequency bandwidth 2.25Gbps (single link) Input Ports 4 x HDMI female ports HDCP Version v1.1 Output Port 2 x HDMI female ports Remote Control Discrete IR remote 5V/2.6A DC (US/EU standards, CE/FCC/ Power Supply UL certified) Dimensions (mm) 240 (W) x 104 (D) x 50(H) Chassis Colour...
  • Page 8 Notes: EL-42S_Manual-EN.indd 6 04/05/2011 16:23:53...
  • Page 9 www.cypeurope.com EL-42S_Manual-EN.indd 7 04/05/2011 16:24:07...
