EL-41S-4K22

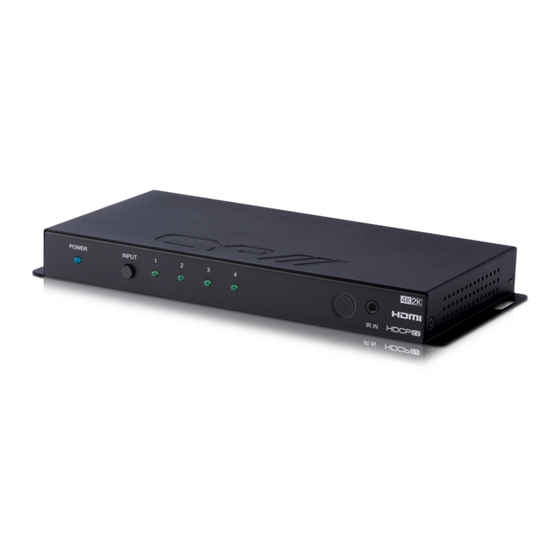

4-Way HDMI Switcher (4K, HDCP2.2, HDMI2.0, IR)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-41S-4K22 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP EL-41S-4K22

Summary of Contents for CYP EL-41S-4K22

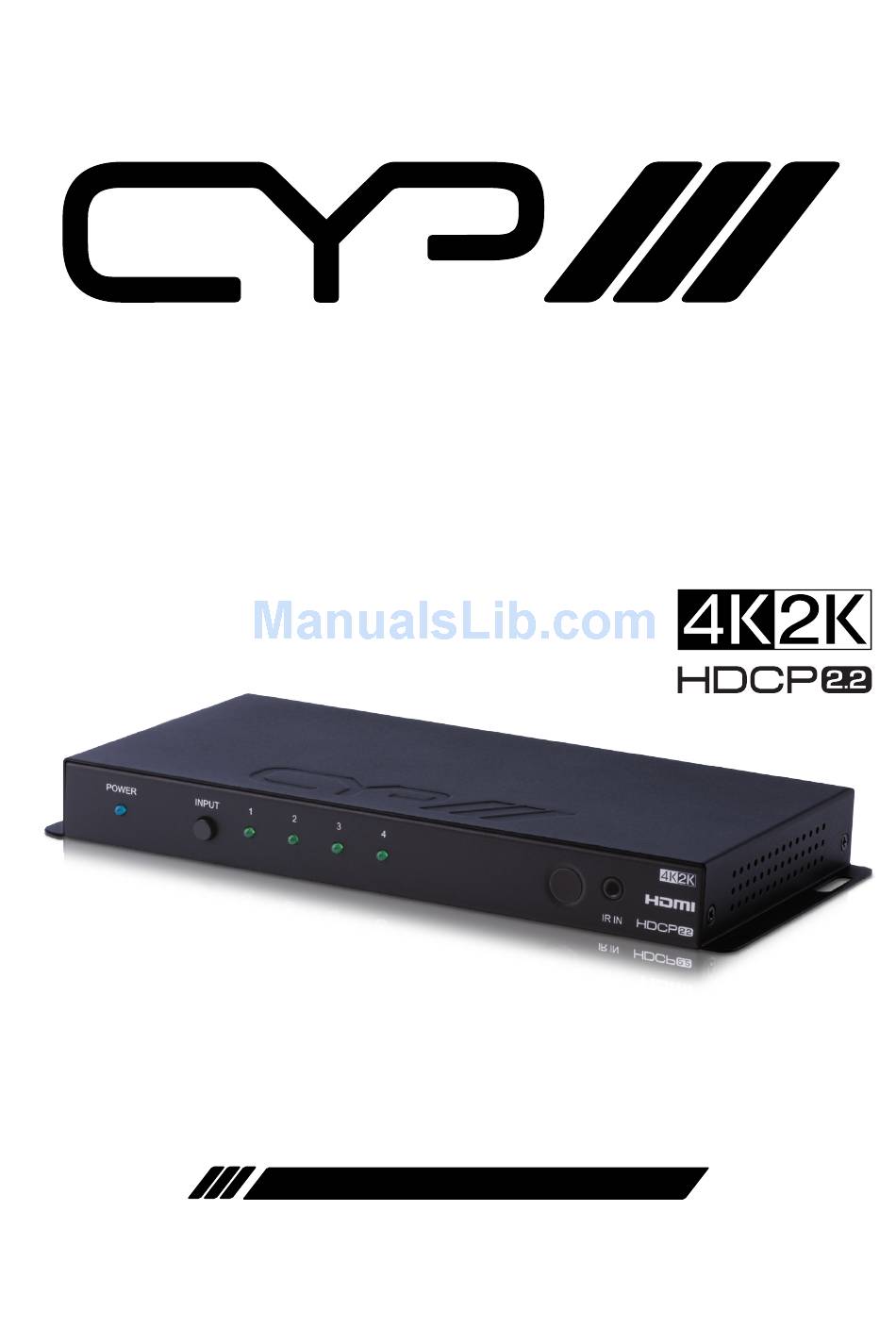

  • Page 1 EL-41S-4K22 4-Way HDMI Switcher (4K, HDCP2.2, HDMI2.0, IR) OPERATION MANUAL...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ................1 2. Applications .................1 3. Package Contents ..............1 4. System Requirements ............2 5. Features ................2 6. Operation Controls and Functions ........3 6.1 Transmitter Front Panel ..........3 6.2 Transmitter Rear Panel ...........4 6.3 Remote Control ..............5 6.4 IR Pin Defi nitions ..............5 6.5 RS-232 Protocols .............6 6.6 Telnet and RS-232 Commands(not fi...

  • Page 5: Introduction

    1. INTRODUCTION This 4 by 1 4K UHD HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit provides a high level of audio and video performance with support for resolutions up to 4K@60Hz (YUV 4:2:0) and high defi...

  • Page 6: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifi ers. • The use of “Premium High Speed HDMI” cables is highly recommended.

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel POWER POWER INPUT INPUT IR IN IR IN POWER LED: This LED will illuminate to indicate the unit is on and receiving power. INPUT: Press this button to sequentially switch through the available inputs.

  • Page 8: Transmitter Rear Panel

    6.2 Transmitter Rear Panel RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V OUTPUT: Connect to HDMI TVs, monitors or amplifi ers for digital video and audio output. INPUT 1~4: Connect to HDMI source equipment such as media players, game consoles or set-top boxes.

  • Page 9: Remote Control

    6.3 Remote Control POWER POWER: No function INPUT 1~4: Press any of these buttons to switch to the corresponding input. INPUT CR-72 6.4 IR Pin Defi nitions IR Extender IR Signal Power Grounding...

  • Page 10: Rs-232 Protocols

    6.5 RS-232 Protocols MATRIX REMOTE CONTROLLER Defi nition Defi nition ► ◄ Baud Rate: 115200bps Data bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 11: Telnet And Rs-232 Commands(Not Fi Nal Version)

    6.6 Telnet and RS-232 Commands(not fi nal version) Command Name Description Parameters Switch Output A to Input N N=1~4 Switch Output B to Input N N=1~4 Switch Output C to Input N N=1~4 Switch Output D to Input N N=1~4 Switch All Output to Input N N=1~4 AB…..N...

  • Page 12: Telnet Control

    6.7 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search fi eld, then press “Enter”. Under Windows XP go to the “Start”...

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player HDMI IN RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V 6GHDMI TV/Display Projector...

  • Page 14: Specifi Cations

    8. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Input Ports 4 x HDMI 1 x IR 1 x RS232 1 x Mini USB (Service) 1 x RJ45 (Control) Output Ports 1 x HDMI Supported Resolutions VGA~WUXGA 480i~1080p@60Hz 4K@24/25/30Hz (YUV 4:4:4) 4K@50/60Hz (YUV 4:2:0) HDMI Cable I/O Distance* 5M (4K@60Hz, YUV 4:2:0, 8-bit) 10M (1080p@60Hz, 8-bit) IR Frequency...

  • Page 15: Timing

    9. TIMING DVI AND HDMI SUPPORTED RESOLUTIONS (HZ) INPUT OUTPUT 640x480@60/72/75/85   800x600@56/60/72/75/85   1024x768@60/70/75/85   1280x1024@60   1366x768@60   1600x1200@60   1920x1080@60   1920x1200@60   720x576i@50   720x480i@59.94/60   720x480p@59.94/60 ...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
