CYP EL-42SA Operation Manual

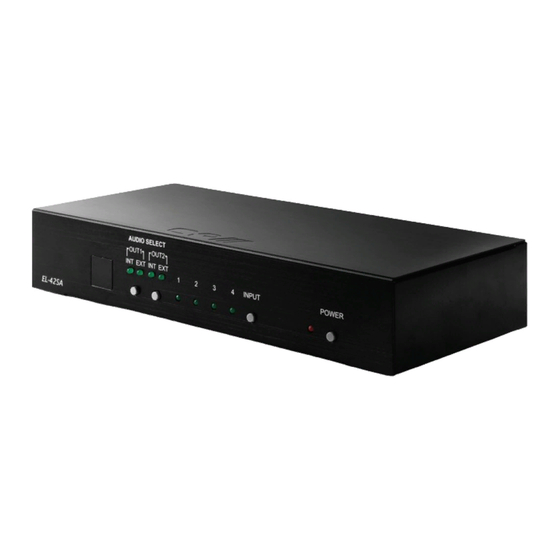

V1.3 hdmi 4 by 2 switcher with analogue audio routing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EL-42SA
v1.3 HDMI 4 by 2 Switcher
with Analogue Audio Routing
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-42SA and is the answer not in the manual?

Questions and answers

Related Manuals for CYP EL-42SA

Summary of Contents for CYP EL-42SA

  • Page 1 EL-42SA v1.3 HDMI 4 by 2 Switcher with Analogue Audio Routing OPERATION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications...

  • Page 3: Introduction

    1. Introduction The EL-42SA switcher from the Elector Range, is compatible to v1.3 HDMI specifications, supporting up to 12 bit Deep Colour together with High Definition audio. This switcher features additional analogue audio inputs for each of the four HDMI inputs. It has dual HDMI output which can be separately configured for audio routing, either internal (HDMI audio) or external (analogue stereo audio).

  • Page 4: Operation Controls And Functions

    OUT2 EXT INT EXT INPUT POWER EL-42SA 1. Remote control sensor. 2. Audio Select: Allows user to select the desired audio output (either from R/L or HDMI input) with an HDMI input connection. 3. HDMI input Select/Indicator: Press the “Input” button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will turn on to indicate which input source is selected.

  • Page 5: Remote Control

    1. HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI display. When more than one output is connected, the HDMI outputs play an identical video signal. 2. RS-232: 9-pin D-Sub connector for connecting to your PC or other control console for remote control.

  • Page 6: Rs232 Pinouts

    5. RS232 Pinouts EL-42S Remote Control Console Definition Definition • EL-42S transmission format: • Baud Rate: 9600 bps • Data bit: 8 Bits Parity: None • Stop Bit: 1 bit 6. Commands Sets ACTION COMMAND “I” + “1” PORT 1 ON “I”...

  • Page 7: Connection Diagram

    7. Connection Diagram 7. Specifications 4 x HDMI, 8 x RCA (4 x Analogue Input Ports Stereo). HDCP Version v1.1 Output Port 2 x HDMI HDMI Specification v1.3 Frequency bandwidth 2.25Gbps 5V/2.6A DC (US/EU standards, CE/ Power Supply FCC/UL certified) Dimensions (mm) 240 (W) x 104 (D) x 50(H) Chassis Colour...
  • Page 8 Notes:...
  • Page 9 www.cypeurope.com v1.01...
