  • Page 1 EL-41SY 4 in, 1 out v1.3 HDMI Switcher OPERATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control Connection Diagram Specification Finden Sie ab Seite 7.
  • Page 3: Introduction

    1. Introduction The EL-41SY is a high performance HDMI switcher with IR control. It allows you to connect up to four hdmi sources to a single hdmi input on a HDTV. A simple remote control selects your required HDMI source for display on the HDTV.
  • Page 4: Operation Controls And Functions

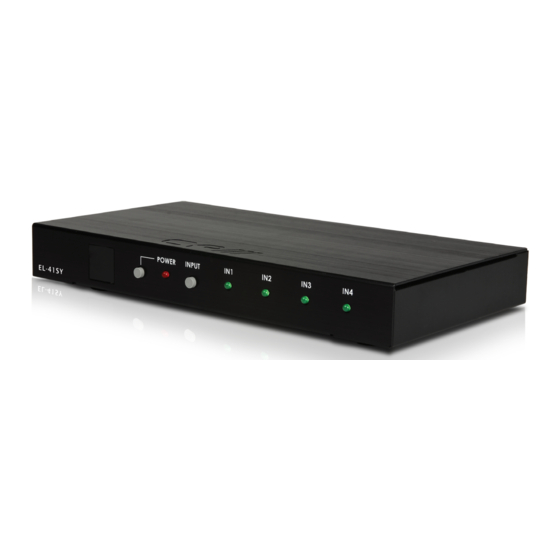

    4. Operation Controls and Functions 4.1 Front Panel POWER INPUT EL-41SY 1. Remote control sensor. 2. Power LED Indicator/ Power Button: The LED will illuminate when the power is turned on. Press the power button to switch the unit On/Off.
  • Page 5: Remote Control

    4.2 Rear Panel DC 5V OUTPUT 1. HDMI output: Connect the HDMI output of the unit to the HDMI input of your display using a HDMI cable. 2. HDMI inputs: Connect your various HDMI sources to the 4 HDMI inputs using HDMI cables. 3.
  • Page 6: Connection Diagram

    6. Connection Diagram Page 4...
  • Page 7: Specification

    7. Specifications Input Ports 4 x HDMI female ports HDCP Version v1.1 Output Port 1 x HDMI female port HDMI Specification v1.3 Frequency bandwidth 2.25Gbps Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL Certified) Dimensions (mm) 200 (W) x 104 (D) x 25(H) Chassis Colour Black Chassis Material...
