Evaluation board objectives
1.3

Targeted applications

Target applications include all applications using a diode-bridge to rectify the line AC
voltage and require the removal of the NTC (or PTC) resistor and the limitation of standby
losses. Such applications include:

telecom power supplies

televisions, DVD and CD players, set-top boxes, etc.

computers

lighting equipment
This demo board is also particularly interesting for applications where AC loads have to be
controlled, such as for valves, fans, pumps, heating resistors, etc. Such applications
include:

wet appliances (washing machines; dish machines; laundry dryers)

cold appliances (fridges, freezers)

air conditioning units
1.4

Main part numbers

The main part number references used in this demo board are:

Microcontroller Unit (MCU): STM8S103K3

Flyback IC: VIPER26LD

Inrush current limiter Triac: T1635T-8FP or ACST1635-8FP (pin-to-pin compatible with
T1635T-8FP, SIOV1 can be removed)

AC loads AC switches:


4/37
T1: ACST210-8FP (TO-220FPAB package)
T2 and T3: ACS108-8SN (SOT223 package)
DocID029048 Rev 1

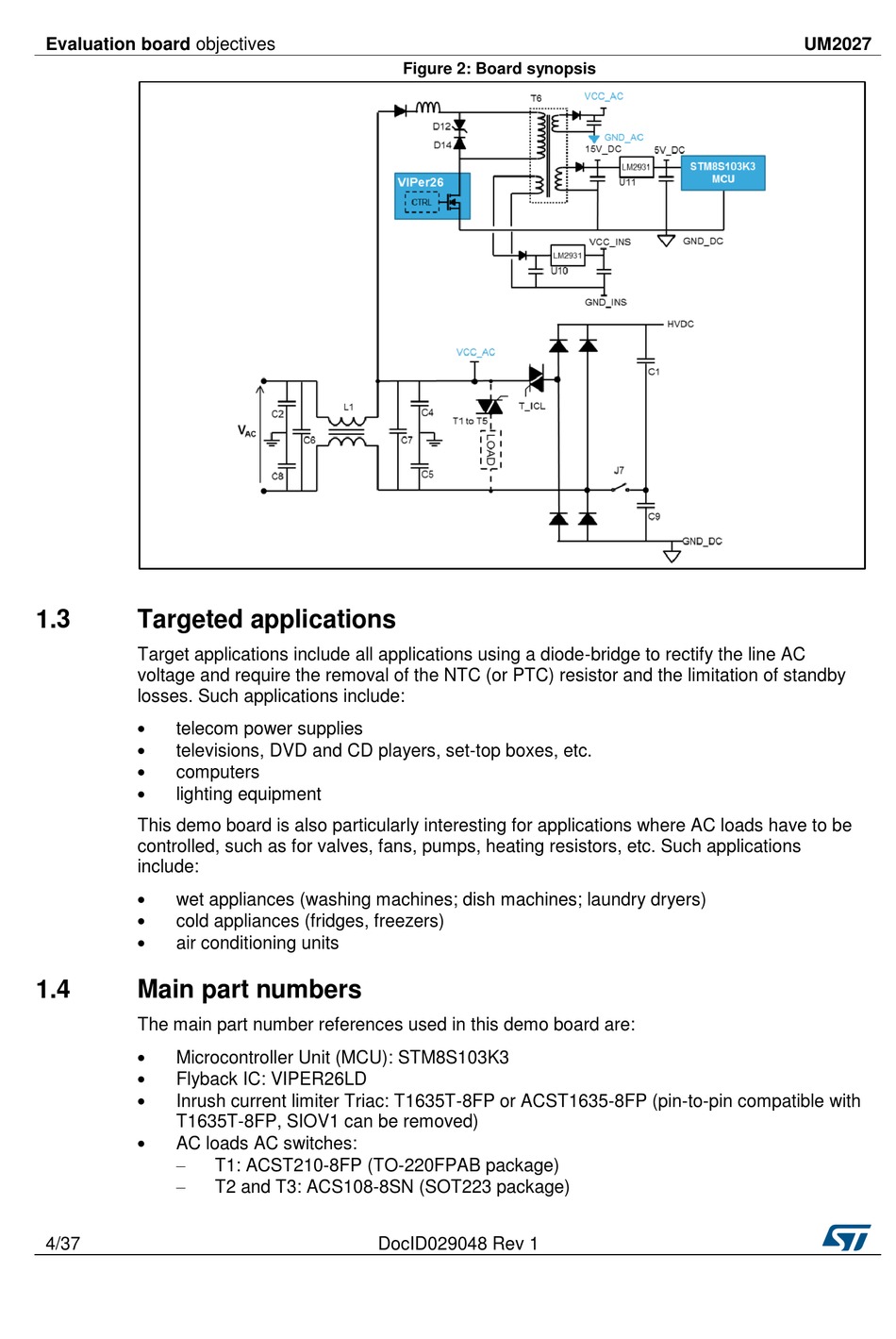

Figure 2: Board synopsis
