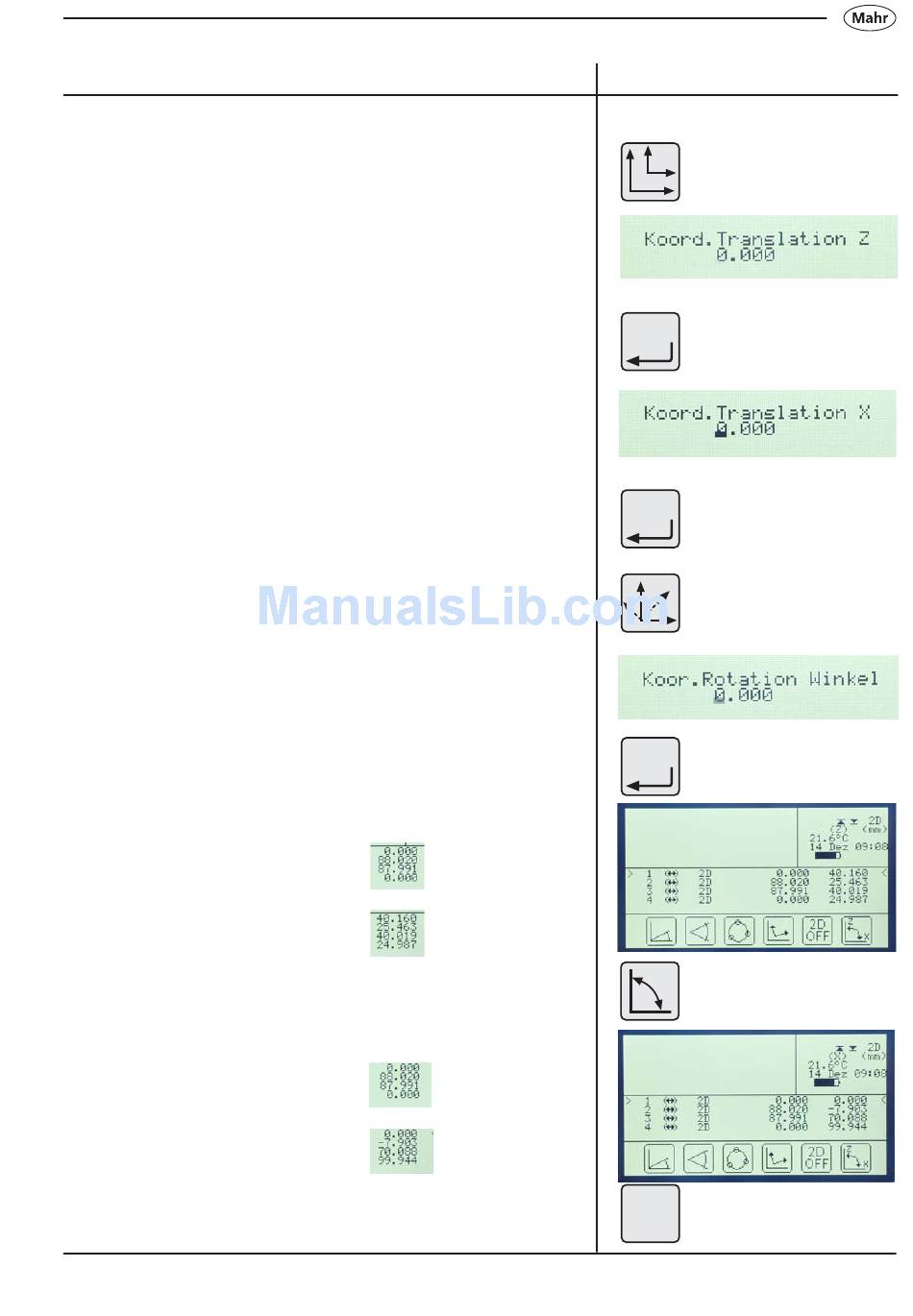

Mahr Digimar 817 CLM Operating Instructions Manual page 69

Description / Sequence
2. Input the coordinate of the second characteristic (bore hole 4)
in the X and / or Z to calculate the rotation angle
(The desired values in a drawing)
– Enter the Z value according to the drawing for the second
characteristic (bore 4)
– Confirm by pressing the ON/OFF key
– Enter the X value according to the drawing for the second
characteristic (bore 4)
– Confirm by pressing the ON/OFF key
3. Enter the rotation angle
Clockwise rotation = Positive angle
Anti-clockwise rotation = Negative angle
– Confirm by pressing the ON/OFF key
View
of the Z-axis
and the diameter
– Tilt the workpiece back into its original position
(Change the view to the X-axis)
View
of the Z-axis
of the X-axis
– To exit the 2D mode press the 2D OFF key
Mahr GmbH • Digimar 817 CLM
Symbols / Pictures
X
Z
ON
OFF
ON
OFF
a
ON
OFF
z
x
2D
OFF
