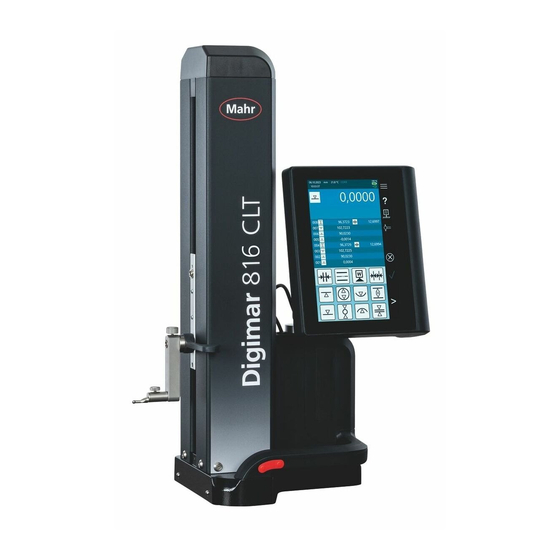

- Page 1 Operating manual Digimar 817 CLT Digimar 816 CLT 3722979 0824 Mahr GmbH · Carl-Mahr-Straße 1 · 37073 Göttingen · Tel.: +49 551 7073 0 · info@mahr.com, www.mahr.com...
-
Page 3: Permitted Uses
Bluetooth ® SIG, Inc, which has licensed the use of these brands by Mahr GmbH. Other brand names and trade names are the property of their respective owners. Mahr GmbH, Digimar 817 CLT / 816 CLT... - Page 4 Thank you for placing your trust in us by purchasing this product. Update The latest version of the software, firmware, and quick guide is available to download on our homepage (Mahr.com/products/). Please note the relevant notes about the version when updating software and firmware. Updated...
-
Page 5: Safety Instructions
Any extension cables must meet the stipulations of the VDE (German Association for Electrical, Electronic & Information Technologies). 9. Only Mahr-trained service personnel are permitted to carry out work on this instrument. Protective covers must only be removed by trained technicians and only when servicing is required. - Page 6 It could fall off the plate and injure the user. 13. The height measuring instrument must only be transported in its original packaging. Otherwise the warranty will be void. Mahr GmbH, Digimar 817 CLT / 816 CLT...
-
Page 7: Table Of Contents
4.1.2 Basic settings ......19 Alphabetical index ..... 33 4.2 Reference point run......20 4.3 Calibrate the probe ......20 4.4 Zero point on the measuring plate ..21 4.5 Workpiece zero point ......21 Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 8: General Information
E Setting normal wirelessly and by wired connection using the F Cylinder head screws and Allen key MarConnect duplex interface. G AC adapter with plug adapter H Protective cover I Blind caps Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 9: Assembly And Setup
180° Unpack the columns of the height measuring instrument 350 mm 25 kg 30 kg 600 mm 35 kg) (1000 mm Remove the guard bracket 2x ( I ) Mahr GmbH, Digimar 817 CLT / 816 CLT... - Page 10 Unpack the AC adapter Insert the battery 90° Euro click – Secure and connect the control panel Mahr GmbH, Digimar 817 CLT / 816 CLT...
- Page 11 Connect the AC adapter 100-240 V ~ / 50-60 Hz ~ 6,5 h Mahr GmbH, Digimar 817 CLT / 816 CLT...
-
Page 12: Elements Of The Measuring Instrument
2.1 On/off switch instrument There is an on/off switch for the height measuring instrument above the control panel. The height measuring instruments Digimar 817 CLT and Digimar 816 CLT comprises the following elements: Fig. 2 On/off switch 2.2 Control panel The control panel features a swivel and tilt joint on the Digimar 817 CLT and only a tilt joint ión... -
Page 13: Measuring Slide
The carrier for the measuring anvils can be used to hold different anvils. The instrument comes with standard holder 817 h1 and measuring probe K5/51. Other carriers and measuring anvils are available as accessories. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 14: Thumbwheel
The button and the handles help to move the height measuring instrument properly. Fig. 6 Handles for moving the measuring instrument (The image shows the Digimar 8127 CLT.) Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 15: Ports
− USB Bluetooth stick for USB printer − I-stick for MarCom software • Mini USB socket For connecting wireless measuring value transfer via MarCom software. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 16: User Interface Of The Digimar Software
Opens the "Settings" menu for defining the software settings. Switches the context-sensitive online help on or off. Allows you to set zero points. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 17: Information Area
2 Current measuring value 3 Measuring value list 4 Function key bar When measuring program mode is activated, elements for managing measuring programs and results files are displayed in the information area. Mahr GmbH, Digimar 817 CLT / 816 CLT... - Page 18 Digimar 817 CLT.) Set X-value and Z-value to zero, e.g. Enable measuring program mode in "perpendicularity measurement" Output measuring results as measuring record file in PDF format Output measuring results as Text file Mahr GmbH, Digimar 817 CLT / 816 CLT...
- Page 19 Copies all results files to the connected USB memory stick Angle between two straight lines Intersection point Distance Output measuring results as measuring record file in PDF format Output measuring results as Text file Mahr GmbH, Digimar 817 CLT / 816 CLT...
- Page 20 "Groove" measuring function "Ledge" measuring function "Bore center" measuring function Function "Base zero point measuring plate" "Distance calculation" calculation function "Symmetry calculation" calculation function "Delay" function "Set zero point workpiece" calculation function Mahr GmbH, Digimar 817 CLT / 816 CLT...
-
Page 21: Commissioning
"Settings" menu. The settings options are explained in detail in the online help of the Digimar software. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 22: Reference Point Run
• Manually position the measuring probe to the relevant height for the calibration process, e.g. to the height of the groove center of the setting gage when the "Calibrate with groove" function is selected. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 23: Zero Point On The Measuring Plate
Zero point 01 workpiece Zero point 02 workpiece Zero point 03 workpiece (Only available on the Digimar 817 CLT.) • Press the button in the menu bar to set the workpiece zero point. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 24: Measuring Methods
The graph can be switched on or off by pressing the button. The individual measuring functions in 2D mode are explained in detail in the online help of the Digimar software. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 25: Quick Mode
A measurement in quick mode can be aborted at any time by pressing the button in the menu bar of the user interface. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 26: Measuring Program Mode
Text files. The online help of the Digimar software explains in detail how to create and output PDF and Text files. Fig. 14 "Programs" screen (The image shows the Digimar 8127 CLT.) Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 27: Annex
The air bearings can be cleaned with Never short-circuit the battery. There methylated spirits (alcohol). is a risk of fire and explosion! The height measuring instrument should always be operated with the battery inserted. Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 28: Technical Data
Supply voltage / mains frequency 110 - 230 V AC / 50 - 60 Hz Operating time, maximum 14 h Battery voltage 7.2 V Battery capacity 11500 mAh Rechargeable battery type Lithium-ion battery Protection rating IP40 Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 29: Digimar 816 Clt
Supply voltage / mains frequency 110 - 230 V AC / 50 - 60 Hz Operating time, maximum 14 h Battery voltage 7.2 V Battery capacity 11500 mAh Rechargeable battery type Lithium-ion battery Protection rating IP40 Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 30: Device Information
255 x 278 x 938 255 x 278 x 1338 Fig. 15 Instrument dimensions A 89.2 mm B 278 mm C 77 mm D 255 mm E 688 mm | 938 mm | 1338 mm F 0 - 350 mm | 0 - 600 mm | 0 - 1000 mm Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 31: Accessories
4305850 Measuring anvil 800 ts KM 2, TMT 120, TMT 120 S ø 2.0 mm, carbide, l = 14.5 mm 4305871 Measuring anvil 800 ts KM 2, TMT 120, TMT 120 S ø 3.0 mm, carbide, l = 14.5 mm 4309051 Measuring anvil 800 tsr KM 2, TMT 120, TMT 120 S ø 2.0 mm, ruby, l = 14.5 mm Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 32: Spherical Probe
Carrier 817 h4 ø 10.0 mm, carbide 5.6.5 Disc and cylindrical measuring anvils Order no. Description Type Holder Suitable for 4429226 Disc measuring anvil S15/31.2 ø 6 mm Carrier 817h1/-h2 ø 15 mm 4429227 Cylinder measuring Z10/31.2 ø 6 mm Carrier 817 h5 anvil ø 10 mm Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 33: Conical Measuring Anvils
Depth probe, pivotable TMT 120 S ø 6 mm – 3015918 Probe shoe, TS 0.5/78 ø 4 mm Holder Gk/8 d = 0.5 mm, l = 78 mm 3015919 Stylus/stylus tip, T 1.2/75 ø 4 mm Holder Gk/8 d = 1.2 mm, l = 75 mm, ls = 15.5 mm 4429256 Probe holder incl. KM 2 Carrier 817h1/h2 measuring anvil ø 2.0 mm Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 34: Other Accessories
USB adapter for MarConnect Wireless i-stick 4221525 Test plate made of granite, 1,000 x 630 mm 107 G 4221573 Safety frame, 1,000 x 630 mm 107 Ug 4221526 Test plate made of granite, 1,200 x 800 mm 107 G 4221574 Safety frame, 1,200 x 800 mm 107 Ug 7034001 Demo workpiece Mahr GmbH, Digimar 817 CLT / 816 CLT... -
Page 35: Alphabetical Index
Positioning handle ........11, 23 Position probe quickly ........12 Probe constant ..........20 Function key bar ........15, 22 "Programs" screen ......... 24 Quick measurement function keys .... 11 Quick mode ............. 23 Mahr GmbH, Digimar 817 CLT / 816 CLT... - Page 36 USB sockets ........... 13 User interface .......... 14, 19 Workpiece zero point ........21 Zero point ............20 Zero point offset ........20, 21 Zero point on the measuring plate ..... 21 Mahr GmbH, Digimar 817 CLT / 816 CLT...
