MERRY FISHER 6 MARLIN
OWNER'S MANUAL
947543
Index B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MERRY FISHER 6 MARLIN and is the answer not in the manual?

Questions and answers

Calvin Martin
July 1, 2025

Can you keep this boat on a drying mooring

0

Related Manuals for Jeanneau MERRY FISHER 6 MARLIN

Summary of Contents for Jeanneau MERRY FISHER 6 MARLIN

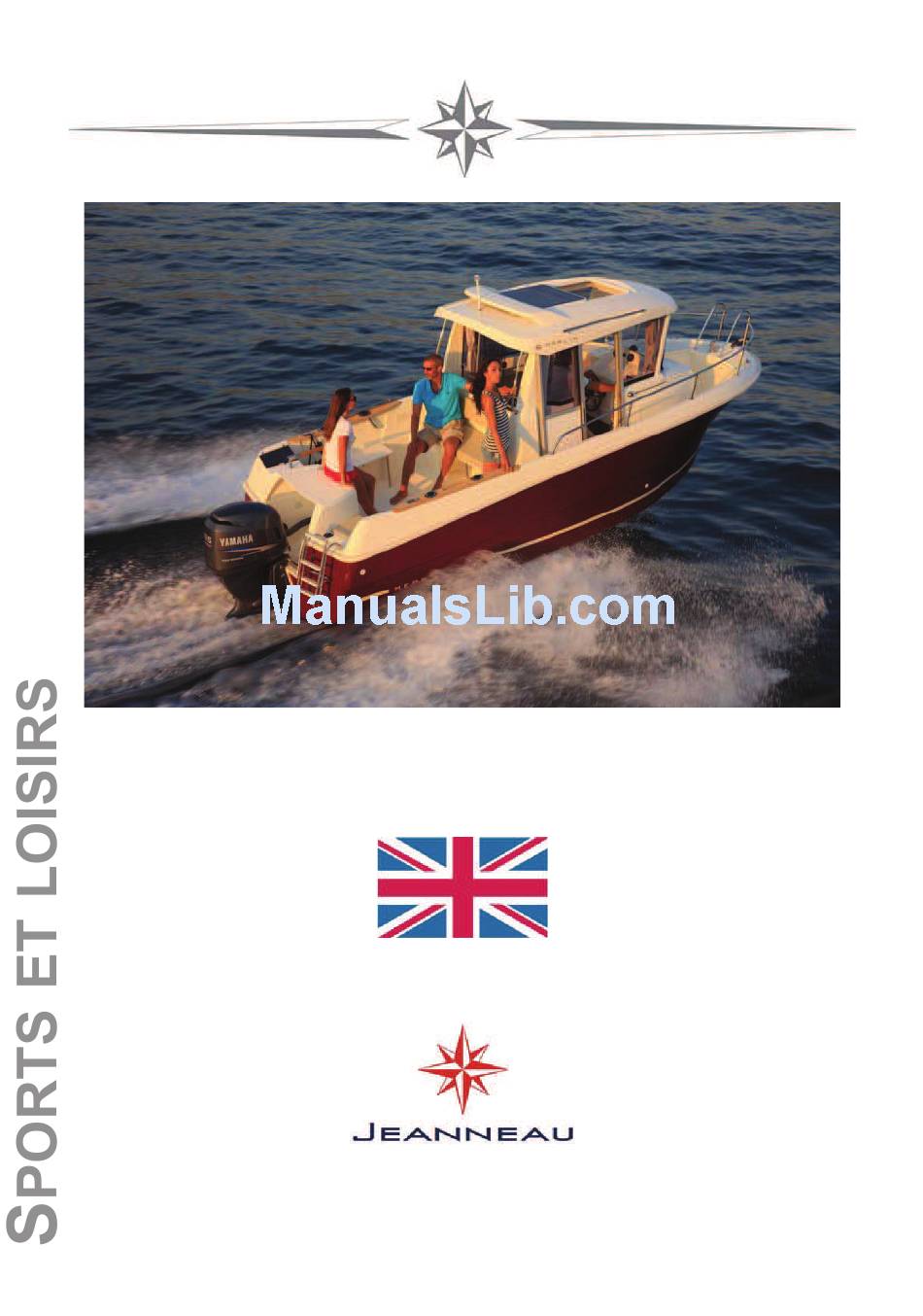

  • Page 1 MERRY FISHER 6 MARLIN OWNER'S MANUAL 947543 Index B...

  • Page 3: Chapter 2 ...... Safety

    The whole JEANNEAU team welcomes you aboard. A JEANNEAU is made to last, in order to bring you all the pleasure you expect from a vessel over a period of many years. Each boat is subject to the utmost attention to detail from the design stage right through to launching.
  • Page 5 This user guide/owner's manual is not a maintenance or repair guide. In case of difficulty do not hesitate to call on the services of your concessionaire JEANNEAU. Any alterations which may affect the safety specifications of the boat must be assessed, carried out and recorded by persons qualified to do so.
  • Page 6 Anyone on the deck shall wear a life jacket or a buoyancy aid. The safety regulations as defined by the sailing code and enforced by the ’’COLREG’’ should be observed. NAME PLATE: Some of the data is shown on the manufacturer's plate fixed to the boat. The explanation of the data is given in the appropriate chapters of this manual.
  • Page 7 HISTORY OF UPDATES •Index A ........................11/2010 •Index B ........................03/2011 3/80...

  • Page 9: Table Of Contents

    CONTENTS MERRY FISHER 6 Marlin Anglais Code: 947543 Total number of pages: 80 Update 03/2011 Index B INTRODUCTION Chapter 1 ..SPECIFICATIONS AND WARRANTY..........Page 7 Chapter 2 ..SAFETY ..................Page 13 Chapter 3 ..HULL .....................Page 27 Chapter 4 ..DECK ....................Page 31...

  • Page 11: Warranty

    SPECIFICATIONS AND WARRANTY TECHNICAL SPECIFICATIONS CERTIFICATION DESIGN CATEGORY YOUR BOAT 7/80...

  • Page 12: Chapter 3 ...... Hull

    Maximum motorisation mass ..................190 kg Battery capacity ......................110 A Cabins..........................1 Note: The capacities indicated are maximum (including options). Architect.................Bureau d'Etudes JEANNEAU Design..................CENTKOWSKI & DENERT The engine is the main propulsion means of the MERRY FISHER 6 Marlin. 8/80...

  • Page 13: Design Category

    Up to and including 4 D - "In sheltered waters" Up to and including 6 Up to and including 2 Up to and including 4 Up to and including 0,3 The MERRY FISHER 6 Marlin model conforms to the directive 2003/44/CE. 9/80...
  • Page 14 Category A: At high sea This craft is designed to operate in winds that may exceed wind force 8 (Beaufort scale) and in significant wave heights of 4 m and above. This craft is largely self-sufficient. Abnormal conditions such as hurricanes are excluded. Such conditions may be encountered on extended voyages, for example across oceans, or inshore when unsheltered from the wind and waves for several hundred nautical miles.
  • Page 15 ............. ENGINE KEY NUMBER ............. Your agent JEANNEAU (Establishment of the company SPBI) BP 529 - 85505 LES HERBIERS cedex - FRANCE Tel. (33) 02 51 64 20 20 - Fax (33) 02 51 67 37 65 Internet : http://www.jeanneau.com(fr).

  • Page 17: Safety

    SAFETY SAFETY EQUIPMENT GENERAL INFORMATION FIGHT AGAINST FIRE BILGE PUMP SYSTEM INSTRUCTIONS IN THE EVENT OF STEERING GEAR FAILURE 13/80...

  • Page 18: Safety Equipment

    SAFETY EQUIPMENT Swimming ladder (means of coming back onboard) Reference 1 Position of the liferaft (not supplied) Reference 2 SWIMMING LADDER FASTENER Reference 1 LIFERAFT Reference 2 14/80...

  • Page 19: Chapter 4 ...... Deck

    GENERAL INFORMATION DANGERS The major hazards concern: - The electrical system. - The handling of the vessel. - The motorisation. Please refer to the relevant paragraphs. DANGER - Fuel leaks or vapour represent a danger of fire and explosion. - Leave the engine compartment ventilated for a long time before starting the engine.
  • Page 20 EMERGENCY EVACUATION AND LOCATION OF EXTINGUISHERS Emergency exits in case of fire: Sliding hatch Position of portable extinguishers (not supplied): Wheelhouse 16/80...
  • Page 21 Location - Extinguisher access hole: Compartment tank - Petrol A pictogram helps to locate it easily 17/80...
  • Page 23 FIGHT AGAINST FIRE It is the owner's or the skipper's responsibility: - To have the extinguishers checked in pursuance of the instructions given. - Use extinguisher replacements with equivalent features (same capacity and fire resistance) if the ones in place are out of date or have been used. - To tell the crew: - where the extinguishers are and how they work, - The location of the discharge opening in the reservoir compartment,...
  • Page 24 EXTINGUISHERS The extinguishers are part of the compulsory equipment. An extinguisher or a fire blanket shall be set less than 2 m from any flame appliance. Other locations are possible, the extinguishers shall be less than 5 m from all the berths. An extinguisher shall be compulsorily set less than 2 m away from the extinguisher aperture.
  • Page 25 SUPPLY VALVE - FUEL Location - On the fuel tank HOW TO APPLY IN CASE OF FIRE COMPARTMENT FUEL TANK: - Stop the engine. - Inject the extinguishing product through the aperture.. - Wait. 21/80...

  • Page 26: Safety Precautions

    MANUAL BILGE PUMP Location Operation Capacity: 40,5 litre / minute WARNING - The bilge pump system is not designed to provide buoyancy to the boat in case of damage. - The bilge pump system is designed to drive out the water being either sea spray or leaks but absolutely not the water coming through a hole in the hull, this hole being the result of a damage.

  • Page 27: Bilge Pump System

    BILGE PUMP SYSTEM PROCEDURE TO BE FOLLOWED - Switch on the electric bilge pump. - If necessary activate the manual pump. - Identify the source of the leak by tasting the water and decide on the relevant action to be taken: •...
  • Page 28 SCHEMA - BILGE PUMP SYSTEM 1. Drainage - Mooring locker 2. Bilge pump system - Compartment tank 3. Cockpit drain 4. Electric bilge pump 5. Drainage - Electric bilge pump 6. Manual bilge pump 7. Drainage - Manual bilge pump 8.
  • Page 29 INSTRUCTIONS IN THE EVENT OF STEERING GEAR FAILURE - Stop the engine. - Drop anchor to avoid drifting. - Find out if you can solve the problem yourself by looking at the engine manual. - Request help. 25/80...

  • Page 31: Hull

    HULL MAINTENANCE OF THE HULL LIFTING 27/80...
  • Page 32 LIFTING WETTED AREA: 11 M² Note: Measurements are expressed in mm. PRECAUTION - Consult the harbourmaster's office to find out the conditions of water use and the maintenance area for cleaning your vessel. - It is necessary to seek the advice of your concessionnaire with regard to gel-coat repairs.
  • Page 33 MAINTENANCE OF THE HULL The materials and equipments of your boat have been selected because of their high quality and performance and ease of maintenance. However you shall carry out a minimum maintenance in order to protect your boat from outside attacks (salt, sun, electrolysis ...).

  • Page 35: Deck

    DECK NAVIGATION - DECK LAYOUT MOORING LINES TOWING STABILITY PREVENTION OF MAN OVERBOARD GROUND TACKLE MAINTENANCE OF THE DECK 31/80...
  • Page 36 NAVIGATION - DECK LAYOUT A. Mooring cleats aft - Jack-lines to be fixed to the mooring cleats B. Towing: - at the bow, to be towed - at the stern, to tow C. Swimming ladder (means of coming back onboard) D.

  • Page 37: Mooring Lines

    MOORING LINES A sufficient number of mooring lines suitably sized and suitable for the environment shall be on board for mooring your boat. - Always manoeuvre your boat using the engine. - Make allowance for the current and wind when you handle your boat. - Protect your boat to the highest degree with suitably sized fenders.
  • Page 38 Window lock - Opening / Closure Sliding hatch To be kept closed when sailing Access Cockpit - Open Access Cockpit - Closed Danger: It is essential that the door remains closed while sailing Rod holder Sun roof 34/80...
  • Page 39 Removable seating - Cockpit Samson post The only function of the samson post is to support the navigation light. Any other use is dangerous and forbidden. 35/80...
  • Page 40 STABILITY Breaking waves represent a serious danger for stability and for taking in water. Close the companionway doors and hatches in heavy seas. During sailing keep all the portholes, windows and doors closed. - The stability is reduced when you add weight in the upper parts. - Stability may be reduced when towing a boat or when heavy weights are lifted with the davits.
  • Page 41 Mooring locker 37/80...
  • Page 42 Aquarium Location: Cockpit 38/80...
  • Page 43 GROUND TACKLE As a rule, set the anchor in at least 3 times the depth of water. ANCHORING WITHOUT WINDLASS - Have your boat pointed into the wind and without speed. - Pay out the chain while moving back slowly. - Once the anchor snags, make it fast by reversing slightly.
  • Page 45 - Thoroughly and frequently wash off the pulleys and sheaves with clear water. - Clean and polish with "Rénovateur chrome et inox Jeanneau" (supplied in the maintenance case) the stainless steel parts that may have small rusty spots or minor...

  • Page 47: Chapter 5 ...... Steering System

    STEERING SYSTEM STEERING GEAR 43/80...
  • Page 48 LOCATION - STEERING 1. Outboard 2. Steering wheel 3. Control lever 4. Hydraulic steering 5. Control cables 6. Steering rack 7. Watertight bellows 8. Watertight bellows 9. Control lever - Optional equipment 10. System - Tiller 11. Tiller 12. Connections 13.

  • Page 49: Steering Gear

    STEERING GEAR STEERING AND TURNS - The steering only works when the engine is running. It is impossible to make a turn without using the accelerator. - To turn, reduce speed, turn the wheel and then accelerate sufficiently to make the turn. - It stops under the effect of water resistance when the accelerator is released.
  • Page 50 Tiller Location 46/80...

  • Page 51: Interior

    INTERIOR INTRODUCTION INTERIOR MAINTENANCE MAINTENANCE OF FABRICS 47/80...
  • Page 52 INTRODUCTION DECK INTERIOR ACCOMMODATION Fishing rod storage 48/80...
  • Page 53 INTERIOR MAINTENANCE INTERIOR - Take advantage of the fine weather to take the settee and berth cushions out. - Put the cushions vertically if you leave the boat for long. - Use blinds to protect the inside of the boat against UV rays. - Carefully remove all crumbs.
  • Page 54 Pivot system - Pilot seat 50/80...
  • Page 55 100% POLYESTER/DRALON JACQUARD If you cannot remove the fabric: - Clean with the vacuum cleaner. - Clean with a foam for synthetic fabrics (please refer to the product instructions). If you can remove the fabric: - Hand wash with an ordinary washing powder at 30° C. In both cases, dry cleaning is possible.

  • Page 57: Chapter 7 ....... Electrical Equipment

    ELECTRICAL EQUIPMENT 12 V DC SYSTEM EQUIPMENT 53/80...
  • Page 58 ELECTRICAL CIRCUIT, 12 VDC GENERAL RECOMMENDATIONS - Never work on a live electric fitting. - The batteries must be strongly fastened. - Do not block the battery ventilation ducts, some of them may give off hydrogen which represents a danger of explosion. - The batteries must be handled with care.
  • Page 59 ELECTRICITY - LOCATION 11, 12 11, 12 19 20 12 V 1. Battery - 12 V 12. Fuel gauge indicator 2. Battery switch - Positive - insulated 13. Tachometer 3. Switches 14. Electric bilge pump 4. Wiper motor 15. Starting - Engine 5.
  • Page 60 Wiper Access to the engine 12V: Wheelhouse Location Control: Wheelhouse 56/80...
  • Page 61 LOCATION BATTERY SWITCH 57/80...
  • Page 62 BATTERY The a.c. generator connected to the engine is used to charge the battery. Location: Compartment tank - Petrol Capacity: 12V 110A Keep the batteries charged enough (essential to ensure them a correct service life). Always check the condition of the batteries and charge system before putting to sea WARNING - Never work on a live electric fitting - Do not touch the battery terminals, danger of electric shock.
  • Page 63 VENTILATION 1. Fuel tank 2. Battery - 12 V 3. Vent hole - Battery box 4. Pipe - Vent hole 5. Grid - Ventilation - Engine compartment 6. Grid - Ventilation 7.Grid - Ventilation - Wheelhouse 12 V 59/80...
  • Page 64 EQUIPMENT GENERAL INTRODUCTION (As far as possible) use electric appliances with double insulation or with three conductors (Neutral-Live wire-Ground). ELECTRONIC Wire runs are available to complete the boat equipment. Do not install electronic instruments or repeaters less than 1,50 m away from the radio loudspeakers.
  • Page 65 ENGINE GENERAL INFORMATION ENGINE FITTING 61/80...

  • Page 66: General Information

    GENERAL INFORMATION TYPE OF MOTORISATION Your vessel is fitted with a gasoline-powered outboard engine. PRECAUTIONS OF USE, OPERATING ADVICE General point - In this vessel, do not install an engine with a greater power and weight than that recommended, this will create a danger for its stability. - Fuel which is stored elsewhere than in the fuel-tanks (portable tanks, jerrycans, etc...) must be kept in a ventilated space.
  • Page 67 DANGER - Stop the engine and refrain from smoking during fuel tank filling. - Make sure that the ventilation openings in the engine (and generator, if installed) compartment are well cleared. WARNING - The tanks' nominal capacity cannot be fully used due to the load and the need to maintain the correct trim PRECAUTION - Never run the engine when the boat is hauled out.
  • Page 68 LOCATION - SYSTEM - FUEL 1. Fuel tank - 200 litre 7. Pipe - Vent hole 2. Fixing 8. Fuel supply valve 3. Tube aluminum 9. Supply pipe - Engine 4. Deck filler 10. Gauge transmitter 5. Pipe filling 11. Gauge dial 6.
  • Page 69 Engine These instructions give detailed explanations on proper operation of the engine. - Refill before the fuel tanks have almost run dry (the fuel system may be stopped for lack of fuel). - Make sure you have enough fuel before sailing. Engine water intake valve The engine water valve is essential for the engine operation.
  • Page 70 Fuel filter Engine running problems may have different origins, including dirty fuel. The injection pump may wear out if there is water in the system. The water results either from the condensation resulting from an insufficiently filled tank, or from a filler cap either not closed properly or with a damaged seal. In order to prevent any water infiltration, the fuel runs through two filters: - One filter is an integral part of the engine, its role is to filter fuel very finely.
  • Page 71 ELEMENTS - ENGINE 1. Trim control 1. Manual control - Trim 2. Engine control 2. Mechanism - Trim 3. Starting up - Engine 3. Engine water intake valve Fuel filter Location: Compartment tank - Petrol 67/80...
  • Page 72 The instrument panel has all the testing functions of the engine and it does not require any special precaution (refer to engine leaflet). Check the clutch and accelerator cables (lubricate the end fittings and forks). VISIBILITY FROM THE STEERING STATION The international regulations to prevent collision at sea (COLREG) and the course regulations make mandatory a permanent and proper surveillance and the respect of priority.
  • Page 73 NAVIGATION: REMINDER OF SOME ADVICE Stability During sailing keep all the portholes, windows and doors closed. - The stability is reduced when you add weight in the upper parts. - Stability may be reduced when towing a boat or when heavy weights are lifted with the davits.

  • Page 75: Launching

    LAUNCHING LAUNCHING RECOMMENDATIONS 71/80...
  • Page 76 POSITION OF HOISTING CRADLE AND STRAPS 2400 Note: Measurements are expressed in mm. 72/80...

  • Page 77: Launching Recommendations

    LAUNCHING RECOMMENDATIONS A lot of skill and care is required to commission your JEANNEAU boat. The proper working of all your boat's equipment is the result of the quality of the commissioning operations. In order to remain completely under guarantee in the case of any failure of parts or materials the first launching and the first trials of different equipment must be carried out by your JEANNEAU dealer.

  • Page 79: Storage

    WINTER STORAGE LAYING UP PROTECTION AND MAINTENANCE 75/80...
  • Page 80 LAYING UP - Take ashore all the ship's log, the ropes that are not used for mooring, the galley equipment, supplies, clothes, the safety equipment, batteries, the gas cylinder. - Mark again the safety equipment, check the expiration dates, have the liferaft overhauled.
  • Page 81 ENGINE The engine winterization shall be carried out by a professional. Depending on the boat location, afloat or ashore, winterization is different. Here are a few major tasks to carry out: Afloat - Drain the cooling system and fill it with antifreeze. - Shut off the battery switches, grease the terminals and check the battery voltage.

  • Page 83: Personal Notes

    Personal notes JEANNEAU (Establishment of the company SPBI) BP 529 - 85505 LES HERBIERS cedex - FRANCE Tel. (33) 02 51 64 20 20 - Fax (33) 02 51 67 37 65 Internet : http://www.jeanneau.com(fr). 79/80...
