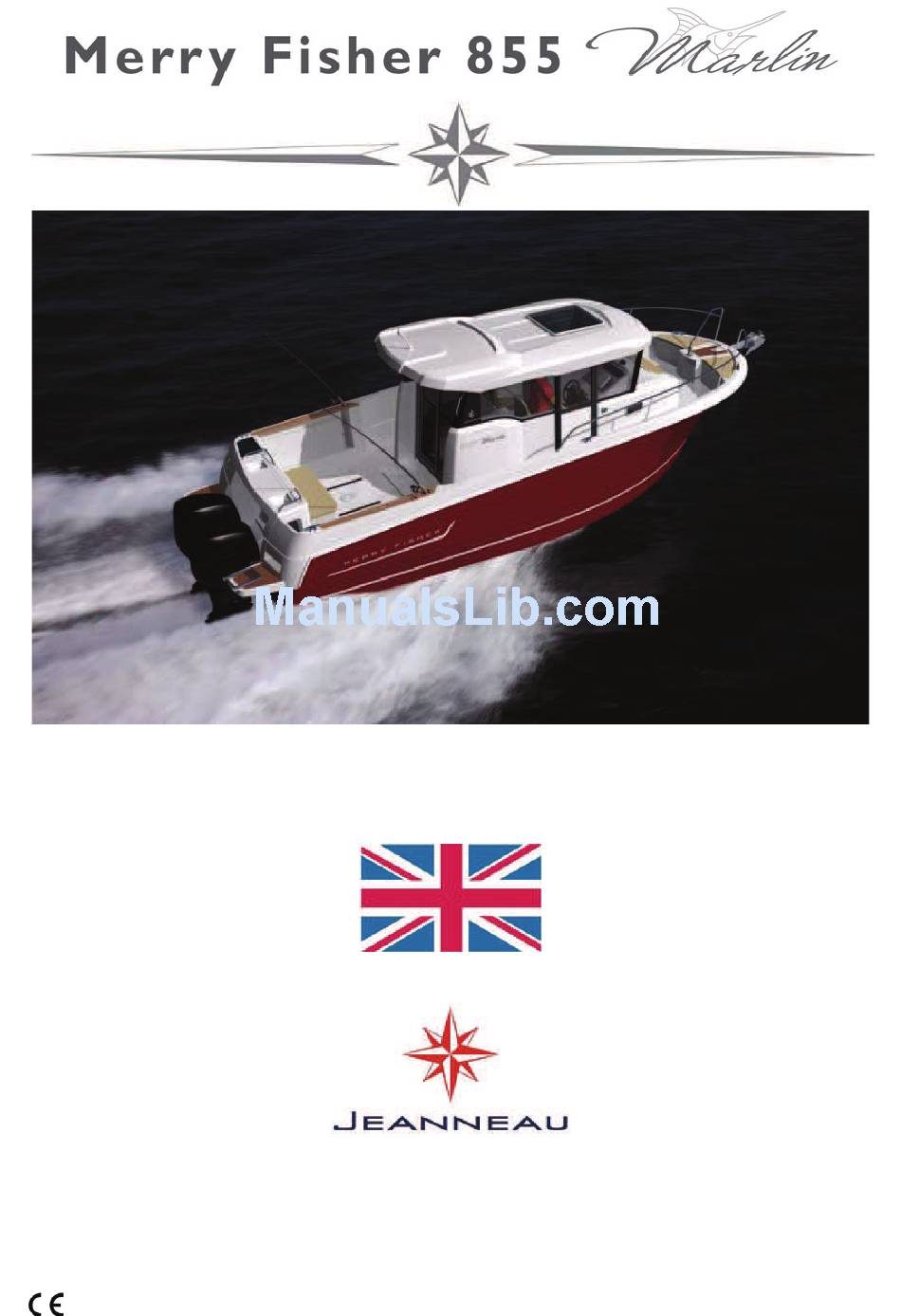

  • Page 1 MERRY FISHER 855 Marlin OWNER'S MANUAL 959207 Index C...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ........................7 Welcome ......................... 7 Notes on reading this manual..................9 TECHNICAL SPECIFICATIONS ................... 11 1.1 CONSTRUCTION ......................11 1.2 GENERAL DIMENSIONS....................11 1.3 ENGINE ......................... 11 1.4 ELECTRICITY........................ 11 1.5 CAPACITIES ......................... 12 DESIGN CATEGORIES AND DISPLACEMENT ............13 2.1 DESIGN CATEGORIES....................
  • Page 4 6.4 FIRE-PREVENTION AND FIRE-FIGHTING EQUIPMENT ..........40 6.4.1 Fire-fighting equipment ..................40 6.4.2 Extinguisher access hole ................... 42 6.5 EMERGENCY EXITS IN CASE OF FIRE ..............43 ELECTRICAL SYSTEM ....................45 7.1 GENERAL INFORMATION ABOUT THE ELECTRICAL SYSTEM ......45 7.2 DC INSTALLATION (12 V OR 24 V) ................
  • Page 5 12 ENGINE ......................... 89 12.1 INFORMATION ABOUT THE RISKS OF FIRE AND OF EXPLOSION OF ENGINES 89 12.2 DANGER FROM MOVING MECHANICAL PARTS............91 12.3 GENERAL POINTS....................... 91 12.4 STARTING THE ENGINE ..................... 92 12.5 FUEL CIRCUIT......................96 12.6 ENGINE WATER INTAKE VALVE ................98 12.7 FUEL FILTER........................
  • Page 6 16.5 WINTER STORAGE ....................131 16.6 TRANSPORT....................... 132 17 ENVIRONMENT ......................133 18 APPENDIXES ......................135 6/140...

  • Page 7: Introduction

    A JEANNEAU is made to last, in order to bring you all the pleasure you expect from a vessel over a period of many years. Each boat is subject to the utmost attention to detail from the design stage right through to launching.
  • Page 8 This manual has been produced to help you enjoy using your boat in all safety. It contains the details of the boat and of all the equipment provided and installed on your boat, as well as the instructions for their use. Read it carefully and really get to know your boat before using it. This owner's manual is not in any way a navigation or mariner's training manual.

  • Page 9: Notes On Reading This Manual

    Notes on reading this manual The various symbols used throughout the manual for crucial safety information are as follows: DANGER Indicates the existence of a serious inherent danger with a high risk of death or serious injury if the appropriate precautions are not taken. WARNING Indicates the existence of a danger which could lead to injury or death if the appropriate precautions are not taken.

  • Page 11: Technical Specifications

    1 TECHNICAL SPECIFICATIONS CONSTRUCTION Model ................... MERRY FISHER 855 Marlin Architect / Interior design............Centkowski & Denert Design Builder ........................SPBI S.A Principal means of propulsion ..................Motor Deck construction material ..... Laminated sandwich glass / Polyester / Balsa wood Hull construction material ....... Laminated sandwich glass / Polyester / Balsa wood Application ......................

  • Page 12: Capacities

    CAPACITIES Total mass of the liquid content of fixed tanks when they are full........530 kg Fuel capacity ......................400 l Fresh water capacity......................100 l Black water capacity (WC)....................90 l It may not be possible to use these capacities fully depending on the trim and load of the boat. It is recommended to keep a reserve of 20% in the fuel tanks.

  • Page 13: Design Categories And Displacement

    2 DESIGN CATEGORIES AND DISPLACEMENT - Some of the data is shown on the manufacturer's plate fixed to the boat. The explanation of the data is given in the appropriate chapters of this manual. - The recommended maximum load includes the weight of all the people onboard, of provisions, personal belongings, of all equipment not included in the weight of the boat in ballast, of the cargo (if relevant) and of all liquids contained in fixed tanks when full (fuel, water, grey water, black water).
  • Page 14 If some of those onboard are children, the total number of people allowed onboard may be increased, provided that:: - The total weight of the children does not exceed 37,5 kg ; AND THAT - the total weight of all allowed onboard (based on about 75 kg per adult) is not exceeded. -Do not exceed the recommended maximum number of people onboard.

  • Page 15: Design Categories

    DESIGN CATEGORIES Category A: At high sea The boat is designed to sail in winds that may exceed Beaufort force 8 and in waves of a significant height of 4 metres and more. This craft is largely self-sufficient. Abnormal conditions such as hurricanes are excluded. Such conditions may be encountered on extended voyages, for example across oceans, or inshore when unsheltered from the wind and waves for several hundred nautical miles.

  • Page 17: Stability And Buoyancy

    3 STABILITY AND BUOYANCY STABILITY DATA - This boat as been assess as capable of supported the weight of the crew, even in the event of flooding. - Fully laden displacement was used to evaluate the stability and buoyancy of the boat. The value of this displacement can be found in paragraph ’...

  • Page 18: Access To The Boat

    ACCESS TO THE BOAT Access to the cockpit Access to the engine compartment Access - Aft quarterdeck A trapdoor located on the stern deck at the level of the engine well allows access to: - The fuel supply valve, - The engine tightening on the aft bulkhead. This access trapdoor must be closed BY HAND without using any particular tool, especially a winch handle or cap spanner.
  • Page 19 Access to the saloon Sliding hatch (Version: 2 doors) Holding Sliding side bay window Access - Cabin 19/140...
  • Page 20 - The cockpit and the petrol tank compartment absolutely must be kept closed when at sea. - When at sea close the guardrail side-opening or openings. - Slamming an access hatch may cause injury : always close the hatch gently and carefully.

  • Page 21: Manoeuvrability

    4 MANOEUVRABILITY - It is important to take additional precautions in very strong winds or in a confused sea or breaking waves. - Maximum rated power of boat propulsion: 294,4 Kw. - Do not install an engine in this boat with a higher rated power than that indicated on the manufacturer's plate.

  • Page 22: Visibility From The Steering Station

    VISIBILITY FROM THE STEERING STATION Visibility from the steering station may be obstructed when the boat is trimmed at a steep angle or due to other factors caused by one or more of the following conditions: - Angle of engine trim control switch (in boats equipped with an engine trim control switch) ;...

  • Page 23: Wiper

    4.1.1 Wiper The windscreen wipers run on DC power. Wiper Location Engine access Control: Steering station 23/140...

  • Page 24: Windscreen Washer

    4.1.2 Windscreen washer Reservoir location: Saloon. Control: Steering station 24/140...

  • Page 25: Deck Searchlight

    4.1.3 Deck searchlight - The deck searchlight runs on DC power. - A fuse protects the electrical circuit. Control: Steering station 1. Deck searchlight on/off 2. Deck searchlight directional switch Location: Roof 25/140...

  • Page 26: Navigation Lights

    4.1.4 Navigation lights The navigation lights run on DC power. Control: Steering station The only function of the samson post is to support the navigation light. Any other use is dangerous and forbidden. 26/140...

  • Page 27: Safety

    5 SAFETY PREVENTING MAN OVERBOARD SITUATIONS AND THE MEANS OF GETTING SOMEONE BACK ONBOARD 5.1.1 Prevention of man overboard - The zones outside the working deck area are the hatched areas below - The ’ working deck ’ means those areas outside where people stand or walk during normal use of the boat.
  • Page 28 Version: 3 doors Version: 2 doors Ref 1: Fitting a means of climbing back onboard. Ref 2: Mooring cleats. - Use the seats provided. Regularly check the guard-rails: - With metal guard-rails, watch for corrosion particularly at connecting points. - With synthetic guard-rails, change them as soon as they show signs of wear due to chafing or UV.

  • Page 29: Getting Back Onboard

    5.1.2 Getting back onboard The means for getting back onboard must be able to be deployed by one person alone in the water, with no other help. Fitting a means of climbing back onboard: -Some types of equipment for getting back onboard have a locking device when folded up: It is important to keep the means for getting back onboard deployed and ready to use once the boat is in use (at anchor, moored or at sea).

  • Page 30: Storing The Life-Raft

    STORING THE LIFE-RAFT The life-raft(not supplied) must be stored in the space provided for it (Ref 1). A pictogram helps to locate it easily. Before putting to sea, carefully read the launching instructions shown on the liferaft. When at sea, never padlock or lock the stowage locker for the life-raft. SECURING MOVEABLE ITEMS -Ensure that movable items are firmly secured when the boat is under way.

  • Page 31: Information About The Risks Of Flooding And About The Boat's Stability

    INFORMATION ABOUT THE RISKS OF FLOODING AND ABOUT THE BOAT'S STABILITY 5.4.1 Openings in hull View - Side View - Hull 31/140...
  • Page 32 View - aft Reference Designation Valve Draining of manual bilge pump Water tank vent Cockpit scupper Shower draining Electric bilge pump draining Bathroom washbasin evacuation Black water tank (WC) Scuppers - Chain locker Scuppers - Chain locker Galley sink drain Gas locker drain Cockpit scupper Vent hole - Fuel tank...

  • Page 33: Drainage System

    5.4.2 Drainage system General points - The inner moulding of the hull has channelling: the drainage channels. The drainage channels allow the water to drain down to the lowest point in the boat, where it can be discharged. So it is important to allow the water to flow freely down to this lowest point of the boat, which includes.
  • Page 34 Diagram of the layout - Bilge pumps Reference Designation Rate Manual bilge pump 32p/minute (*) Manual bilge pump lever Electric bilge pump 30p/minute Electric bilge pump switch (*) 45 strokes/minute If 70 stroke/minute: rate 35p/minute 34/140...
  • Page 35 Main drainage system Electric bilge pumps - The bilge pumps are powered by DC. Access: Cabin Access: Engine compartment - Location of the electric bilge pumps: Ref 3. The electric bilge pump switch is situated inside the wheelhouse (Ref 4). - The electric bilge pump must only be used to discharge stagnant water at the bottom of the bilge.

  • Page 36: Safety Precautions

    Operation: I- Turn on the battery switches. II- Switch on the bilge pump (Ref 4). If the boat is equipped with an automatic bilge pump, the switch has an always-on position. Bilge pump maintenance Please refer to the manufacturer's notes on the instructions for checking and maintaining the bilge pumps.
  • Page 37 Diagram of the layout - Drying out the bilge 11 14 37/140...

  • Page 38: Emergency Systems In Case Of Steering Gear Failure

    Reference Designation Chain locker drain scuppers Washbasin drain plug Washbasin draining Gas locker drain Scuppers - Cockpit draining Electric bilge pump Electric bilge pump draining Shower plug hole Draining pump for shower Shower draining Washbasin drain plug Washbasin draining Scuppers - Cockpit draining Electric bilge pump Electric bilge pump draining Intake strainer - Manual bilge pump...

  • Page 39: Information Relating To Fire Risks And Risks Of Explosion

    6 INFORMATION RELATING TO FIRE RISKS AND RISKS OF EXPLOSION PROPULSION ENGINES AND OTHER FUEL-BURNING EQUIPMENT The risks associated with motorisation are described in the MOTORISATION chapter. Boats equipped with a 25kW or larger outboard engine must have onboard one or more portable fire extinguishers with a total combined capacity of at least 8A / 68B.

  • Page 40: Fire-Prevention And Fire-Fighting Equipment

    FIRE-PREVENTION AND FIRE-FIGHTING EQUIPMENT 6.4.1 Fire-fighting equipment Portable fire-extinguishers and fire blanket (not supplied) - When in use, this boat must be equipped with portable fire extinguishers of the following extinguishing capacity and located in the following places: The location of the portable fire extinguishers is shown by the pictogram below: Version: 2 doors Version: 3 doors Minimum...
  • Page 41 Maintenance of the fire-fighting equipment The owner/person operating the boat must: - Get the fire-fighting equipment checked at the frequency shown on the equipment ; - Replace portable fire extinguishers, if outdated or discharged, by extinguishing apparatus of equal capacity ; - Provide at least one fire bucket with a lanyard, in a readily accessible place, for protection on deck ;...

  • Page 42: Extinguisher Access Hole

    6.4.2 Extinguisher access hole The engine compartment has a port that makes it possible to inject the extinguishing product inside without opening the usual access hatches. Location: petrol tank compartment. Version: 2 doors Version: 3 doors A pictogram helps to locate it easily. 42/140...

  • Page 43: Emergency Exits In Case Of Fire

    EMERGENCY EXITS IN CASE OF FIRE Location Sliding hatch Side bay Version: 2 doors Version: 3 doors NEVER: - Obstruct the passages leading to the emergency exits and the hatches ; - Obstruct or block safety controls, for instance fuel shut off valves, gas taps, electrical system circuit-breakers ;...

  • Page 45: Electrical System

    7 ELECTRICAL SYSTEM GENERAL INFORMATION ABOUT THE ELECTRICAL SYSTEM Reference Designation Service battery, Engine battery Battery switch, Fuse box Switches / DC breakers - The risks of fire or explosion may result from careless use of the DC and AC systems.

  • Page 46: Dc Installation (12 V Or 24 V)

    DC INSTALLATION (12 V OR 24 V) 7.2.1 Battery use and distribution General points On board electrical power is direct current. the batteries are charged either by a load distributor or: - by the alternator linked to the engine when the engine is running, - by the battery charger (if the boat has one).
  • Page 47 Maintenance - Avoid charging batteries to a voltage greater than 14,6 V. - Keep the batteries clean and dry. - Regularly check that the terminals and connection cables are clean. If necessary, apply a thin coating of paraffin on the terminals, to prevent corrosion. - Regularly recharge all of the batteries onboard.

  • Page 48: Battery Switch

    Maintenance of watertight batteries - This type of battery needs no maintenance and does not produce any gas during normal use. No ventilation is needed. - The optimum temperature for use is between 10 degree C and 30 degrees C. Lower temperatures will reduce the available capacity.
  • Page 49 Positive battery isolator switch Battery switch of negative terminal - Turn off all battery breakers before leaving the vessel: risk of complete discharging of whole battery bank. - Avoid operating the battery switches when the batteries are charging. - Never switch off the battery breakers when the boat's engine is running (risk of serious damage to the charging circuit).

  • Page 50: Connection Of Battery Set

    7.2.3 Connection of battery set If one of the engine batteries is low on power, use the battery link function by actuating the linking system. Coupling handle Put the handle in the place provided for it. Turn the handle to connect the coupling circuit when starting the engine.

  • Page 51: Battery Charger

    7.2.4 Battery charger General points - The battery charger runs on AC power. - A breaker protects the electrical circuit. - The battery charger charges all of the batteries onboard, while keeping the service battery bank isolated from the engine's battery bank. - Within its power limits, the DC equipment can be supplied directly.

  • Page 52: Diagram Of The Layout - Dc Circuit

    7.2.5 Diagram of the layout - DC circuit 52/140...
  • Page 53 Reference Designation Electric windlass Windlass remote control Fuse Interior lighting Interior lighting Bow thruster Battery - 50A (Bow thruster) Fuse Interior lighting Motor - Starboard windscreen wiper Motor - Port windscreen wiper Compass light Electronic Interior lighting Interior lighting Fridge Port navigation light Electric bilge pump Control - Bow thruster...

  • Page 54: Circuit Breakers

    7.2.6 Circuit breakers A circuit-breaker can be re-set (manually press the black button to restart it). Location: Steering station. from left to right: - Navigation lights - Electric bilge pump - Electric bilge pump - Masher (WC drainage pump to sea) - Deck wash pump - Draining pump for shower - Water unit...

  • Page 55: Fuses

    7.2.7 Fuses - A fuse protects an electrical circuit from a power surge. If it blows, you must replace it with another fuse of the same rating. Location: Pilot seat. Reference Designation Masher (Pump - WC evacuation to sea) & Windscreen washer Pump sea water Cockpit lighting &...

  • Page 56: Layout - Dc Circuit

    TRIM TAB - OPTION Black -12V 2,5² Red +12V 2,5² Trim Tab Control AG2 n 10² 1AN2 n 1,5² 1AN2 n 1,5² 1E1C n 1² 5P1B n 2,5² 1W1B n2,5² 1S1B n 1,5² 1S1B or 1,5² 1F1A n 2,5² 1C1A n 4² 1P1B n 2,5²...
  • Page 57 Reference Designation Common battery negative isolator switch Service battery switch Engine battery switch Service battery Engine battery Outboard Outboard Charging relay box Coupling battery switch General fuse DC system circa - System - Service Electronic equipment Power distributor Connection Connection Connection Connection Loudspeaker...
  • Page 58 Reference Designation Fuse - Fuel gauge Navigation light Navigation light Samson post (Mooring light) 12 V socket Electric bilge pump Interior lighting Compass light Courtesy lighting Masher (Pump - WC evacuation to sea) Wiper Wiper Deck wash pump Water unit Fridge Cabin lighting Pump - Fishpond...

  • Page 59: Ac System (110 V Or 220 V)

    AC SYSTEM (110 V OR 220 V) -Never let the end of the boat/shore supply cable hang in the water: The result may be an electric field liable to hurt or kill the swimmers nearby. -There may be danger of electrocution if alternating current systems are incorrectly used.

  • Page 60: Ac Shore Socket

    7.3.1 AC shore socket location of components Differential switch Shore power socket Ref 2 Ref 1 1. General 2. Water heater 3. AC socket Operation First plug the extension cable into the AC socket on the boat, then into the socket onshore. First unplug the extension cable from the socket onshore, then from the AC socket on the boat.

  • Page 61: Diagram Of The Layout - Ac Circuit

    7.3.2 Diagram of the layout - AC circuit 61/140...
  • Page 62 Reference Designation Battery - Bow thruster AC socket Battery charger Differential circuit breaker Water heater AC shore socket Engine battery Engine battery 62/140...

  • Page 63: Anodes

    7.3.3 Anodes General points - The sacrificial anodes protect the boat's metal components from electrolysis. - A sacrificial anode is an expendable part, that by eroding (oxydisation), allows the current to flow. The anodes used are made of a metal that is more readily reductive than the metal they are protecting.

  • Page 65: Liquefied Petroleum Gas(Lpg)System (Gpl)

    8 LIQUEFIED PETROLEUM GAS(LPG)SYSTEM (LPG) location of components Reference Designation Cooker Supply valve - Gas Regulator valve Gas cylinder locker Thru-hull fitting Gas locker drain - Systematically store the gas bottles only in the lockers or storage places provided for these. - It is recommended that you ensure good ventilation when using gas powered equipment, to prevent asphyxiation.
  • Page 66 Gas cylinder locker Cooker open / Closed Supply valve - Gas / Access (Forward cabin) 66/140...
  • Page 67 Use and maintenance of the installation - Please refer to the manufacturer's notes for the use and maintenance of the LPG cooker. - When the equipment is not in use close the taps on the LPG hose and on the gas bottles. Close the taps before changing the bottles and immediately in an emergency.
  • Page 68 To change an LPG bottle 1. Close the tap on the LPG bottle 2. Detach the LPG bottle 3. Replace the LPG bottle 4. Attach the new LPG bottle 5. Open the tap on the LPG bottle When the cooker is on, ventilate well to prevent any risk of asphyxiation. Do not use the cooker as a means of heating.

  • Page 69: Domestic Appliances

    9 DOMESTIC APPLIANCES FRIDGE General points - The fridge is composed of 3 components: the compressor, the evaporator and the condenser. These components are connected by a closed circuit refrigerant gas circuit. The fridge is air-cooled. - The fridge is DC powered. It is designed to chill food and drink. Any other use is dangerous and forbidden.
  • Page 70 Location: Saloon Capacity: 42 litre 70/140...

  • Page 71: Onboard Comfort

    10 ONBOARD COMFORT 10.1 ELECTRONIC EQUIPMENT The onboard electronics are powered by direct current. Control: Steering station LEAD LINES Transducer location: Aft cabin (Version: 3 doors). - Do not store material on top of the sensors. - Do not cover the sensors in antifoul when antifouling the hull. - Regularly clean the sensors.

  • Page 72: Equipment Other Than For Propulsion, Which Burns Fuel (Generator, Heating)

    10.2 EQUIPMENT OTHER THAN FOR PROPULSION, WHICH BURNS FUEL (GENERATOR, HEATING) 10.2.1 General points - Make sure that the ventilation openings in the engine (and generator, if installed) compartment are well cleared. - Stop the engine and refrain from smoking during fuel tank filling. - Get your fuel circuit checked regularly by a professional engineer.

  • Page 73: Water Systems

    11 WATER SYSTEMS 11.1 GENERAL POINTS - It is essential to rinse the entire on-board water system the first time the boat is used (The water system is protected in the factory by a dietary anti-freeze). - The water tanks may have had an anti-algae treatment using a copper sulphate based product.

  • Page 74: Using A Valve

    11.2 USING A VALVE The valve is shut when the valve handle is at right angles to the pipe, the valve is open when the valve handle is in line with the pipe. Reference Designation Open valve Closed valve - Valves have a lifespan of approximately 5 years. It is essential to have all valves on board checked by a professional every 5 years and possibly replace them.

  • Page 75: Fresh Water Filling System / Fresh Water Distribution System

    11.3 FRESH WATER FILLING SYSTEM / FRESH WATER DISTRIBUTION SYSTEM 75/140...
  • Page 76 Reference Designation Galley sink Washbasin - Head Water heater Deck filler Water unit Water tank Cockpit shower Deck wash pump Water inlet - Washing - Deck Connecting bridge washing Water tank Location: petrol tank compartment 76/140...

  • Page 77: Main Plumbing Equipment

    11.4 MAIN PLUMBING EQUIPMENT 11.4.1 Water unit - The water unit is supplied by direct current. - It serves to feed all the boat's plumbing equipment with fresh water. It is fitted with a pressure switch that activates the flow when the pressure in the water system falls. - The water unit must only be used with the fresh water supply.

  • Page 78: Cockpit Shower

    11.4.2 Cockpit shower - The cockpit shower allows the use of fresh water for rinsing off. Location: Cockpit 78/140...

  • Page 79: Deck Wash Pump (Sea Water)

    11.4.3 Deck wash pump (Sea water) - The deck wash pump is supplied by direct current. - The deck wash pump allows the deck or the boat's tender to be washed. - The deck washer pump control switch is situated inside the wheelhouse. Control: Steering station Sea water intake + Deck wash pump + Filter Operation...

  • Page 80: Water Heater

    11.4.4 Water heater - The water heater allows the use of hot water on board the boat. - The water heater thermostat regulates the water temperature only when it is operating with electrical resistance. The thermostat is pre-set in the factory. - The mixer tap allows the temperature leaving the water heater to be adjusted.

  • Page 81: Black Water System (Wc)

    11.5 BLACK WATER SYSTEM (WC) General points - Black water is human waste including the flushing water from the toilets. - Close the valves after each use and above all when the boat is unattended. - Regularly check the valves and thru-hull seacocks for proper operation and watertightness. - Regularly check the tightness of the flexible pipe clamps and connections.

  • Page 82: Location Diagram Of Black Water System

    11.5.1 Location diagram of black water system Reference Designation Marine toilet Sea water intake - WC WC evacuation to sea Black water tank WC evacuation - Deck - Filler cap "WASTE" Black water tank Masher (WC drainage pump to sea) 82/140...
  • Page 83 YOUR BOAT IS FITTED WITH A BLACK WATER TANK To minimise the smells coming from this tank, we advise the following use and maintenance: Holding tank - A black water tank is used solely for the temporary collection of water coming from the toilets. - The tank can be emptied in 2 ways: - By connection to a pumping system that empties the tank by suction.
  • Page 84 Black water tank + Masher Black water tank gauge Capacity: 90 litre Location: Head Masher control (WC evacuation to sea) Location: Steering station NOTE: The valve must be opened before starting the pump. 84/140...
  • Page 85 Maintenance of black water tank - The risk of unpleasant odours forming increases when the waste water remains in the tank for a long time. - Whenever possible empty the tank regularly even before it is full. - Every time the tank is emptied put in about 5 litres of fresh water and add an appropriate detergent additive (available from chandleries).

  • Page 86: Layout Diagram Of Black Water System

    11.5.2 Layout diagram of black water system Drainage by electric pump DC (Masher) Reference Designation Vent hole Seawater intake valve Black water tank Masher (WC drainage pump) Gauge 'WASTE' deck connection Sea discharge valve 86/140...
  • Page 87 Using a marine toilet with a tank drain by macerator I. Open the sea water intake valve (Ref 2). II. Fill the bowl by using the manual toilet pump. III. Using the toilet (Ref 5). IV.a. To empty the organic waste in the tank: - Make sure the thru-hull seacock (Ref 8) is closed.

  • Page 88: Waste Water System

    11.6 WASTE WATER SYSTEM General points - The waste water system is the water coming from the sink, showers, air conditioning drains and washbasins. - Close the valves after each use and above all when the boat is unattended. - Regularly check the valves and thru-hull seacocks for proper operation and watertightness. - Regularly check the tightness of the flexible pipe clamps and connections.

  • Page 89: Engine

    12 ENGINE 12.1 INFORMATION ABOUT THE RISKS OF FIRE AND OF EXPLOSION OF ENGINES - Make sure that the coolant is circulating properly. - Ensure that ventilation openings in the compartment fuel tank are not obstructed. - Stop the engine and refrain from smoking during fuel tank filling. - Get your fuel circuit checked regularly by a professional engineer.
  • Page 90 Fuel supply valve: located directly on the tank. A trapdoor located on the stern deck at the level of the engine well allows access to: - The fuel supply valve, - The engine tightening on the aft bulkhead. This access trapdoor must be closed BY HAND without using any particular tool, especially a winch handle or cap spanner.

  • Page 91: Danger From Moving Mechanical Parts

    12.2 DANGER FROM MOVING MECHANICAL PARTS - Keep away from the moving parts of the engine (belts and moving parts or hot components) and the drive shafts etc.. - Be careful if you have long hair, bulky clothing, rings etc (at risk of being caught). 12.3 GENERAL POINTS - Don't install an engine more powerful or heavier than recommended on this boat, this risks compromising the boat's stability.

  • Page 92: Starting The Engine

    12.4 STARTING THE ENGINE Before starting the engine, it is imperative: - to open the fuel supply valve ; - to open the sea water intake valve of the engine ; - to switch on the battery supply by using the battery isolator switches ; - to put the control lever in neutral ;...
  • Page 93 Type of motorisation Your vessel is fitted with a gasoline-powered outboard engine (Version: Single engine). Your boat is fitted with two petrol in-board engines (Version: Twin engine). Filling up with fuel - Fill the fuel tank using the deck filler marked "PETROL" for this. - Fuel capacity: 400 litre.
  • Page 94 Gauge - The level of fuel is transmitted to the indicator on the wheelhouse thanks to the dipstick. - Some of the gauges must be calibrated when you first fill the tanks: please consult your dealer. Gauge - The tanks' nominal capacity cannot be fully used due to the load and the need to maintain the correct trim.
  • Page 95 EPA version (United States Environmental Protection Agency) - The maintenance of the complete petrol circuit system must be done professionally every year. It is advisable to clean the circuit only with soapy water. All the fuel circuit connections must be checked once a year. - When cleaning the boat, be careful not to damage the valves, vent or fuel circuit filler.

  • Page 96: Fuel Circuit

    12.5 FUEL CIRCUIT Version: Twin engine Reference Designation Fuel gauge indicator Fuel tank Vent hole - Fuel tank Fuel filter Fuel filter Deck filler Fuel supply valve Fuel supply valve 96/140...
  • Page 97 Version: Single engine Reference Designation Fuel gauge indicator Fuel tank Vent hole - Fuel tank Fuel filter Fuel filter Deck filler Fuel supply valve Fuel supply valve 97/140...

  • Page 98: Engine Water Intake Valve

    12.6 ENGINE WATER INTAKE VALVE The sea water intake valve plays a crucial role in ensuring that the engine runs well. - Keep the strainer under the hull as clean as possible ; - Brush the strainer whenever the boat is lifted out ; - Don't cover the strainer in antifoul.

  • Page 99: Fuel Filter

    12.7 FUEL FILTER Engine running problems may have different origins, including dirty fuel. The injection pump may wear out if there is water in the system. The water results either from the condensation resulting from an insufficiently filled tank, or from a filler cap either not closed properly or with a damaged seal.

  • Page 100: Engine Installation

    12.8 ENGINE INSTALLATION In single engine version: This boat is designed for use with a single outboard engine. In twin engine version: This boat is designed for used with twin outboard engines. 100/140...

  • Page 101: Engine Control

    12.9 ENGINE CONTROL - The engine manufacturer's notes provide detailed explanations on how to operate the engine and keep it running well. - Read the manufacturer's notes on use and maintenance of the engine. Control lever - The control lever is fitted with a safety system which prevents the engine from starting when in gear.

  • Page 102: Flaps

    12.10 FLAPS General points - The flaps (trim control system) allow the pilot to adjust the boat's trim under way and thus to reduce fuel consumption. - The flaps run on DC power. - A fuse protects the electrical circuit. - They are operated by means of a push button situated on the wheelhouse and their position is adjustable.
  • Page 103 General points The flaps are controlled electrically. The actuator is mechanical. The flaps need to be protected by an anode (see the chapter on Electricity). Operation When the tabs are lowered, the bow of the boat has a tendency to lift out of the water. When the tabs are raised, the bow of the boat has a tendency to drop.
  • Page 104 Reference Designation Mechanical actuator Control panel Control box Fuse 104/140...

  • Page 105: Access To The Engine

    12.11 ACCESS TO THE ENGINE The access to the engine is via: - The cockpit. All access hatches to the engine absolutely must be kept shut when at sea. 12.12 PROPELLER - The propeller delivered with the boat represents the end result of trials carried out in collaboration with the engine manufacturer.

  • Page 107: Steering System

    13 STEERING SYSTEM 13.1 GENERAL POINTS - The steering is hydraulic. - The steering system is an important safety feature. For this reason, the annual inspection of the whole system must be carried out by a professional engineer. 107/140...

  • Page 108: Layout Diagram

    13.2 LAYOUT DIAGRAM Version: Twin engine Reference Designation Steering rack Steering wheel Engine control lever Cables (Accelerator / Reverser) Hydraulic steering Watertight bellows Hydraulic piston Outboard Outboard Connecting rod 108/140...
  • Page 109 Version: Single engine Reference Designation Steering rack Steering wheel Engine control lever Cables (Accelerator / Reverser) Hydraulic steering Watertight bellows Hydraulic piston Outboard Outboard Connecting rod 109/140...

  • Page 110: Hydraulic Steering

    13.3 HYDRAULIC STEERING General points - Steering is achieved by rotating the engine base. This rotation is done using a hydraulic ram. - Protect the ram from any risk of impact, scratches or any other type of degradation. No impurities must ever penetrate the inside of the ram. - Nothing must impede the movement of the ram: regularly ensure that the ram is able to function smoothly: when moving the engine from hard to port to hard to starboard ;...
  • Page 111 After each winter, check that rotating the wheel to starboard turns the boat to starboard ; that the circuit is properly bled ; that there are no leaks in the connections, the pumps, the ram or the flexible hydraulic hoses ; that the pump is filled with oil to the correct level(25 mm of air must be left in the pump : this space is vital for the hydraulic circuit to work properly, it allows the oil to expand) ;...

  • Page 112: Bow Thruster

    13.4 BOW THRUSTER General points - The bow-thruster's motor is DC powered. - The bow-thruster assists with steering the boat when manoeuvering at low speed (picking up a mooring buoy or berthing on a pontoon for instance). - An operating relay is installed in the circuit. - A fuse protects the electrical circuit.
  • Page 113 During lift-out - Check that the propellers turn properly, with neither play nor stiffness. - Clean the blades carefully. - Remove the propeller, clean the housing and the shaft, smear the shaft and the stainlees steel capsules with silicon-based grease before putting the propeller back. - After cleaning and applying a primer, antifoul the housing and the propellers.

  • Page 115: Deck Fittings

    14 DECK FITTINGS 14.1 GENERAL POINTS 14.1.1 Polyester - Regularly brush the deck using a gentle de-greasing agent then rinse the deck with fresh water. - Use as few cleaning agents as possible. - Don't use solvents or aggressive detergent agents. - Don't discharge cleaning agents into the water: Consult the harbourmaster's office to find out the conditions of water use and the maintenance area for cleaning your vessel.

  • Page 116: Solid Wood On Exterior Wooden Panelling

    14.1.4 Solid wood on exterior wooden panelling - Wood exposed to harsh conditions, such as salty air and UV rays tends to become whiter and to lose its natural colour. This phenomenon has no effect on the intrinsic qualities of the wood, but can spoil its aesthetic appeal.
  • Page 117 Fish case Fishpond Seating - Cockpit Must be secured while sailing 117/140...

  • Page 118: Berthing, Anchoring, Towing

    14.2 BERTHING, ANCHORING, TOWING 14.2.1 Anchor points Responsibility It is the responsibility of the owner/user of the boat to ensure that the berthing lines, towing cables, chains and mooring lines and the anchors are adequate for the intended use of the boat, i.e.

  • Page 119: Towing

    14.2.2 Towing Responsibility: It is important that the owner thinks through the actions required when securing a towing cable onboard. Location of attachment points A. Mooring cleats which correspond to the anchor points for the lifelines. B. Towing: - at the bow, to be towed - at the stern, to tow - Generally the breaking strength of lines/chains must not exceed 80% of the breaking strength of the anchor points.

  • Page 120: Main Elements Of The Chain Locker

    14.3 MAIN ELEMENTS OF THE CHAIN LOCKER 1. Chain holder 2. Windlass - 700 W 3. Chain rim - 8 mm diameter Chain locker - Closed 4. Clinch 5. Remote control 6. Handle Breaker - 80A Operation relay Location: Saloon Location: Forward cabin Refer to the manufacturer's instructions for use and maintenance.

  • Page 121: Electric Windlass

    14.4 ELECTRIC WINDLASS General points - The windlass is DC powered. - The windlass is designed for anchoring purposes: Any other use is dangerous and forbidden. - An operation relay is fitted to the electrical circuit. - A circuit-breaker protects the power supply to the windlass. - The windlass operation is activated by an operational interlock relay which is powered by the engine's alternator: the windlass only works when the boat's engine is running.
  • Page 122 Maintenance - once a year, dismantle, carefully wash and grease all the moving parts of the windlass. - Regularly grease the supply terminals of the electric motor of the windlass and of the relay control box. Emergency anchoring procedure In the event of an electrical fault, it is possible to lower the anchor manually: Put the handle in the space provided for this to release the chain grab.

  • Page 123: Hull Fittings

    15 HULL FITTINGS 15.1 UPHOLSTERY SYNTHETIC FABRIC Stain removal If you can remove the fabric: - Clean in the washing machine (use the program for delicate fabric) at 30°. - Do not iron. - Never use Javel water. - Do not dry-clean. - Do not use a clothes drier.
  • Page 124 ACRYLIC (bimini fabric type) Maintenance To maintain the quality of the fabric, you are advised to spray it regularly with clarified water and to brush it with a soft brush (brush for clothes). It is advisable to clean thoroughly every 2 years.

  • Page 125: Interior Woodwork

    15.2 INTERIOR WOODWORK - Clean the interior varnish using a de-greasing shampoo on a damp cloth. - Polish the interior varnishing with a chamois leather. - If there are any stains or light scratches, it is possible to polish the varnish. Doing this can give the polished area more of a shine than the rest of the varnishing onboard.

  • Page 127: Handling, Transport

    16 HANDLING, TRANSPORT 16.1 LIFTING PLAN Note: Measurements are expressed in mm. The position of the lifting slings is shown in the pictogram below: 127/140...

  • Page 128: Lifting

    16.2 LIFTING - Before applying the first coat of antifouling on the hull, you can key the hull using wet sandpaper of 400 grade or higher. - The lower hull of your boat should be covered with an anti-fouling paint which will prevent the adhesion of marine growth.

  • Page 129: Upper Limit Of Antifoul

    16.3 UPPER LIMIT OF ANTIFOUL Measurements are expressed in millimetres. 129/140...

  • Page 130: Launch/Lift Out

    16.4 LAUNCH/LIFT OUT The initial commissioning of your boat will require a lot of skill and care. The proper working of all your boat's equipment is the result of the quality of the commissioning operations. This is why the initial launch must be overseen by your dealer. Before launching - Replace the log in its housing.

  • Page 131: Winter Storage

    16.5 WINTER STORAGE - Take advantage of laying up the boat to carry out a full inventory of the equipment. - Check the expiry dates of the safety equipment. - Have the liferaft overhauled. - Empty the complete water system inside and outside and rinse it through with a mix of water and vinegar (do not use a chlorinated product).

  • Page 132: Transport

    16.6 TRANSPORT Light displacement: .......................3 616 kg included: - All structural elements; - the interior structure and furnishings; - Interior equipment (plumbing circuit, galley, ventilation system etc); - Exterior equipment (cockpit table, bathing ladder, steering system, exterior upholstery etc); - The heaviest engine(s) recommended by the builder. Total mass of the liquid content of fixed tanks when they are full:........530 kg Weight of boat on trailer: 3 616 + 530 =................4 146 kg Components that should not be on the boat during transportation or when towed:...

  • Page 133: Environment

    17 ENVIRONMENT Waste management: - Throw all packaging in the recycling containers provided for this. - Once a piece of equipment has completely stopped working, find out about the relevant recycling regulations from your nearest recycling centre or from your dealer. - Make sure you follow the relevant local laws when you scrap it.

  • Page 135: Appendixes

    Note: Deck Fill should be oriented to allow for standard fuel nozzles to be correctly Please refer to CFR 40 1060.135 to review EPA vessel labeling requirements. FIGURE 2 inserted at the pump. The NMMA has a program to supply OEM builders with labels. Please refer to the NMMA 2.
  • Page 136 Manufacturer must determine required amount of anti-siphon protection for specific FIGURE 1 FIGURE 3 Transport vessel configuration per CFR 33. Manufacturer must select an Integrated Fuel Demand Valve with at least that much anti-siphon protection. Manufacturer must ensure that Plug engine fuel distribution line vacuum requirements are met.
  • Page 137 TWO-YEAR WARRANTY & LIABILITY NOTES: Trade Size 028 (1-1/4" min., 2-1/4" max. dia.), 1-1/2" (38mm) wide Generally: Attwood Inlet Control Valves are covered by a two (2) year limited warranty 1/2" (13mm) stainless steel band, housing and 5/16" (8mm) hex screw from the date of a Vessel’s first retail sale.
  • Page 138 138/140...
  • Page 139 APPENDIXES...

Table of Contents

Save PDF
