  • Page 1 LEADER 625 OWNER'S MANUAL...

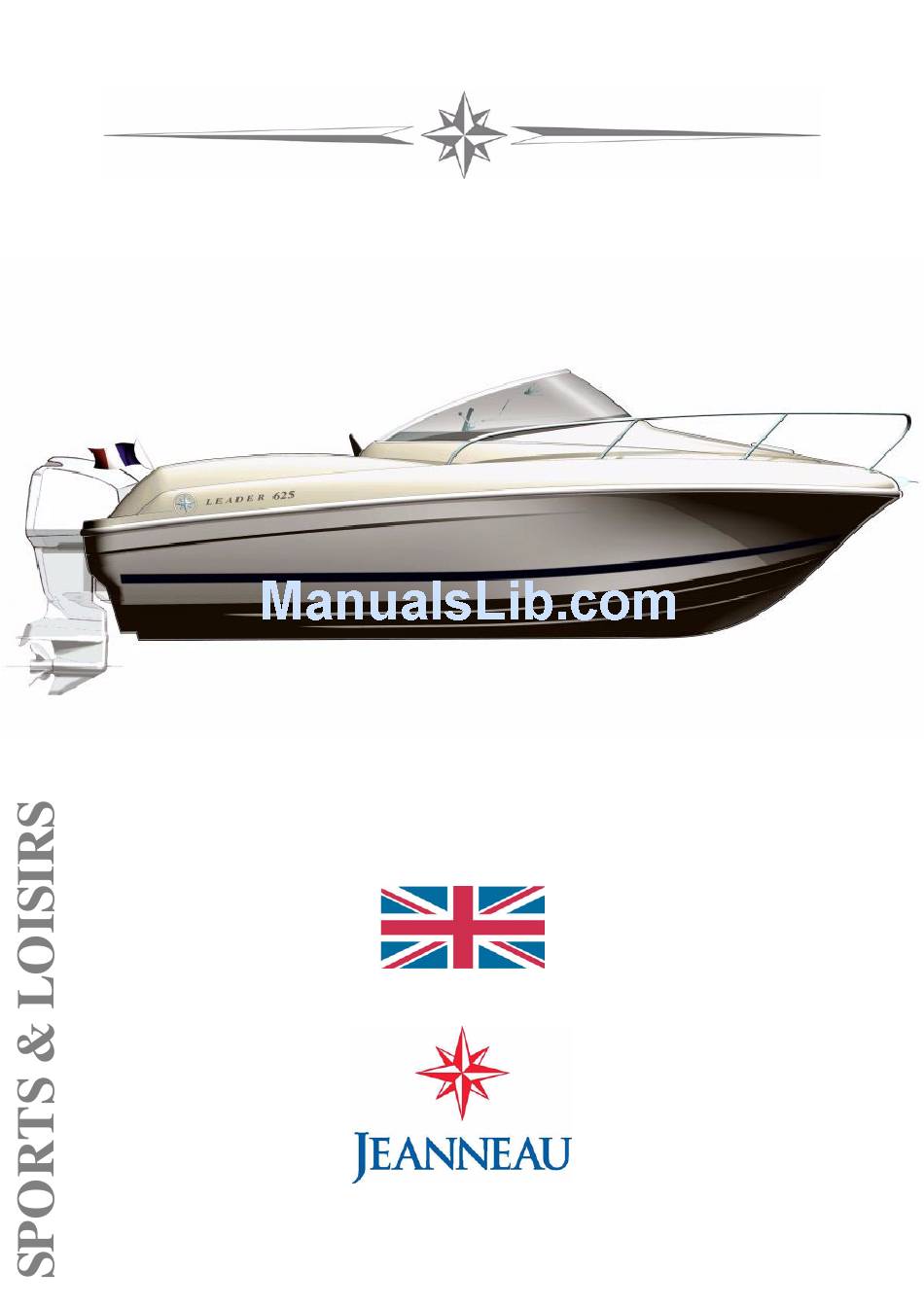

  • Page 3 5.1.2 ISO 10 240 CONTENTS LEADER 625 Anglais Code: 900908 Total number of pages: 70 Update 05/2007 Index 2 INTRODUCTION HISTORY OF UPDATES Chapter 1..........................Page 5 SPECIFICATIONS AND WARRANTY Chapter 2 .......................... Page 13 SAFETY Chapter 3 .......................... Page 21 HULL Chapter 4 ..........................
  • Page 4 5.1.3, 5.2 ISO 10 240 HISTORY OF UPDATES • Index 0..........................6/02/2006 • Index 1................Page 59........21/06/2006 • Index 2................Page 17........... 05/2007...
  • Page 5 5.1.3, 5.2 ISO 10 240 INTRODUCTION We share a common passion for the sea: we, JEANNEAU as shipbuilders and you who want to live your passion on the Seven Seas. We are delighted to welcome you to the great family of JEANNEAU boat owners and we congratulate you on it.
  • Page 6 5.1.3, 5.2 ISO 10 240 The sea and wind conditions that correspond to the design categories A, B or C are changeable and are dependent on the hazards of unusually strong waves or gusty winds. Therefore total safety cannot be guaranteed, even if your boat meets the requirements of a category.
  • Page 7 5.1.3, 5.2 ISO 10 240 The users of the boat are informed of the following: - The entire crew must be trained properly. - The boat shall not be loaded more with than the maximum load recommended by the builder, in particular the total weight of the food supplies, of the different equipment that are not supplied by the builder and of the persons on board.
  • Page 9 5.1.3, 5.2 ISO 10 240 SPECIFICATIONS AND WARRANTY YOUR BOAT TERMS AND CONDITIONS OF WARRANTY 5/70...

  • Page 10: Specifications

    Fuel tank capacity ........................136 l/36 US gal Recommended engine power ................200 HP (150 kW - 200 HP) CE Category .............................C (6 persons) Architect................Garonni Design / Jeanneau Design Department The engine is the main propulsion means of the LEADER 625. 6/70...
  • Page 11 5.1.3, 5.2 ISO 10 240 Category C: This boat is designed for sailing in winds that do not exceed force 6 Beaufort and in waves of a significant height inferior or equal to 2 m. You may meet with such conditions in exposed inland waters, in estuaries and in coastal waters with moderate weather conditions.
  • Page 12 ENGINE SERIAL NUMBER ................ENGINE KEY NUMBER ................Your agent CHANTIERS JEANNEAU - BP 529 - 85505 LES HERBIERS cedex - FRANCE Tel. (33) 02 51 64 20 20 - Fax (33) 02 51 67 37 65 Internet : http://www.jeanneau.com(fr). 8/70...
  • Page 13 2 above, the structure of the hull, the deck and the hull to deck joint and the hull to keel joint is warranted against all manufacturing defects identified by the technical specialists of CHANTIERS JEANNEAU, for a period of 5 years for monohull boats and 3 years for motor boats and multihull boats.
  • Page 14 Article 4 The following items are excluded from the terms of warranty as stated in articles 1 and 2 above: - The transport and carriage expenses for the boat and parts as well as expenses and/or possible losses resulting from the inability to use the boat and/or accessories, shall be born by the purchaser, - The deterioration or damages hereinafter listed as well as their consequences: •...
  • Page 15 Article 7 The authorized dealers, agents or sellers of CHANTIERS JEANNEAU do not have the authority to alter the above warranty but, on their own account and in their own responsibility, they may grant possible additional warranties which can bind the builder under no circumstances.
  • Page 17 5.3, 5.5, 5.6 ISO 10 240 SAFETY SAFETY EQUIPMENT LOCATION OF THE FIRE EXTINGUISHERS (ISO 9094-2) FIGHT AGAINST FIRE BILGE PUMP SYSTEM 13/70...

  • Page 19: Safety Equipment

    SAFETY EQUIPMENT LIFERAFT Keep the life raft permanently easy to get to RECOMMENDATION Before you sail to sea, carefully read the instructions indicated on the liferaft to launch it. WARNING - Before you sail, list the compulsory safety equipment. - Don't exceed the number of persons indicated in the chapter 'Specifications'. - When you don't take into account the number of persons, the total weight of the persons and equipment shall never exceed the maximum load recommended by the manufacturer.
  • Page 20 An extinguisher shall be less than 1 m from the steering station. Extinguisher, per unit, minimum capacity 5 A/34 B. For the LEADER 625: 5 A/34 B. 1. In the cabin Emergency exits in case of fire A. Door of the cabin WARNING The extinguishers are part of the compulsory equipment.
  • Page 21 FIGHT AGAINST FIRE The extinguishers must be within easy access and kept away from a possible fire source. DANGER Keep an extinguisher handy in case the fire should start again. It is the owner's or the skipper's responsibility: - To equip the boat with extinguishers. - To have the extinguishers checked in pursuance of the instructions given.

  • Page 23: Bilge Pump System

    Keep the bilge clean. Regularly check whether there is fuel oil vapor. Use only compatible spare parts for the extinguishers. The parts shall have the same specifications or be technically equivalent as to their resistance to fire. WARNING The CO extinguishers shall be used only to fight electrical fires.
  • Page 25 5.3, 5.4, 5.5 ISO 102 40 HULL CONSTRUCTION MAINTENANCE OF THE HULL CARREENING INSTRUCTIONS TO REPAIR THE GEL COAT 21/70...
  • Page 27 CONSTRUCTION Your boat is built in GRP. Stresses are distributed over the whole bottom surface by means of floors laminated integral with the hull. The deck is made of balsa wood sandwich with hard wood inserts where the deck fittings are to be installed.
  • Page 28 5.3.3 i) ISO 10 240 CARREENING Surface covered with antifouling paint (below the step): 11,5 m - (These measurements are for "boat with maximum load") Refer to chapter 8 for launching instructions. A (tin-free) anti-fouling painting every year will make it possible to avoid tedious and frequent careening.
  • Page 29 INSTRUCTIONS TO REPAIR THE GEL COAT MIXING RATIO Our products contain an accelerator, you just have to add the catalyst (a colourless liquid). The usual ratio is 2 %. The gel setting time (working time) is about 1/2 h, curing takes about 10 h. APPLICATION - To fill up a blister hole or a scratch, sand and clean the area with acetone.
  • Page 31 STORAGE To keep them properly, store the gel coat components in a cool dry and dark place. Keep the components 6 months maximum. Polyester products are flammable ; take the usual precautions. CLEANING YOUR TOOLS Clean all your tools with acetone. 27/70...
  • Page 33 5.3, 5.4, 5.5 ISO 10 240 DECK NAVIGATION MOORING TOWING ANCHORING MAINTENANCE OF THE DECK 29/70...
  • Page 34 5.3.1 ISO 10 240 DECK LAYOUT A - Mooring cleats R - Towing E - Swimming ladder 30/70...
  • Page 35 NAVIGATION DANGER Wear your life jacket. In heavy weather, wear your safety harness and fasten yourself to the boat. When sailing, close and lock the door or doors giving access to the transom extension MOORING A sufficient number of mooring lines suitably sized and suitable for the environment shall be on board for mooring your boat.
  • Page 36 ANCHORING As a rule, set the anchor in at least 3 times the depth of water. - Have your boat pointed into the wind and without speed. - Pay out the chain while moving back slowly. - Secure the cablet on the mooring cleat. PRECAUTION Before anchoring check the depth of water, the power of the current and the nature of the sea bed.

  • Page 37: Deck Fitting

    DECK FITTING - Rinse thoroughly all your equipments with fresh water. - Clean and polish with "Rénovateur chrome et inox Jeanneau" (supplied in the maintenance case) the stainless steel parts that may have small rusty spots or minor oxidation pits.
  • Page 39 5.3, 5.4, 5.5 ISO 10 240 ACCOMMODATIONS MAINTENANCE FABRICS USE OF THE FOLDAWAY PASSENGER SEAT 35/70...
  • Page 40 ACCOMMODATION 36/70...
  • Page 41 MAINTENANCE INSIDE - Take advantage of the fine weather to take the settee and berth cushions out. - Put the cushions vertically if you leave the boat for long. - Use blinds to protect the inside of the boat against UV rays. - Carefully remove all crumbs.
  • Page 43 For the PVC fabrics, don't use any solvent or solvent based product (pure alcohol, acetone, trichloroethylene). MAINTENANCE RECOMMENDATION The builder tested and approved a certain number of biodegradable cleaning and restoring products that protect both material and environment.The related technical data is available at your JEANNEAU dealer. 39/70...
  • Page 44 USE OF THE FOLDAWAY PASSENGER SEAT Seated position Meridian position Handholds Tilting forward Notch - Meridian position Tilting backwards Notch - Seated position 40/70...
  • Page 45 USE OF THE FOLDAWAY PASSENGER SEAT The passenger seat can be used in 2 positions: - Seated position (Fig. 1). - Meridian position (Fig. 2) CHANGING FROM THE SEATED POSITION TO THE MERIDIAN POSITION PRECAUTION Be careful to place hands in front of and behind the seating cushion (Fig. 3). - Lift the seat (Fig 3) to the upright position.
  • Page 47 5.3, 5.5, 5.6 ISO 10 240 PLUMBING WATER TANK FILLING FRESH WATER SYSTEM DRAINAGE SYSTEM DRAWINGS AT THE END OF THE MANUAL 43/70...

  • Page 48: Water Tank Filling

    WATER TANK FILLING In order to prevent any handling mistakes, never fill the water and fuel tanks at the same time. During filling, avoid handling contaminants near the fillers. Open and close the filler caps with the suitable key. Check the filler cap seals for condition during filling. .Never insert the water filling hose deep down into the system in order to prevent any over-pressure in the systems.

  • Page 49: Fresh Water System

    FRESH WATER SYSTEM PRECAUTION - Never operate the water system equipment when the tank is empty (the electric material may be damaged). - Check the water filter for condition (refer to manufacturer's instructions). DRAINAGE SYSTEM MAINTENANCE RECOMMENDATION - Visually check the water pump flow. - Check the clamps and flexible hose connections for tightness.
  • Page 51 5.3, 5.4, 5.5, 5.6 ISO 10 240 ELECTRIC SYSTEMS BATTERY SWITCH BATTERY OPERATION SHORE POWER ELECTRONICS DRAWINGS AND DIAGRAMS (AT THE END OF THE CHAPTER) 47/70...

  • Page 52: Battery Switch

    5.3.3 b); 5.5.1 ISO 10 240 BATTERY SWITCH 48/70...
  • Page 53 BATTERY SWITCH The electricity onboard is 12 V DC. Switch on by turning the battery switch. PRECAUTION Switch off the battery switch when the boat is unattended. BATTERY The a.c. generator connected to the engine is used to charge the battery. PRECAUTION Never run the engine when the circuit to charge the battery is disconnected (it may destroy the a.c.
  • Page 55 OPERATION The electrical switchboard does not require any routine maintenance. PRECAUTION Never leave the boat unattended when the electric fitting is on (except the safety equipments directly connected to the battery and protected by a circuit breaker). In case an electric appliance is not energized, check: - The main power supply (battery, battery switch).
  • Page 57 5.3, 5.4, 5.5, 5.6, ISO 10 240 MOTORISATION MOTORISATION FUEL TANKS FUEL FILTER CLOSING VALVE OF THE FUEL SYSTEM ENGINE VISIBILITY FROM THE STEERING STATION INSTRUMENT PANEL / CONTROL LEVER 53/70...

  • Page 58: Engine Installation

    5.3.3 c); 5.3.3 f); 5.3.3 k); 5.3.3 l) ISO 10 240 ENGINE INSTALLATION 1. Tank 2. Engine supply valves 3. Tank vent hole 4. Decanter filters 5. Fuel pipe and filler 54/70...

  • Page 59: Fuel Tanks

    MOTORISATION Your JEANNEAU authorized dealer is at your disposal to give you the advice you need about the possibilities of motorisation of your Cap Camarat and to carry out the installation and maintenance of your engine. FUEL TANKS FILLING Take the general precautions stated in chapter 5 about the water tank filling.
  • Page 60 FUEL VALVE 56/70...

  • Page 61: Fuel Filter

    FUEL FILTER The engine running problems may have different origins, among which dirty fuel. The injection pump may wear out if there is water in the system. The water results either from the condensation resulting from an insufficiently filled tank, or from a filler cap either not closed properly or with a damaged seal.
  • Page 62 5.3.3 c); 5.3.3 k); 5.5.1 ISO 10 240 ENGINE RECOMMENDATION Carefully read the instructions given with your boat. These instructions give detailed explanations on proper operation of the engine. PRECAUTION - Never run the engine when the boat is hauled out. - Refill before the fuel tanks have almost run dry (the fuel system may be stopped for lack of fuel).
  • Page 63 VISIBILITY FROM THE STEERING STATION The international regulations to prevent collision at sea (COLREG) and the course regulations make mandatory a permanent and proper surveillance and the respect of priority. Make sure there is no other boat on your way. The visibility from the steering station may be obstructed in the following conditions: - Engine trim angle and planing angle.
  • Page 65 5.2, 5.3, 5.4 ISO 10 240 LAUNCHING LAUNCHING RECOMMENDATIONS 61/70...

  • Page 66: Launching Recommendations

    LAUNCHING RECOMMENDATIONS A lot of skill and care is required to commission your JEANNEAU boat. The proper working of all your boat equipments in the future results from the quality of the commissioning operations. The initial launching and the first tests of the different equipments shall be carried out by your JEANNEAU dealer or agent so you can expect to enjoy the warranty in case of some equipment failure.
  • Page 67 HOISTING - Install a fore rope, a rear rope and fenders. - When hoisting, check that no device is crushed by the belts (sounder, speedometer etc.). - Mark the belt position with adhesive tape on the rubrail. The belt position will be useful during the craning for a future launching.

  • Page 69: Winter Storage

    5.3, 5.4, 5.5 ISO 10 240 WINTER STORAGE LAYING UP PROTECTION AND MAINTENANCE 65/70...
  • Page 71 LAYING UP - .Take ashore all the ship's log, the ropes that are not used for mooring, the galley utensils, supplies, clothes, the safety equipment, the house battery. - Mark again the safety equipment, check the expiration dates, have the liferaft overhauled. - Take advantage of this laying up to draw up a complete inventory of the equipment.
  • Page 73 Personal notes CHANTIERS JEANNEAU - BP 529 - 85505 LES HERBIERS cedex - FRANCE Tel. (33) 02 51 64 20 20 - Fax (33) 02 51 67 37 65 Internet : http://www.jeanneau.com(fr). 69/70...
