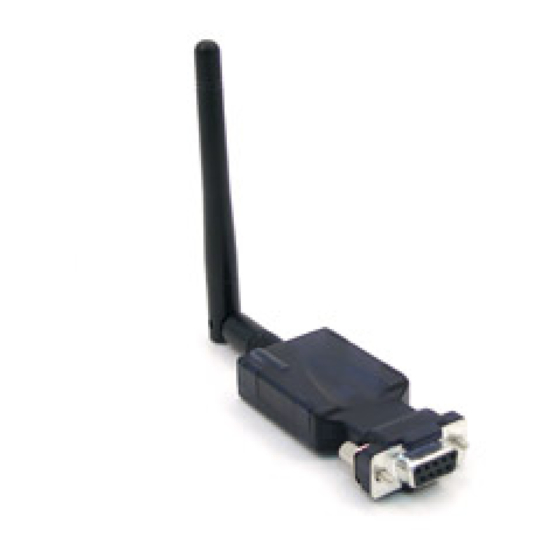

- Page 1 BTS-1000A Bluetooth to RS-232 Converter Quick Installation Guide Antaira Technologies, LLC Website: http://www.antaira.com eMail: info@antaira.com...
- Page 2 Bluetooth to RS-232 Converter 1. Plug power adapter to the converter and connect to PC’s COM1 port (COM port Selectable). 2. Run the BT1 program (BT RS232 Config Tool V1.00). 3. Click the Connect button on the BT RS232 Tool program and with a needle or paperclip, press the side button located on the Bluetooth converter to get into setup mode.
- Page 3 Bluetooth to RS-232 Converter 6. Change the parameter information then click the Write button on the BT RS232 Tool program. You can save the parameters to Bluetooth converter. 7. Turn off the power, close the BT RS232 Tool program, and power on the converter again.
- Page 4 Bluetooth to RS-232 Converter DSUB-9 PIN definition Pin 1> NC Pin 6> DTR (data output) Pin 2> TXD (data output) Pin 7> CTS (data input) Pin 3> RXD (data input) Pin 8> RTS (data output) Pin 4> DSR (data input) Pin 9>...
