ANTAIRA FCS-3312WX User Manual

ANTAIRA FCS-3312WX User Manual

Gigabit smart diagnostic wdm converter

Advertisement

Quick Links

Trademarks

Contents subject to revision without prior notice.
All trademarks remain the property of their owners.
Copyright Statement
This publication may not be reproduced as a whole or in
part, in any way whatsoever unless prior consent has been
obtained from owner.

FCC Warning

The OPTOLINX GIGABIT WDM CONVERTER has been
tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules.
These standards are designed to provide reasonable
protection against harmful interference when this device
is operated in a commercial environment. This device
generate, use, and can radiate radio frequency energy
and
may
cause
harmful
interference
communications unless installed in accordance with this
User's Guide. Operation of this device in a residential
area is likely to cause harmful interference in which cases
the user is responsible for taking appropriate remedial
action at his/her own expense.
CE Mark Warning
This is class A products. In a domestic environment this
product may cause radio interference in which case the
user will need to consider adequate preventative
methods.

1. Checklist

The carton should contain the following items:
OPTOLINX GIGABIT WDM CONVERTER
-
-
AC Power Adaptor
User's guide
-
Please notify your sales representative immediately if any
items are missing or damaged.

2. Overview

The
OPTOLINX
designed to meet the massive needs for Gigabit network
deployment. This solution allows users to extend a copper
based Gigabit network via fiber cable to a maximum
distance up to 20KM.
In addition, the OPTOLINX GIGABIT WDM CONVERTER
adopts
the
communication via a single optical fiber. The OPTOLINX
GIGABIT WDM CONVERTER provides the best cost
to
radio
effective solution to double the bandwidth of an existing
network.
The OPTOLINX GIGABIT WDM CONVERTER is fully
compliant with IEEE802.3z & 802.3ab standards. The
installation & operation procedures are simple &
straightforward. Operation status can be locally monitored
through a set of Diagnostic LED located in the front panel.
Features
-
100Base-TX and IEEE 802.3ab
10/100/1000Base-TX To 1000Base-FX
Converter
-
Standard : IEEE 802.3z, 802.3ab & 802.3u
Store and Forward Switching Mechanism
-
-
Supports 256K Byte Packet Buffer
-
Supports Loop Back and Diagnostic Test
-
Interface: 1 * RJ-45 connector
-
MDI/MDIX Auto-Crossover supported
LED:
-
-
Plug-and-Play installation
Supports SNMP proxy
-
GIGABIT
WDM CONVERTER is
WDM
technology,
enabling
Gigabit
1 *SX.LX Fiber Optic SC
Power , Status, FDX ,Speed
TP Link/ACT, FO Link /ACT

3. Installation

The installation procedure is simple and straightforward:
Attach fiber cable from the OPTOLINX GIGABIT
WDM CONVERTER SC connector to the fiber
network.
Attach a UTP cable from the OPTOLINX GIGABIT
WDM CONVERTER RJ-45 connector to the copper
network.
Connect the power adapter to the OPTOLINX
GIGABIT WDM CONVERTER and check that the
Power LED lights up. The TP Link and FO Link LED
will turn on when all the cable connections are
satisfactory.

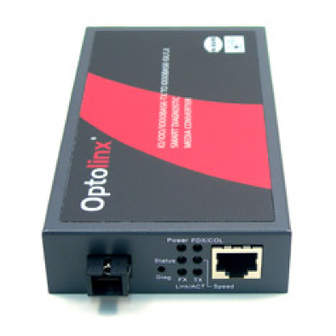

Power
FDX/COL
Status
Diag.
FX
TX
Fiber Transceiver
Link/Act
12VDC IN
Fiber
Transceiver
RJ-45 Connector

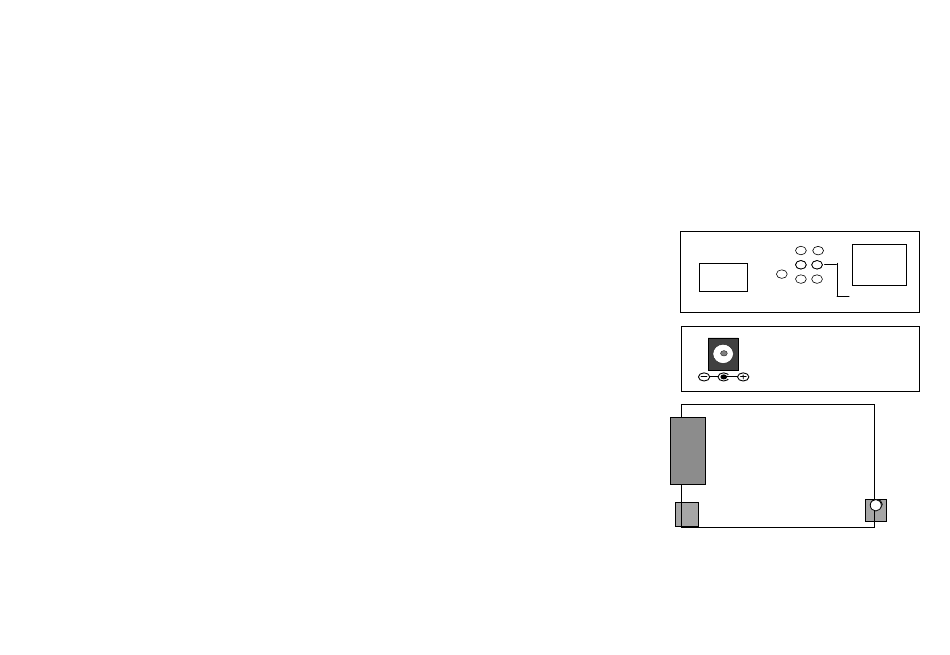

OPTOLINX GIGABIT WDM CONVERTER Front, Rear &
Top view
PN:6305X3312000XXX
Speed
