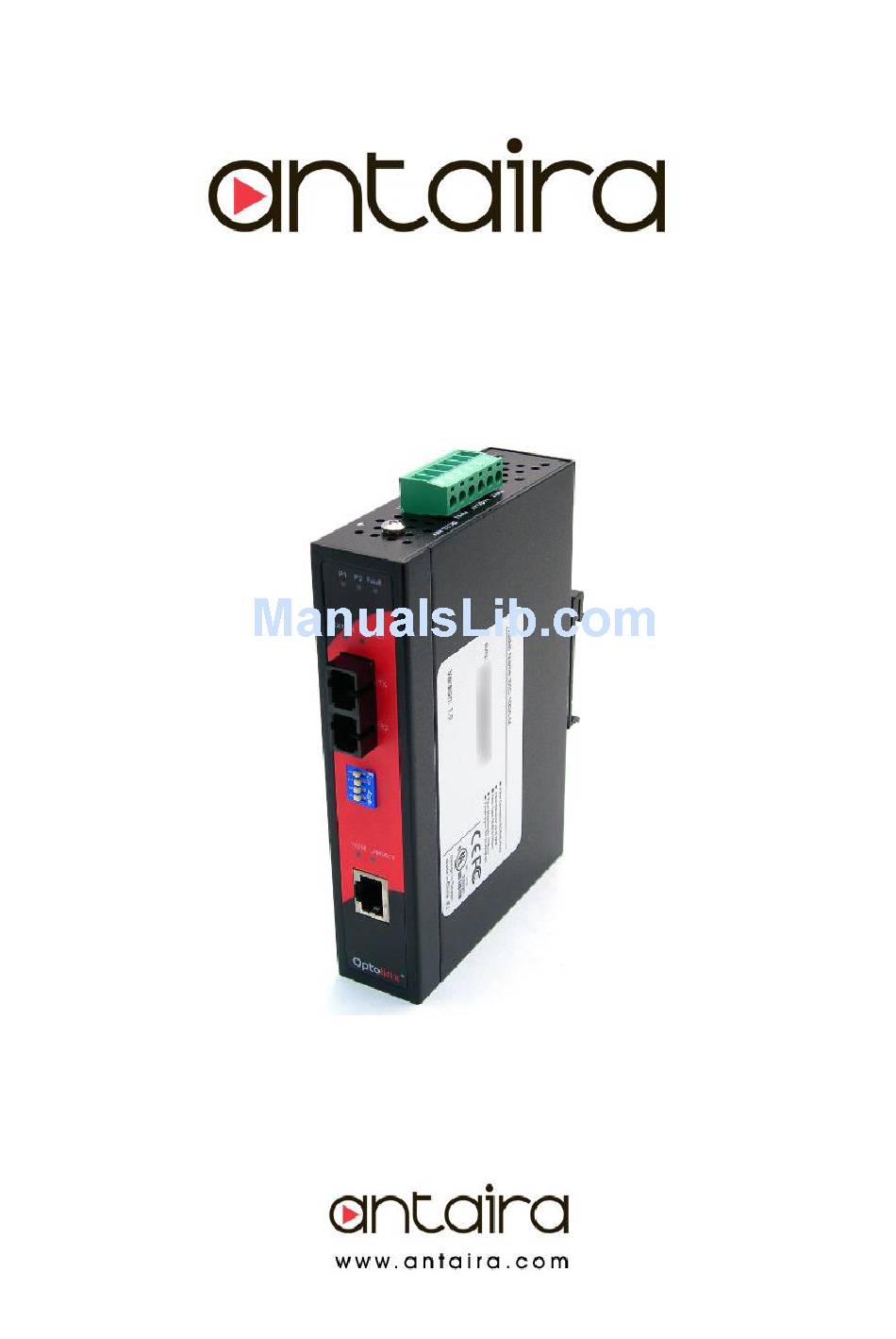

Page 1: User Manual
Antaira Technologies - Industrial Media Converter LNP-0500G Series User Manual V1.0 IMC-100A Series 10/100Tx to 100Fx Industrial Media Converter Version 1.0 User Manual... -
Page 2: Trademark Information
LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual. -
Page 3: Fcc Notice
IMC-100A-M(-T) IMC-100A-WA-M(-T) IMC-100A-S3(-T) IMC-100A-WB-M(-T) IMC-100A-S5(-T) IMC-100A-WA-S2(-T) IMC-100A-ST-M(-T) IMC-100A-WB-S2(-T) IMC-100A-ST-S3(-T) This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com). -
Page 4: Table Of Contents
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 Table of Contents 1.Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
RJ45 Ethernet connection and a fiber connection. Antaira’s IMC-100A series is IP30 rated and DIN-rail mountable. This product series supports a low voltage power input range of 12~48VDC. Also, there are two operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range... -
Page 6: Safety Precaution
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet media converter’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
IMC-100A Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-100A series: 10/100Tx to 100Fx industrial media converter. (W x D x H) is 30mm x 99mm x 140mm Figure 2.1... -
Page 8: Front Panel

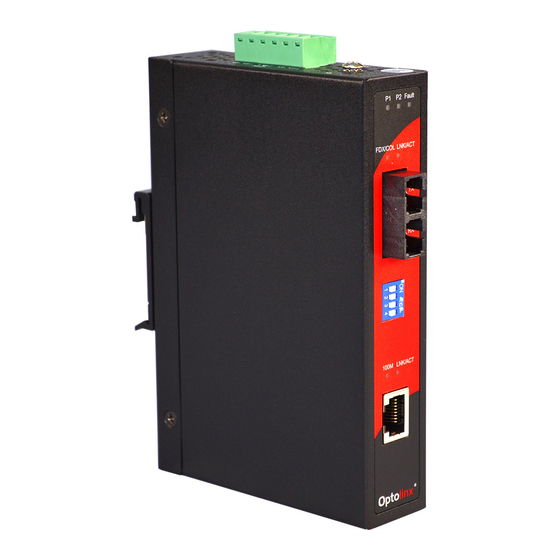

Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 2.2 Front Panel The front panel of the IMC-100A series: 10/100Tx to 100Fx industrial media converter (Figure 2.2). 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for PWR1, PWR2, and Fault LED for Fiber FDX/COL and Link/ACT Fiber Port –... -
Page 9: Led Indicators
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet media converter that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Cabling
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 The “+” and “-” signs represent the polarity of the wires that make up each wire pair. Note: The RJ45 port on this industrial Ethernet media converter supports automatic MDI operations. Users can use straight-through cables (Figure 2.4 &... -
Page 11: Wiring The Power Inputs
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6. - Page 12 Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 Figure 2.8 Wiring the Fault Alarm Contact **Note: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to...
-
Page 13: Mounting Installation
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how to install the DIN-Rail on the media converter. - Page 14 Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet media converter. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media converter.
-
Page 15: Wall Mounting
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet media converter using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws. -
Page 16: Hardware Installation
IMC-100A Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ IMC-100A (T) series: 10/100Tx to 100Fx industrial media converter. Installation Steps 1. Unpack the industrial Ethernet media converter from the original packing box. -
Page 17: Network Application
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet media converter application (Figure 5.1). Figure 5.1 Networking Application Example... -
Page 18: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 19: Technical Specifications
Antaira Technologies - Industrial Media Converter IMC-100A Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ IMC-100A series: 10/100Tx to 100Fx industrial media converter. IEEE 802.3 10Base-T 10Mbit/s Ethernet Standards IEEE 802.3u 100Base-Tx, 100Base-Fx, Fast Ethernet IEEE 802.3x... - Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
