  • Page 1 1000Base-X to 10/100/1000Base-T 802.3at PoE Media Converter User’s Manual...
  • Page 2 Antaira has made every effort to ensure that this User’s Manual is accurate; Antaira disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of Antaira.

  • Page 3: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision Antaira 1000Base-X to 10/100/1000Base-T 802.3at PoE+ Media Converter User’s Manual Rev 1.2 January, 2013 Part No. 2350-AA4480-471...

  • Page 5: Table Of Contents

    Table of Contents 1. Overview ................. 6 About the Power over Ethernet Injector ......6 2. Checklist ................7 3. Product Outlook ..............8 4. Link Fault Pass Through (LFP) .......... 10 Link Loss Carry Forward (LLCF) ........10 Link Loss Return (LLR) ............ 11 5.

  • Page 6: Overview

    Power over Ethernet Injector. Using the Power over Ethernet splitter, it can separate the digital data and the power into two outputs. The benefits of the Antaira FCU-2805P-SFP include ease of network planning, higher reliability, and cost effectiveness. When any IEEE 802.3at / 802.3af device is installed, the...

  • Page 7: Checklist

    2. Checklist Your FCU-2805P-SFP box should contain the following items: 1. 1000Base-X 10/100/1000Base-T 802.3at Media Converter x 1 2. User’s Manual x 1 3. AC-DC Adapter (Input: 52V~56V DC, 0.58A max.) x 1 4. Power Cord x 1 If any of these are missing or damaged, please contact your dealer immediately.

  • Page 8: Product Outlook

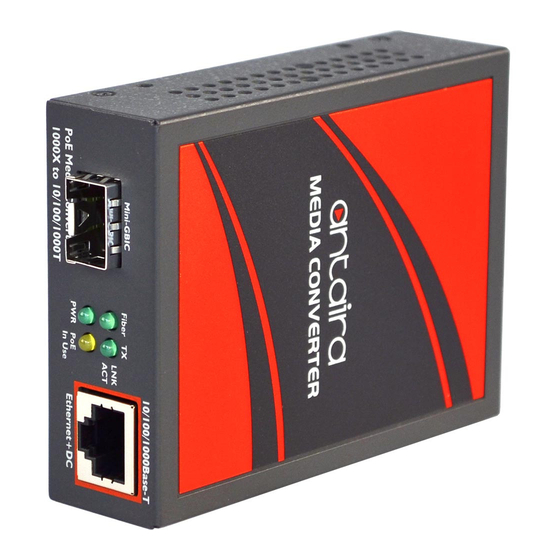

    3. Product Outlook Overview The layout of the FCU-2805P-SFP 10/100/1000Base-T 52V~56V DC Mini-GBIC Fiber TX PoE Media Converter Ethernet+DC In Use 1000X to 10/100/1000T Figure 3-1: Product Outlook of the FCU-2805P-SFP...
  • Page 9 Left View There is one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one fiber-optic connector (vary by model) and four LED indicators. 10/100/1000Base-T Mini-GBIC Fiber TX PoE Media Converter Ethernet+DC In Use 1000X to 10/100/1000T Figure 3-2: Left View of FCU-2805P-SFP Right View One DIP switch for Link Fault Pass Through (LFP) features an, “ON”...

  • Page 10: Link Fault Pass Through (Lfp)

    4. Link Fault Pass Through (LFP) function includes Link Fault Pass Through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators to a link media problem and provide an efficient solution to monitor the net. The DIP Switch allows you to disable or enable the LFP function.

  • Page 11: Link Loss Return (Llr)

    If the connection breaks, the FCU-2805P-SFP link loss forwards to the Switch / Hub and generates a trap to the management station. The administrator can then determine the source of the problem. Management Switch/Hub Media Media Switch/Hub Management Station w/SNMP Converter Converter w/SNMP...
  • Page 12 If one of the optical conductors is down (as shown in the diagram box below), the converter with LLR function will return a no-link condition to its link partner. With the LLCF function also enabled, the no-link condition is carried forward to the switch/hub where a trap is generated to the management station, and the administrator can then determine the source of the loss.

  • Page 13: Installing The Converter

    5. Installing the Converter Please follow these steps to install the PoE+ Media converter: 1. Turn off the power of the device / station in a network to which the FCU-2805P-SFP will be attached. 2. Ensure that there is no activity in the network. 3.
  • Page 14 1000Base-SX/LX SFP transceiver 10/100/1000Base-T 1000Base-SX/LX LC Fiber Figure 5-1: FCU-2805P-SFP Installation RJ-45 / STP, UTP Cat5 / 5e / 6, straight / cross- over cable is accepted. Please refer to section 9 for more about the wiring Note distance of your TP, Optic-fiber networks.

  • Page 15: Poe Function

    6. PoE Function FCU-2805P-SFP and the IEEE 802.3at / 802.3af Injector / Splitter equipment installation: Before your installation, we recommend that you check your network environment. If there are any IEEE 802.3at / 802.3af devices needed to be powered on, the FCU-2805P-SFP can provide you a way to supply power for this Ethernet device conveniently and easily.
  • Page 16 For places that prove difficult to find a power inlet, the FCU-2805P-SFP provides the easiest way to power your Ethernet devices with an Internet Camera or PoE Wireless Access Point installed in the wild range place. 550m~120km 100 meters FCU-2805P-SFP Data Data Power...

  • Page 17: Led Indication

    7. LED Indication System Color Function Green Light Indicates the device is powered. 10/100/1000Base-T Port Color Function Indicates that the PoE+ Media Blink Converter is actively sending or receiving data over that port. LNK/ACT Green Indicates that the port is link Light up at 10/100/1000Mbps.

  • Page 18: Cable Connection Parameter

    8. Cable Connection Parameter The limitations are as below: Duplex Connection Limitation (max.) Twisted Pair Node to Node Half / Full 100 meters Node to Switch/Hub Multi-Mode Converters Node to Node MM Half 412 meters Node to Switch Node to Node MM Full 220 / 550 meters Node to Switch...

  • Page 19: Fcu-2805P-Sfp Technical Specifications

    9. FCU-2805P-SFP Technical Specifications The FCU-2805P-SFP comes with the following standard features: • Standard: IEEE 802.3 802.3u 802.3ab, 10/100/1000Base-T and IEEE 802.3at / 802.3af Power over Ethernet standard • Connectors: • 1 x RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568 w/ PoE •...

  • Page 20: Device's Rj-45 Pin Assignments

    APPENDIX A A.1 Device's RJ-45 Pin Assignments 1000Mbps, 1000Base-T RJ-45 Connector pin assignment Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment MDI Media Dependant MDI-X Media Dependant Contact Interface...

  • Page 21: Cable Pin Assignment

    A.2 RJ-45 Cable Pin Assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 1 2 3 4 5 6 7 8 SIDE 1 1 = White/Orange...

  • Page 22: Fiber Optical Cable Connection Parameter

    A.3 Fiber Optical Cable Connection Parameter The wiring details are as below: Fiber Optical Patch Cables: Standard Fiber Type Cable Specification 1000Base-SX (850nm) Multi-mode 50/125μm or 62.5/125μm Multi-mode 50/125μm or 62.5/125μm 1000Base-LX (1300nm) Single-mode 9/125μm...
