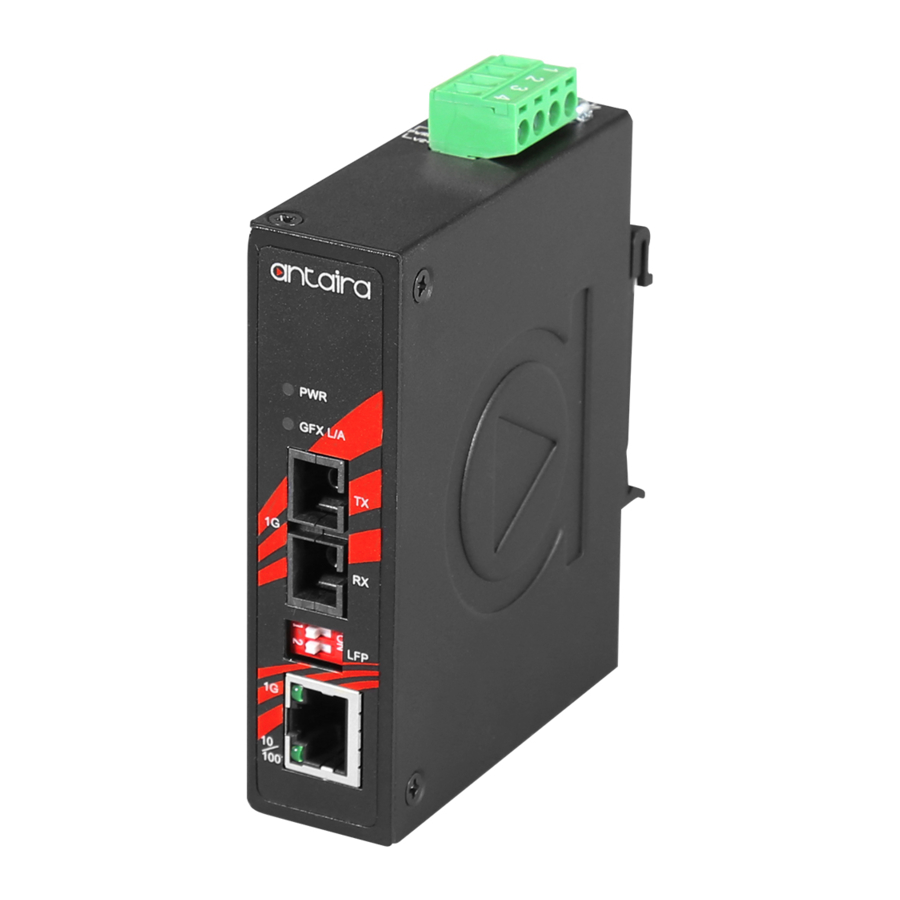

Compact industrial gigabit ethernet media converter, with 10/100/1000tx to 1000fx sc/st connector, 12~48vdc power input
Hide thumbs Also See for IMC-C1000 Series:

Advertisement

Quick Links

IMC-C1000-XX Series
Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000Tx to 1000Fx
SC/ST Connector, 12~48VDC Power Input
Hardware Manual
Version 1.2
(May 2021)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMC-C1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ANTAIRA IMC-C1000 Series

  • Page 1 IMC-C1000-XX Series Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000Tx to 1000Fx SC/ST Connector, 12~48VDC Power Input Hardware Manual Version 1.2 (May 2021)
  • Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
  • Page 3 Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
  • Page 4 ● IMC-C1000-ST-M ● IMC-C1000-ST-M-T ● IMC-C1000-ST-S1 ● IMC-C1000-ST-S1-T ● IMC-C1000-WA-S1 ● IMC-C1000-WA-S1-T ● IMC-C1000-WB-S1 IMC-C1000-WB-S1-T ● This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
  • Page 5: Table Of Contents

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators...
  • Page 6: Overview

    IMC-C1000-XX Series - Hardware Manual - v1.2 1 Overview Antaira Technologies’ IMC-C1000-XX series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST and SC connectors depending on model. There are models that support Multimode and Single-Mode to support applications with a variety of fiber distances.
  • Page 7: Safety Precaution

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 DC cable- 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
  • Page 8: Hardware Description

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 26mm x 95mm x 75mm...
  • Page 9: Front View Panel

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 2.2 Front View Panel Figure 2.2, below, shows the top panel of the product series: Figure 2.2 - Top View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the IMC-C1000-XX series media converter that is equipped with one 4-pin removal terminal block connector for dual DC power inputs (12~48VDC).
  • Page 10: Led Indicators

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial media converter that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
  • Page 11: Ethernet Ports

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 2.6 Ethernet Ports ● RJ45 Ports RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling.
  • Page 12: Cabling

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
  • Page 13: Grounding Note

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Figure 2.5 - Power Terminal Block Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.6. Figure 2.6 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs.
  • Page 14 Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique...
  • Page 15: Mounting Installation

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial media converter from the factory. If the DIN-Rail is not on the industrial media converter, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.
  • Page 16: Wall Mounting

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial media converter using the wall mounting bracket as shown below in Figure 3.4.
  • Page 17 Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Figure 3.4 - Remove DIN-Rail bracket Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
  • Page 18: Hardware Installation

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial media converter: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur.
  • Page 19: Maintenance And Service

    Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot...
  • Page 20: Technical Specifications

    Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber...
  • Page 21 Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 Power Requirement Input Voltage 12~48VDC Redundant Input Power Connection 1 removable 4-contact terminal block Overload Current Protection Present Reverse Polarity Protection Present System Power Consumption 2.2 Watts Environmental Limits STD: -10°C to 70°C...
  • Page 22 Antaira Technologies - Industrial Media Converters IMC-C1000-XX Series - Hardware Manual - v1.2 www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
