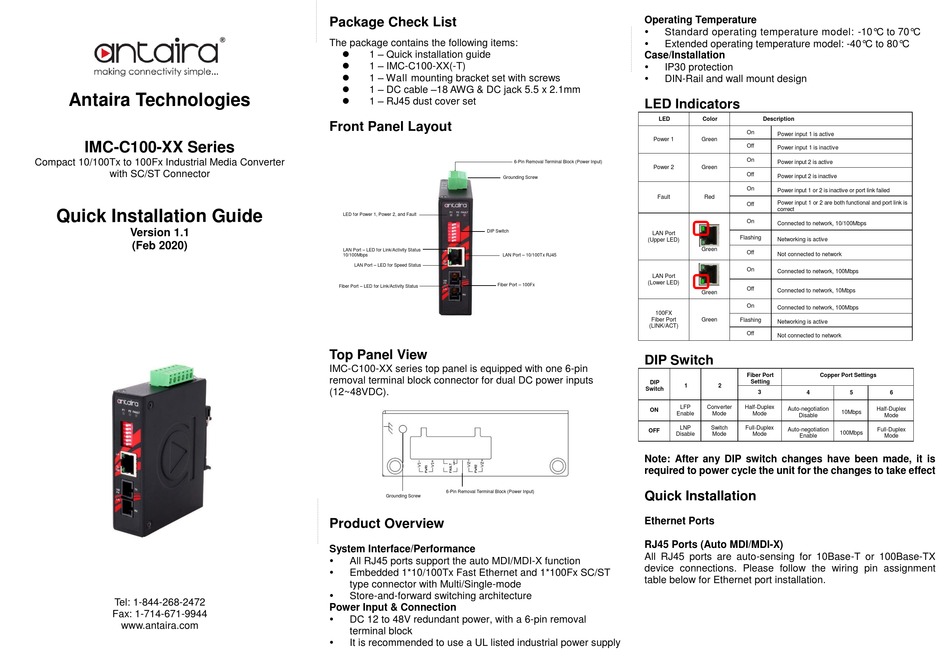

ANTAIRA IMC-C100 Series Quick Installation Manual

Antaira Technologies
IMC-C100-XX Series
Compact 10/100Tx to 100Fx Industrial Media Converter
with SC/ST Connector
Quick Installation Guide
Version 1.1
(Feb 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
 1 – Quick installation guide
 1 – IMC-C100-XX(-T)
 1 – Wall mounting bracket set with screws
 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
 1 – RJ45 dust cover set

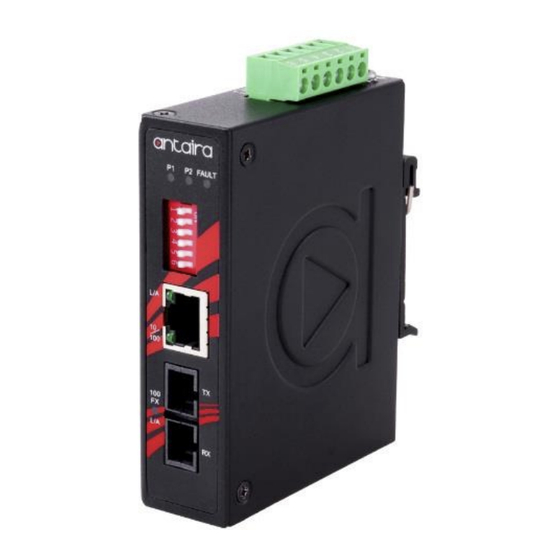

Front Panel Layout
Grounding Screw
LED for Power 1, Power 2, and Fault
DIP Switch
LAN Port – LED for Link/Activity Status
LAN Port – 10/100Tx RJ45
10/100Mbps
LAN Port – LED for Speed Status
Fiber Port – 100Fx
Fiber Port – LED for Link/Activity Status
Top Panel View
IMC-C100-XX series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Grounding Screw
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 1*10/100Tx Fast Ethernet and 1*100Fx SC/ST
type connector with Multi/Single-mode

Store-and-forward switching architecture
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 80°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
LED
Power 1
6-Pin Removal Terminal Block (Power Input)
Power 2
Fault
LAN Port
(Upper LED)
LAN Port
(Lower LED)
100FX
Fiber Port
(LINK/ACT)
DIP Switch
DIP
1
Switch
LFP
ON
Enable
LNP
OFF
Disable
Note: After any DIP switch changes have been made, it is
required to power cycle the unit for the changes to take effect
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDI-X)
All RJ45 ports are auto-sensing for 10Base-T or 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive or port link failed
Red
Power input 1 or 2 are both functional and port link is
Off
correct
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 100Mbps
Off
Connected to network, 10Mbps
Green
On
Connected to network, 100Mbps
Green Flashing
Networking is active
Off
Not connected to network
Fiber Port Copper Port Settings
Setting
2
3 4 5
Converter Half-Duplex
Auto-negotiation Half-Duplex
10Mbps
Mode Mode
Disable
Switch Full-Duplex
Auto-negotiation Full-Duplex
100Mbps
Mode Mode
Enable
6
Mode
Mode
