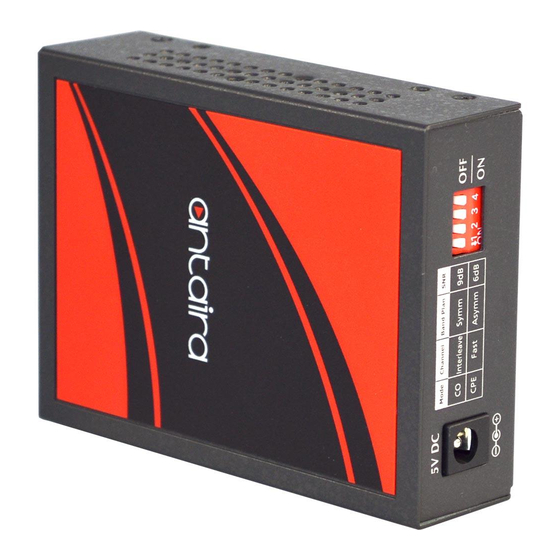

ANTAIRA EVC-3001 User Manual

Ethernet extender over vdsl2
Hide thumbs
Table of Contents

Advertisement

Quick Links

ANTAIRA TECHNOLOGIES
Ethernet Extender over VDSL2
Media Converter
EVC-3001 & EVC-3010
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVC-3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANTAIRA EVC-3001

Summary of Contents for ANTAIRA EVC-3001

  • Page 1 ANTAIRA TECHNOLOGIES Ethernet Extender over VDSL2 Media Converter EVC-3001 & EVC-3010 User’s Manual...
  • Page 2 Antaira has made every effort to ensure that this User’s Manual is accurate; Antaira disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision Antaira Ethernet over VDSL2 Converter User’s Manual For Models: EVC-3001 & EVC-3010 Rev 1.1 (Dec 2013)

  • Page 5: Table Of Contents

    2.2 The Rear Panel ............16 3. Installation ..............19 3.1 Install Ethernet over VDSL2 Converter ....... 19 3.1 EVC-3001 / EVC-3010 LAN to LAN Connection .... 20 3.2 Connecting EVC-3001 / EVC-3010 ......21 3.3 Connecting EVC-3010 ..........23 4.

  • Page 6: Introduction

    (EVC-3010). The EVC-3001 / EVC-3010 can be set to Central Office (CO) or Customer Premises Equipment (CPE) mode via a DIP switch. The performance of EVC-3001 (RJ11) will up to 100/55Mbps for asymmetric data rate within 200m and up to...
  • Page 7 Slave device (CPE) must connect to Master device (CO) through the telephone wire or coaxial cable. It is not allow connecting like Master to Master or Slave to Slave. To define the EVC-3001 / Note EVC-3010 to CO or CPE, please refer to section...
  • Page 8 Multi-LAN Connection Existing Telephone Network Main office/PBX, Telco CO, wire closet Ethernet over VDSL and Telephone Network EVC-3001 LAN1 Main office/PBX, Telco CO, wire closet LAN2 Internet Router IP Camera VDSL2 Coaxial CAM Viewer VDSL2 Ethernet VDSL2 Switch ECV-3011 CPE+...
  • Page 9 Ethernet over VDSL and Telephone Network Up to 1.6km Main office/PBX, Telco CO, wire closet EVC-3001 EVC-3001 LAN1 LAN2 EVC-3001 CPE CAM Viewer IP Camera EVC-3001 CO Coaxial Cable VDSL2 Up to 3.0km 100Base-TX UTP Telephone wire VDSL2 Coaxial Cable...

  • Page 10: Key Features

    DMT (Discrete Multi-Tone) line coding Half Duplex Back Pressure and IEEE 802.3x Full Duplex Pause Frame Flow Control Built-in POTS splitter to share voice and data - (EVC-3001) Voice and data communication can be shared on the existing telephone wire simultaneously - (EVC-3001) Support up to 1536 bytes packet size, 802.1Q VLAN tag...

  • Page 11: Specifications

    1.4 Specifications Product EVC-3001 EVC-3010 Hardware Specification 1 x RJ-45, 1 x RJ-45, 10/100Tx Auto-negotiation Auto-negotiation Auto-MDI/MDI-X Auto-MDI/MDI-X 1 x RJ-11, female Phone 1 x BNC, female Ports VDSL Jack connector 1 x RJ-11, Built-in PHONE splitters for POTS connection DIP Switch 4 Position Dip Switch •...
  • Page 12 Asymmetric Mode 200m -> 100/55Mbps 200m->100/65Mbps 400m -> 90/50Mbps 400m->100/64Mbps 600m -> 70/40Mbps 600m->100/59Mbps 800m -> 60/25Mbps 800m->100/53Mbps 1000m -> 45/15Mbps 1000m->94/44Mbps 1200m -> 35/10Mbps 1200m->84/36Mbps 1400m -> 30/6Mbps 1400m->74/28Mbps 1600m -> 25/4Mbps 1600m->66/19Mbps 1800m->60/14Mbps 2000m->44/15Mbps 2200m->35/12Mbps 2400m->32/10Mbps 2600m->29/8Mbps 2800m->27/6Mbps Performance* (Down 3000m->25/5Mbps Stream /...
  • Page 13 Storage Temperature -10~70 Degree C Operating Humidity 10% to 90%, relative humidity, non-condensing Storage Humidity 10% to 90%, relative humidity, non-condensing Standard Conformance Regulation FCC Part 15 Class A, CE Compliance IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Full Duplex Pause Frame Flow Control Standards ITU-T Compliance...

  • Page 14: Hardware Description

    2. Hardware Description EVC-3001 The EVC-3001 provides 2 RJ-11 ports for voice connection (like telephone) and for network line connection. EVC-3010 The EVC-3010 provides 1 BNC connector and supports 50 or 75 ohm cable with distance up to 3.0km. The EVC-3001 / EVC-3010 provide 1 RJ-45 port with two...
  • Page 15 EVC-3010 Front Panel Figure 2-2: EVC-3010 Front Panel 2.1.1 LED Indicators for EVC-3001 and EVC-3010 The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. System Color Function Light Power ON...

  • Page 16: The Rear Panel

    10Mbps. 2.2 The Rear Panel The rear panel of the Ethernet over VDSL2 Converter is shown as below. EVC-3001 / EVC-3010 Rear Panel 1 2 3 4 Figure 2-3: EVC-3001 / EVC-3010 2.2.1 DIP Switch Mode The Ethernet over VDSL2 Converter provides 4 selective transmission modes.
  • Page 17 summary table of transmission setting; bandwidth and distance extensibility tested for AWG 24 (0.5mm) twisted-pair without noise and cross talk. DIP-1 DIP-2 DIP-3 DIP-4 Mode Channel Band Plan Interleave Symm ON (default) Fast Asymm CO / CPE ◊ CO (Central Office) – the Master device mode, usually the CO device will be located at the data center of ISP or enterprise to link to the backbone.
  • Page 18 Please power off the Ethernet Over VDSL2 Converter before making any transmission mode adjustment. 2.2.2 DC Power Jack EVC-3001 / 3010 require 5V DC power input. It will conform to the bundled AC adapter. 1. The device is a power-required device, it means, it will not work till it is powered.

  • Page 19: Installation

    There is some key limitation on the Ethernet over VDSL2 Converter. Please check the following items: n EVC-3001: The device is used for Point-to-Point connec- tion only (Master device to Slave device) and has equipped with 2 RJ-11 connectors for VDSL port. One for voice device connection (like telephone) and the other one for network link connection.

  • Page 20: Evc-3001 / Evc-3010 Lan To Lan Connection

    3.1 EVC-3001 / EVC-3010 LAN to LAN Connection Two sets of the Ethernet over VDSL2 Converters could be used to link two local Area networks that are located in different place. Through the normal telephone line, it could setup a...

  • Page 21: Connecting Evc-3001 / Evc-3010

    Refer to the following procedures to setup the EVC-3001 to a standalone PC. 1. Set the EVC-3001 to be CO or CPE mode from the DIP switch at the rear panel. 2. Power on the EVC-3001 by connecting its power source.

  • Page 22: Connecting Multiple Pcs To An Ethernet Lan

    Refer to the following procedures to setup the EVC-3001 to an Ethernet LAN. 1. Set the EVC-3001 to be CO or CPE mode from the DIP switch at the rear panel. 2. Power on the EVC-3001 by connecting its power source.

  • Page 23: Connecting Evc-3010

    3.3 Connecting EVC-3010 3.3.1 Connecting Standalone IP Device Refer to the following procedures to setup the EVC-3010 to a standalone PC. 1. Set the EVC-3010 to be CO or CPE mode from the DIP switch at the rear panel. 2. Power on the EVC-3010 by connecting its power source. 3.
  • Page 24 3.3.2 Connecting Multiple PCs to an Ethernet LAN Refer to the following procedures to setup the EVC-3010 to an Ethernet LAN. 1. Set the EVC-3010 to be CO or CPE mode from the DIP switch at the rear panel. 2. Power on the EVC-3010 by connecting its power source. 3.

  • Page 25: Power Information

    4. Power Information The power jack of EVC-3001 / EVC-3010 is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Antaira’s Media Chassis. Please keep the AC-DC adapter as spare parts when the EVC-3001 / EVC-3010 are installed to a Media Chassis.

  • Page 26: Troubleshooting Symptom

    3.0km. Please also try to adjust the DIP switch of EVC-3001 / EVC-3010 to other SNR mode. 2. Please note you must use one EVC-3001 / EVC-3010 with CO mode and the other EVC-3001 / EVC-3010 with CPE mode, connect to each other to make it work.

  • Page 27: Faq

    A3: In order to guarantee the stability and better quality of network, so the suggested distance within 1.6 kilo meter is the best for EVC-3001 and 3.0kilometer for EVC-3010. Q4: What is the best date rate for EVC-3001 / EVC-3010? A4: The best...
  • Page 28 The information contained in this document is the property of Antaira Technologies, LLC and is supplied for the sole purpose of operation and maintenance of products of Antaira Technologies, LLC No part of this publication is to be used for any other...
