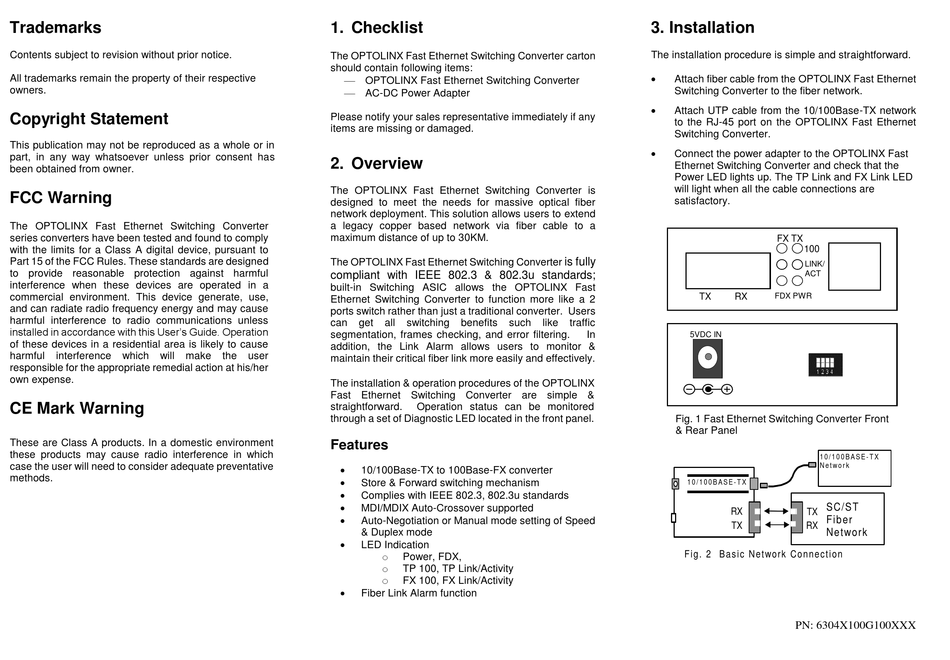

ANTAIRA FCU-100SX User Manual

Trademarks
Contents subject to revision without prior notice.
All trademarks remain the property of their respective
owners.
Copyright Statement
This publication may not be reproduced as a whole or in
part, in any way whatsoever unless prior consent has
been obtained from owner.

FCC Warning

The OPTOLINX Fast Ethernet Switching Converter
series converters have been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These standards are designed
to provide reasonable protection against harmful
interference when these devices are operated in a
commercial environment. This device generate, use,
and can radiate radio frequency energy and may cause
harmful interference to radio communications unless
installed in accordance with this User's Guide. Operation
of these devices in a residential area is likely to cause
harmful interference which will make
responsible for the appropriate remedial action at his/her
own expense.
CE Mark Warning
These are Class A products. In a domestic environment
these products may cause radio interference in which
case the user will need to consider adequate preventative
methods.
1. Checklist
The OPTOLINX Fast Ethernet Switching Converter carton
should contain following items:
 OPTOLINX Fast Ethernet Switching Converter
 AC-DC Power Adapter
Please notify your sales representative immediately if any
items are missing or damaged.
2. Overview
The OPTOLINX Fast Ethernet Switching Converter is
designed to meet the needs for massive optical fiber
network deployment. This solution allows users to extend
a legacy copper based network via fiber cable to a
maximum distance of up to 30KM.
The OPTOLINX Fast Ethernet Switching Converter
compliant with IEEE 802.3 & 802.3u standards;
built-in Switching ASIC allows the OPTOLINX Fast
Ethernet Switching Converter to function more like a 2
ports switch rather than just a traditional converter. Users
can get all
segmentation, frames checking, and error filtering.
addition, the Link Alarm allows users to monitor &
the user
maintain their critical fiber link more easily and effectively.
The installation & operation procedures of the OPTOLINX
Fast Ethernet Switching Converter are simple &
straightforward.
through a set of Diagnostic LED located in the front panel.
Features

10/100Base-TX to 100Base-FX converter

Store & Forward switching mechanism

Complies with IEEE 802.3, 802.3u standards

MDI/MDIX Auto-Crossover supported

Auto-Negotiation or Manual mode setting of Speed
& Duplex mode

LED Indication
o
o
o

Fiber Link Alarm function
is fully
switching benefits such like traffic
Operation status can be monitored
Power, FDX,
TP 100, TP Link/Activity
FX 100, FX Link/Activity
3. Installation
The installation procedure is simple and straightforward.

Attach fiber cable from the OPTOLINX Fast Ethernet
Switching Converter to the fiber network.

Attach UTP cable from the 10/100Base-TX network
to the RJ-45 port on the OPTOLINX Fast Ethernet
Switching Converter.

Connect the power adapter to the OPTOLINX Fast
Ethernet Switching Converter and check that the
Power LED lights up. The TP Link and FX Link LED
will light when all the cable connections are
satisfactory.
TX RX
RX
In
5VDC IN
Fig. 1 Fast Ethernet Switching Converter Front
& Rear Panel
1 0 / 1 0 0 B A S E - T X
RX
TX
Fi g. 2 B as i c Net work Connec t i on
FX TX
100
LINK/
ACT
FDX PWR
1 0 / 1 0 0 B A S E - T X
N e t w o r k
SC/ST
TX
Fiber
RX
Network
PN: 6304X100G100XXX
